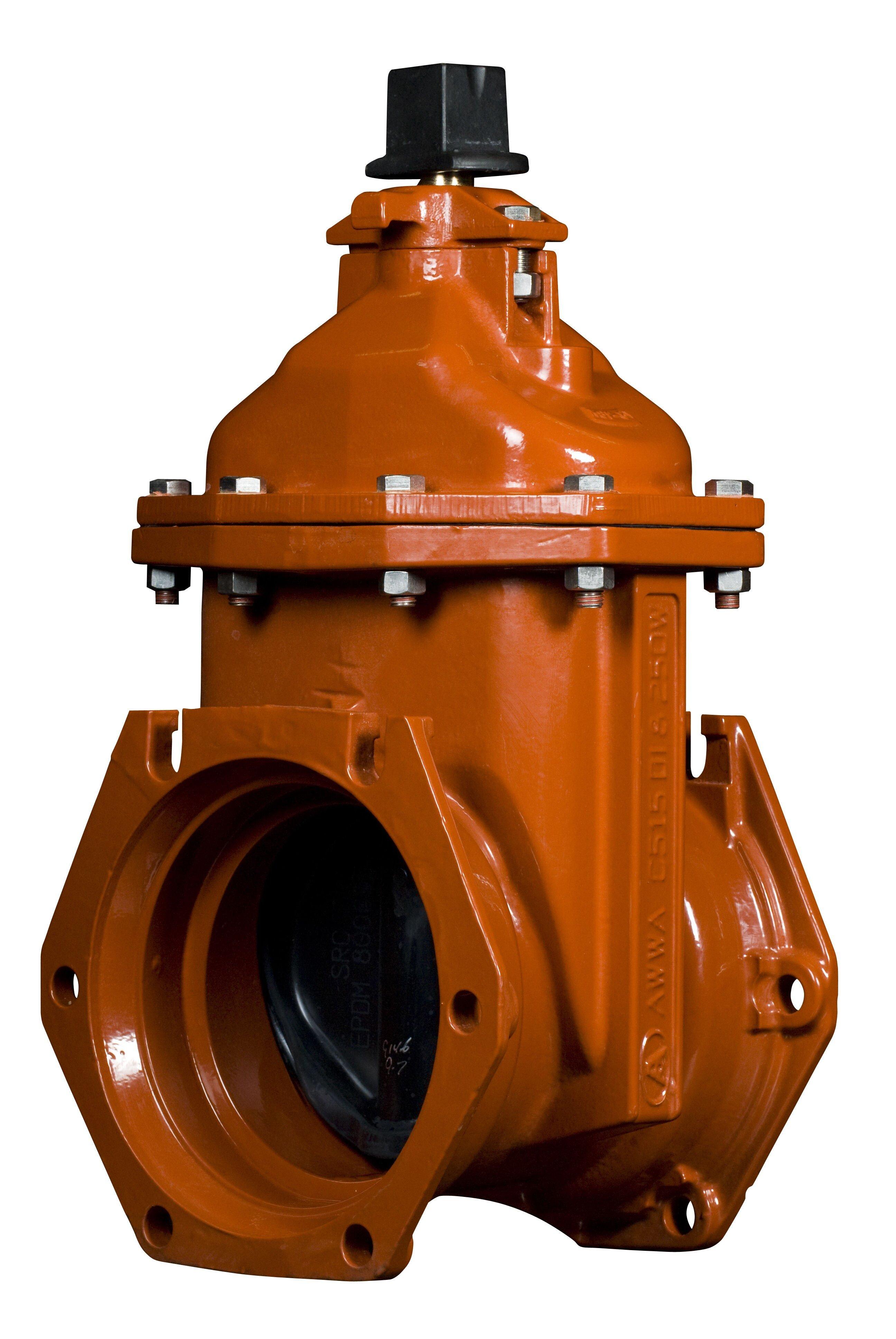

6 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
American Flow Control
2500 Series 6 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5 Pallet: 20
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
American Flow Control
2500 Series
6 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve
2506ALAFMM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Products sold in select areas only. Please contact your local branch for availability in your area
- Fusion-bonded epoxy coating complies with ANSI/AWWA C550
- 4"<ENDASH/>12" valves have a fully rubber-encapsulated wedge
- Triple O-ring stem seals
- Thrust washer
Dimensions & Measurements
End Connection 1
Mechanical Joint
End Connection 2
Mechanical Joint
End Connections
Mechanical Joint x Mechanical Joint
Length
10-1/2 in
Pressure Class
125#
Pressure - Maximum
250 psig
Valve Size
6 in
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
2500 Series
Ductile Iron Pipe Type
Ductile Iron Mechanical Joint Pipe
Material
Ductile Iron
Valve Body Style
Open Left
Valve Bonnet Type
Bolted
Valve Disc Material
Ductile Iron
Valve Operator
Operating Nut
Valve Port Opening
Valve Stem
Valve Seat Material
Metal
Valve Stem
Non-rising
Valve Type
Resilient Wedge Gate Valve
Warranty & Product Information
ANSI
ANSI A21.11, ANSI A21.53, ANSI 372, ANSI 61, ANSI C515, ANSI C550
Application
Fire, Irrigation, Potable Water, Sewage
ASME
ASME B16.1, ASME B16.4
ASTM
ASTM A-536, ASTM B-584, ASTM B-763
AWWA
AWWA C-111, AWWA C-515, AWWA C-550
FM Approved
Yes
MSS
MSS SP-45, MSS SP-113
NSF
NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
Yes
UPC
674630504735
