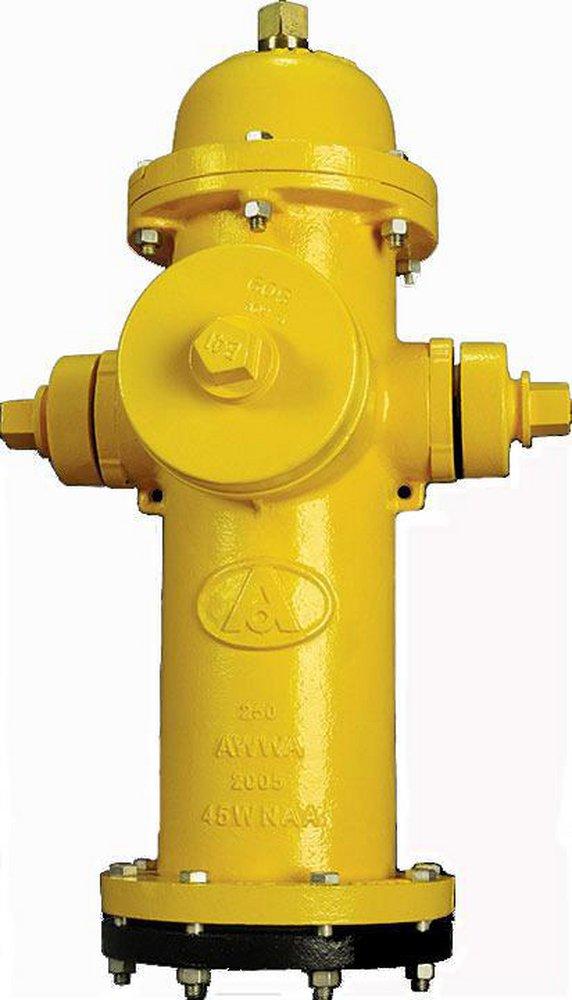

5 ft. Mechanical Joint 6 in. Assembled Fire Hydrant
American Flow Control
American Darling® B-84-B 5 ft. Mechanical Joint 6 in. Assembled Fire Hydrant
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 3 Pallet: 9
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
American Flow Control
American Darling® B-84-B
5 ft. Mechanical Joint 6 in. Assembled Fire Hydrant
B84B LA OL 5'0 6 MJ 5 STR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Products sold in select areas only. Please contact your local branch for availability in your area
- Valve open left
- Size and shape of operating nut and nut on cap, threading on nozzles and caps and the direction of opening made to specification
- Valve top, valve bottom and base coated with fusion bonded epoxy coating
- Upper barrel is furnished with an e-coat primer and a two-part polyurethane top coat for durability, gloss and color retention
- Ductile iron upper barrel, lower barrel, base and housing
- Easy 360° rotation of nozzle section
- 250 psig rated working pressure
- Tested at 500 psig
- Stainless steel bolting below grade
Dimensions & Measurements
Depth of Trench
5 ft
End Connection 1
Mechanical Joint
End Connection 2
Mechanical Joint
End Connections
Mechanical Joint
Fitting Size 1
6 in
Fitting Size 2
6 in
Fitting Sizes
6 in
Height
30-1/2 in
Pressure - Maximum
500 psig
Valve Size
5-1/4 in
Weight
395 lb
Characteristics & Features
Collection
American Darling® B-84-B
Material
Ductile Iron
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI C502
AWWA
AWWA C-502
FM Approved
Yes
NSF Certified
Yes
UL Listed
Yes
