This product requires certification to purchase.

Elongated Wall Mount Toilet with Top Spud in White

American Standard

Afwall® Elongated Wall Mount Toilet with Top Spud in White

  • Fast #
  • Part #A2257101020
  • Item #4669606
  • Manufacturer Part #2257101.020
4.4 out of 5 Customer Rating
Brand image

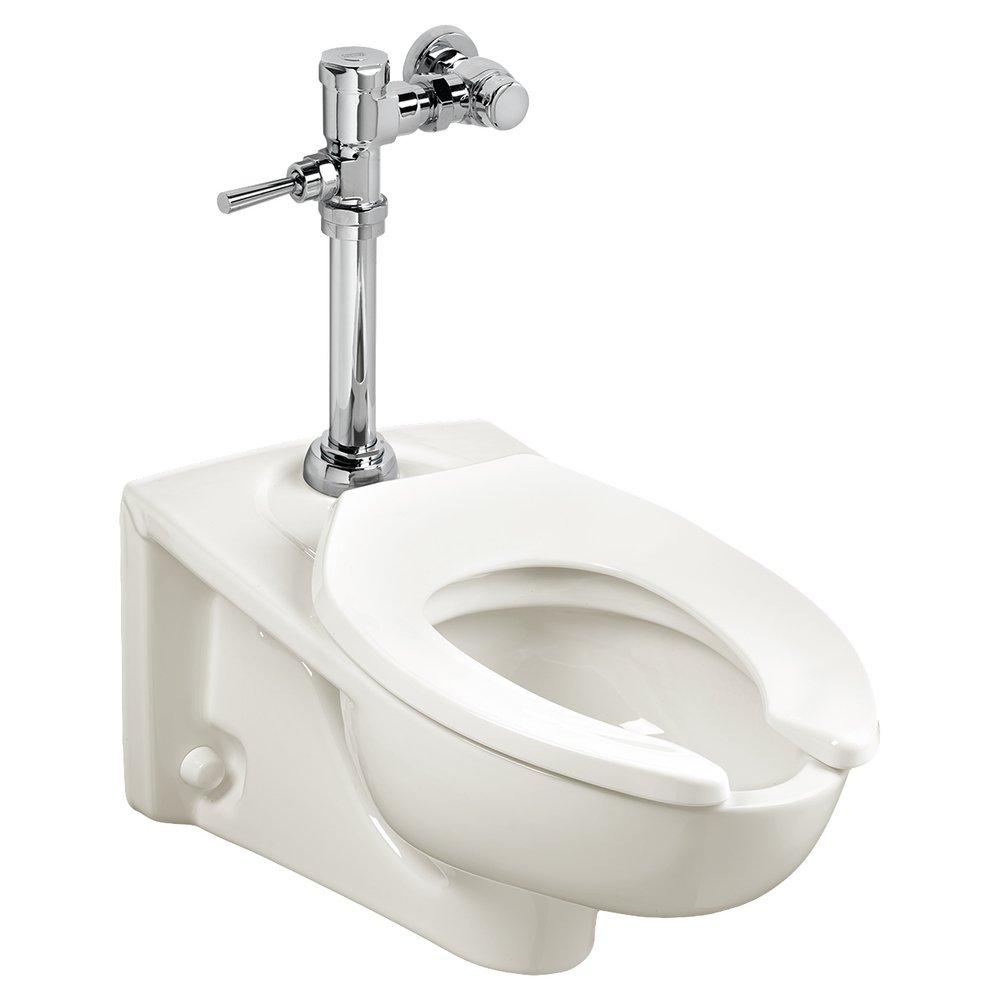

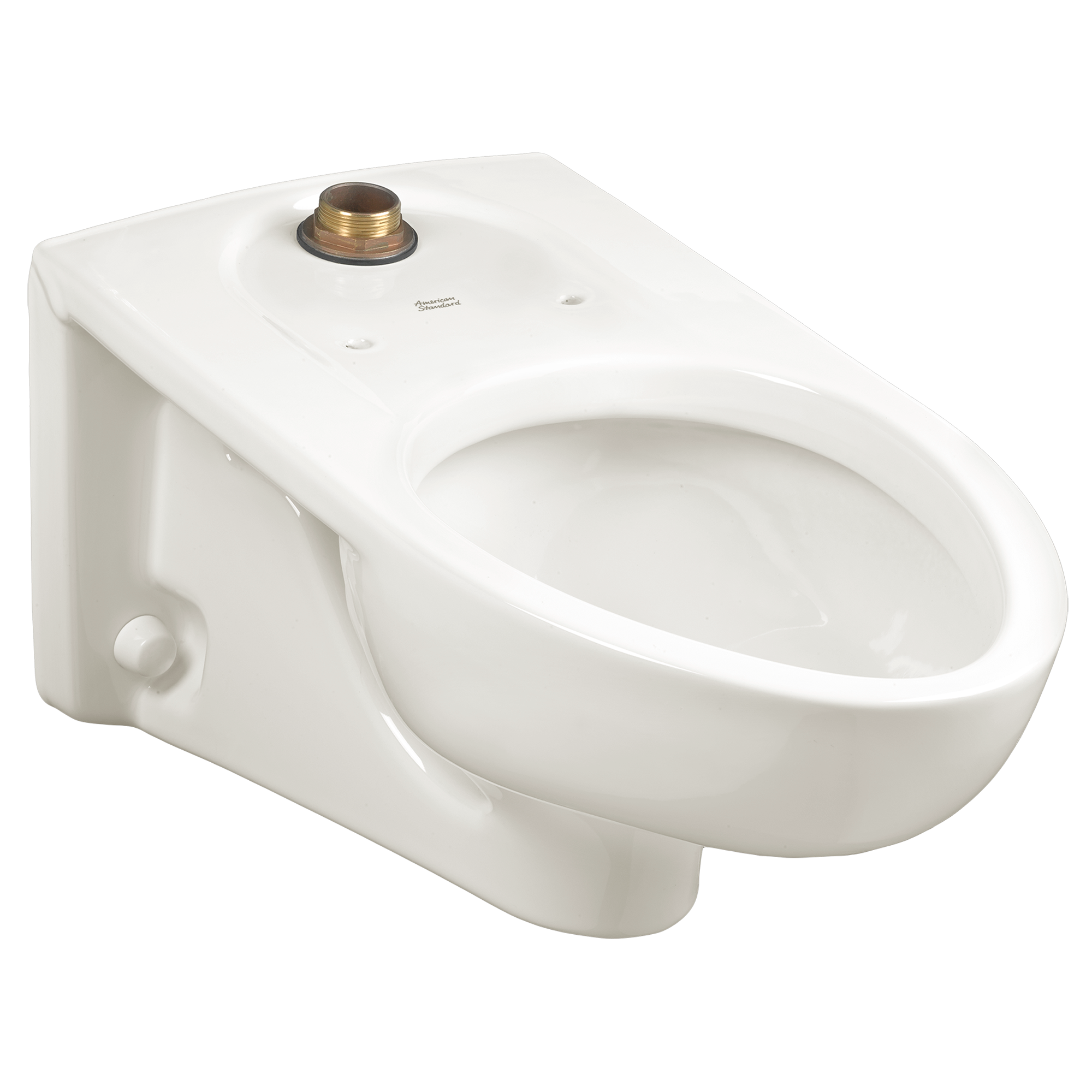

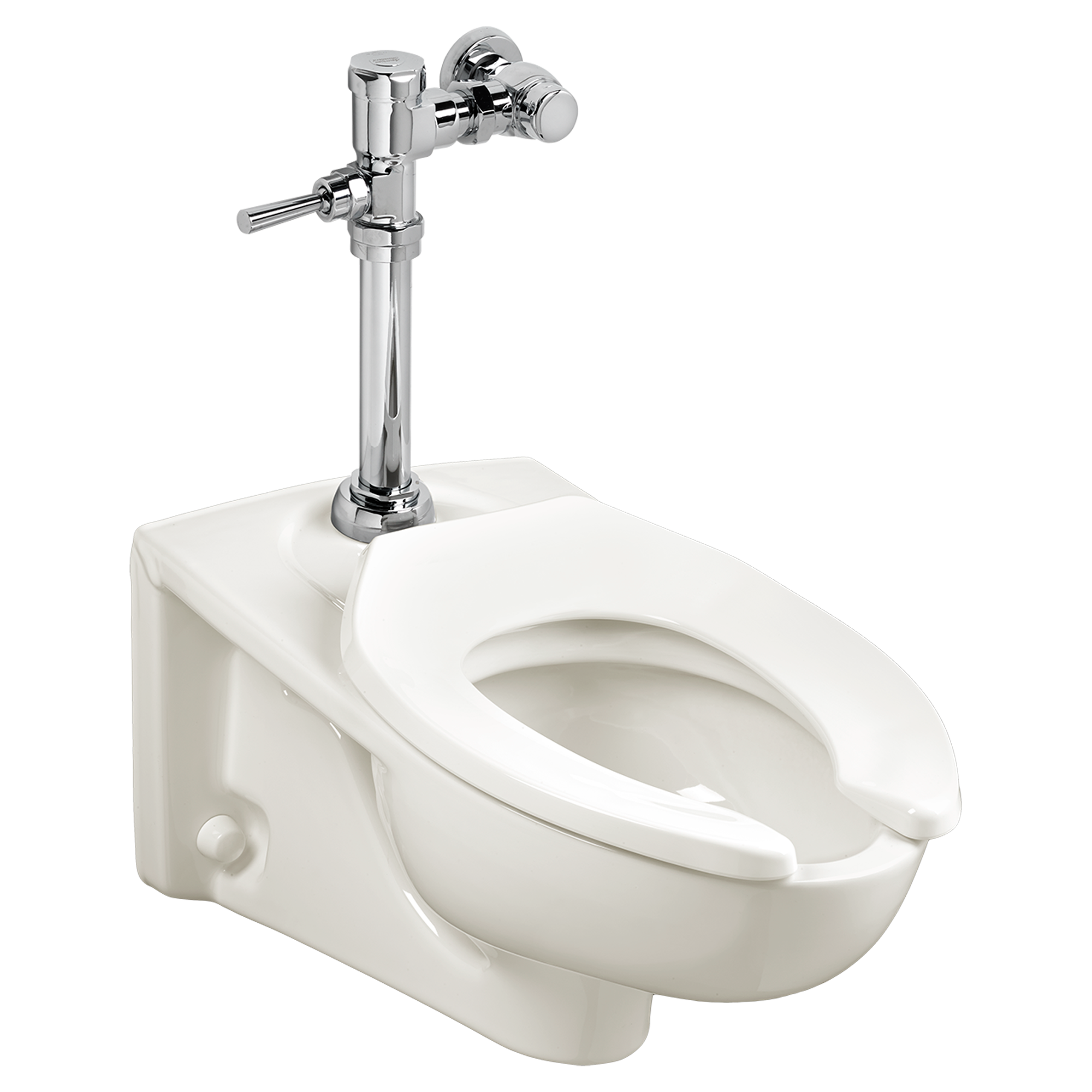

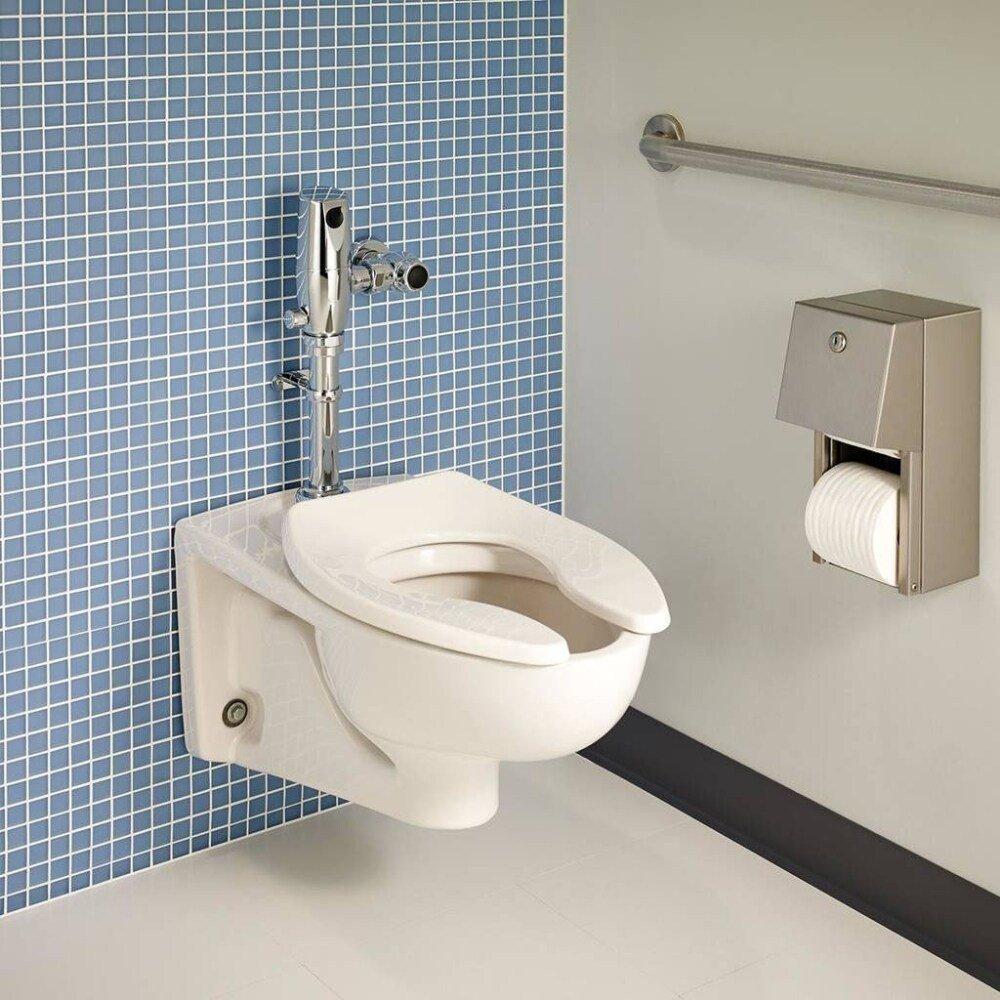

American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard White 1.6 gpf Elongated Wall Mount Toilet
American Standard

Afwall® Elongated Wall Mount Toilet with Top Spud in White

  • Fast #
  • Part #A2257101020
  • Item #4669606
  • Manufacturer Part #2257101.020
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 9 Pallet: 18
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available
    15  in  Hilliard, OH
    Available in 6 stores nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Wall-mounted flushometer valve toilet
  • Conventional glaze
  • High Efficiency, Low Consumption. Operates in the range of 1.1 Gpf to 1.6 Gpf (4.2 Lpf to 6.0 Lpf)
  • Meets definition of HET (High Efficiency Toilet) when used with a high efficiency flush valve (1.1 Gpf - 1.6 Gpf or 1.28/1.1 Gpf dual flush)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 Gpf - 1.6 Gpf
  • Condensation channel
  • Concealed tramway design
  • 1-1/2 in inlet spud
  • Fully-glazed 2-1/8 in tramway
  • 10 in x 12 in water surface area
Product Information
  • Requires Certification

  • ADA Compliant

  • Green

Dimensions & Measurements
Bowl Height Range
15-16 in
Depth
26 in
Height
13-1/2 in
Length
26 in
Spud Size
1-1/2 in
Toilet Bowl Height
15 in
Toilet Bowl Length
26 in
Toilet Bowl Width
14 in
Toilet Rough-In
13-1/8 in
Width
14 in
Included Components
Toilet Seat Included
No
Characteristics & Features
Bowl Only
Yes
Bowl Shape
Elongated
Collection
Afwall®
Color Finish Category
Whites
Color Finish Name
White
Flush Type
Gravity
Material
Vitreous China
Spud Location
Top
Tank Only
No
Toilet/Urinal Outlet
Rear
Toilet Installation
Wall Mount
Toilet Type
Bowl
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2, ANSI A117.1
Application
Commercial
ASME
ASME A112.19.2
BAA Compliant
No
CARB OTC LEED Compliant
No
CEC Compliant
For Sale in CA
CSA Certified
CSA B45.1
EPA Compliant
No
GSA Approved
No
IAPMO Listed
No
MA Approved
No
NSF Certified
Yes
WaterSense Labeled
Yes
UPC
791556025110
