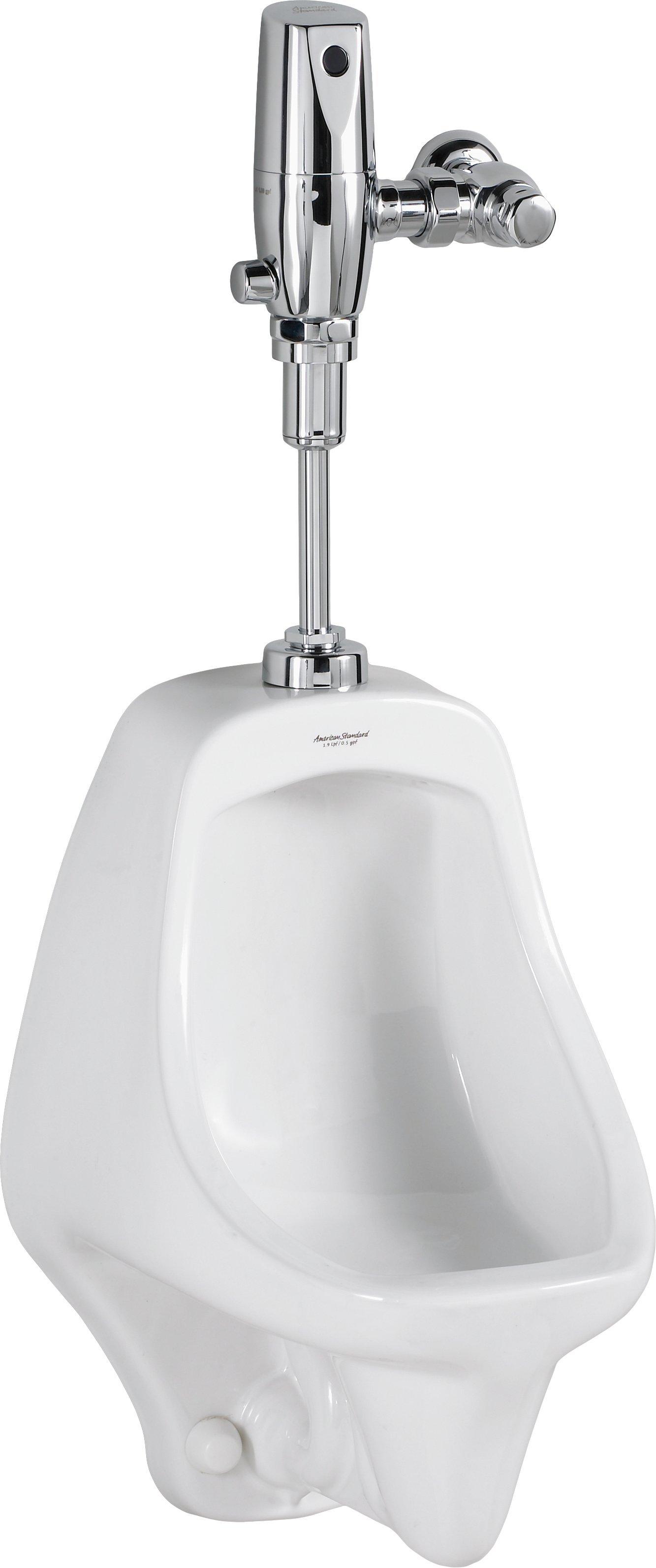

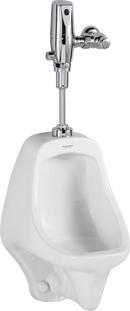

0.5 gpf Siphon Jet Urinal in White
American Standard
Allbrook® 0.5 gpf Siphon Jet Urinal in White
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 18
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Allbrook®
0.5 gpf Siphon Jet Urinal in White
6550001.020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High Efficiency operates in the range of 0.5 Gpf to 1.0 Gpf
- Flushing rim
- Siphon jet flush action
- Wall hanger
- Fixture only
- Recommended working pressure – between 20 psi at valve when flushing and 80 psi static
- ADA compliant
- WaterSense Certified
- Meets ANSI flush requirements at 0.5 gpf and 1.0 gpf
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
Depth
14-15/16 in
End Connection 1
NPT
End Connections
NPT
Flow Rate
0.5 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
21-1/2 in
Inlet Spud Size
3/4 in
Length
14-5/16 in
Outlet Spud Size
2 in
Width
14 in
Characteristics & Features
Collection
Allbrook®
Color Finish Category
Whites
Color Finish Name
White
Flush Type
Siphon Jet
Inlet Spud Location
Top
Material
Vitreous China
Urinal Installation
Wall Mount
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2, ANSI A117.1
ASME
ASME A112.19.2
CEC Compliant
Not for Sale in CA
CSA Certified
CSA B45.1
IAPMO Listed
Yes
NSF Certified
Yes
WaterSense Labeled
Yes
UPC
791556016446
