Wash Out Urinal in White
American Standard

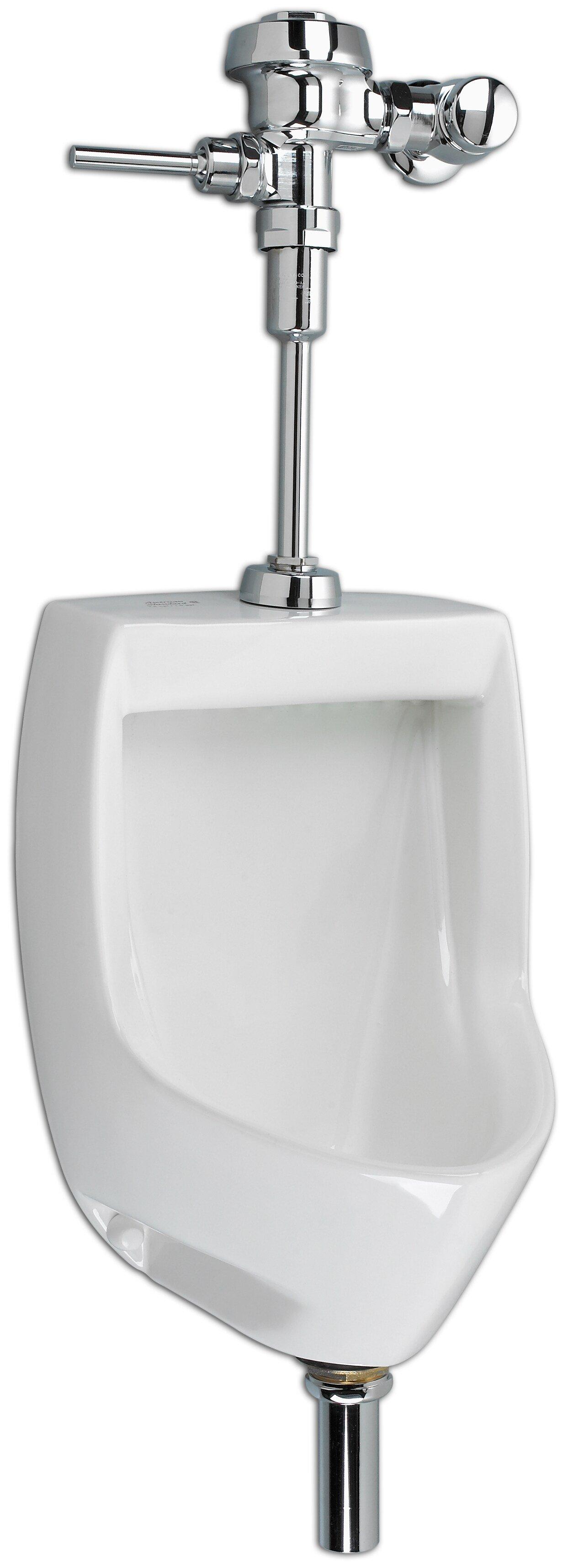

Maybrook® Wash Out Urinal in White
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 21Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Maybrook®
Wash Out Urinal in White
6581001.020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Ultra High Efficiency, Low Consumption. Operates in the range of 0.125Gpf to 1.0Gpf
- Flushing rim
- Washout flush action
- Integral strainer
- Wall hanger
- Fixture only
- Recommended working pressure – between 20 psi at valve when flushing and 80 psi static
- WaterSense Certified
- Meets ANSI flush requirements at 0.125 to 1.0 gpf
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
Depth
12-3/4 in
End Connection 1
NPT
End Connections
NPT
Flow Rate
0.125 gpf/1.0 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
18 in
Inlet Spud Size
3/4 in
Length
12-3/4 in
Outlet Spud Size
1-1/2 in
Width
12-3/4 in
Characteristics & Features
Collection
Maybrook®
Color Finish Category
Whites
Color Finish Name
White
Flush Type
Washdown
Inlet Spud Location
Top
Material
Vitreous China
Outlet Spud Location
Top
Urinal Installation
Wall Mount
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2
ASME
ASME A112.19.2
BAA Compliant
No
CARB OTC LEED Compliant
No
CEC Compliant
For Sale in CA
CSA Certified
CSA B45.1
GSA Approved
No
IAPMO Listed
Yes
NSF Certified
Yes
WaterSense Labeled
Yes
UPC
791556083837
