This product requires certification to purchase.

0.125 gpf Wall Mount Battery Powered High-Efficiency Urinal in White

American Standard

Pintbrook™ 0.125 gpf Wall Mount Battery Powered High-Efficiency Urinal in White

  • Fast #
  • Part #AMS6002525020
  • Item #12306854
  • Manufacturer Part #6002525.020
5 out of 5 Customer Rating
Brand image

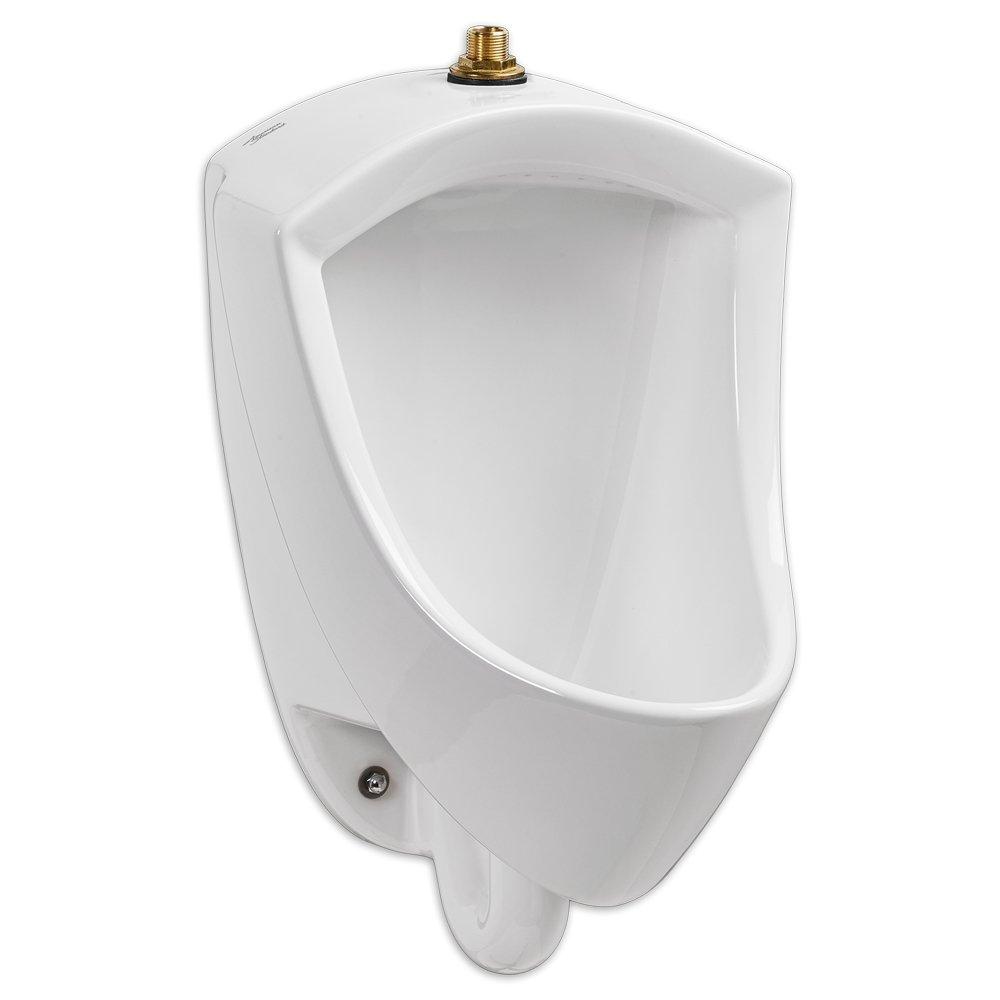

California Energy Commission Registered PINTBROOK 0.125 GPF SYS SELECT DC FV
California Energy Commission Registered PINTBROOK 0.125 GPF SYS SELECT DC FV
American Standard

Pintbrook™ 0.125 gpf Wall Mount Battery Powered High-Efficiency Urinal in White

  • Fast #
  • Part #AMS6002525020
  • Item #12306854
  • Manufacturer Part #6002525.020
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

This product includes

Washdown Urinal with Top Spud in White

American Standard Washdown Urinal with Top Spud in White

Part #A6002001020

0.125 gpf Piston Sensor Urinal Flush Valve

American Standard 0.125 gpf Piston Sensor Urinal Flush Valve

Part #A6063013002

  • The Pintbrook Urinal System from American Standard includes a battery-operated Selectronic flush valve, with a factory-installed CR-P2 lithium battery that boasts an impressive 4-year life span at 4,000 flushes per month. This well-designed, modern urinal is contoured to prevent splashes. A high-efficiency flush valve includes a flush rate of 0.125 gallons per flush to help save water, and the efficient no-maintenance required design has no diaphragm to change and no filter screen to clean.
  • Made in Mexico (USMCA compliant)
  • Powerful washdown flushing action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 8-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Requires Certification

  • ADA Compliant

  • Green

Documents

EPD

Specifications

ADA Compliant:
Yes
ANSI:
ANSI A117.1, ANSI A112.19.2
BAA Compliant:
No
CARB OTC LEED Compliant:
No
CEC Compliant:
For Sale in CA
Collection:
Pintbrook™
Color Finish Category:
Whites
Color Finish Name:
White
Dual Flush:
No
End Connection 1:
FNPT
End Connections:
FNPT
Flow Rate:
0.125 gpf
Flow Rate Range:
0.125 gpf - 1.0 gpf
Flush Type:
Washdown
GSA Approved:
No
IAPMO Listed:
Yes
Inlet Spud Location:
Top
Inlet Spud Size:
3/4 in
Material:
Vitreous China
NSF Certified:
Yes
Outlet Spud Location:
Rear
Outlet Spud Size:
2 in
UPC:
791556093355
WaterSense Labeled:
Yes
Width:
14-15/16 in
