Washdown Urinal with Top Spud in White
American Standard

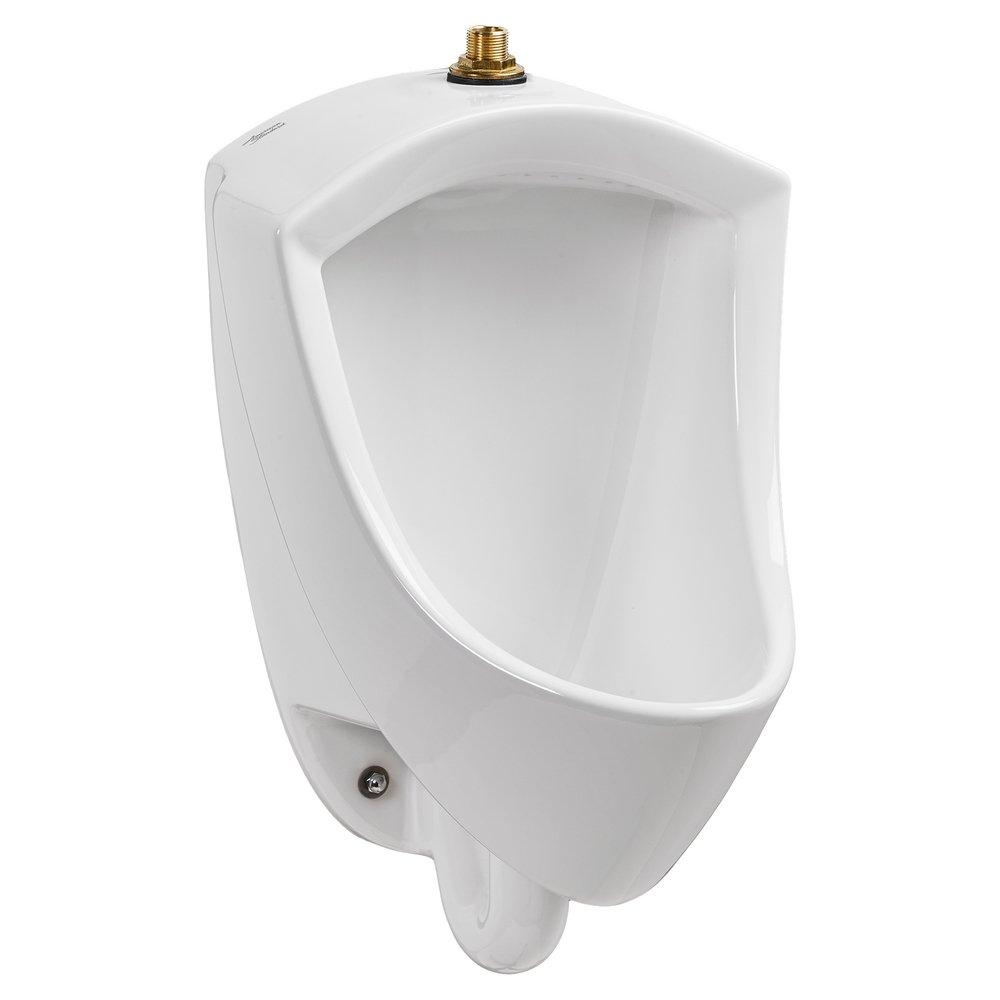

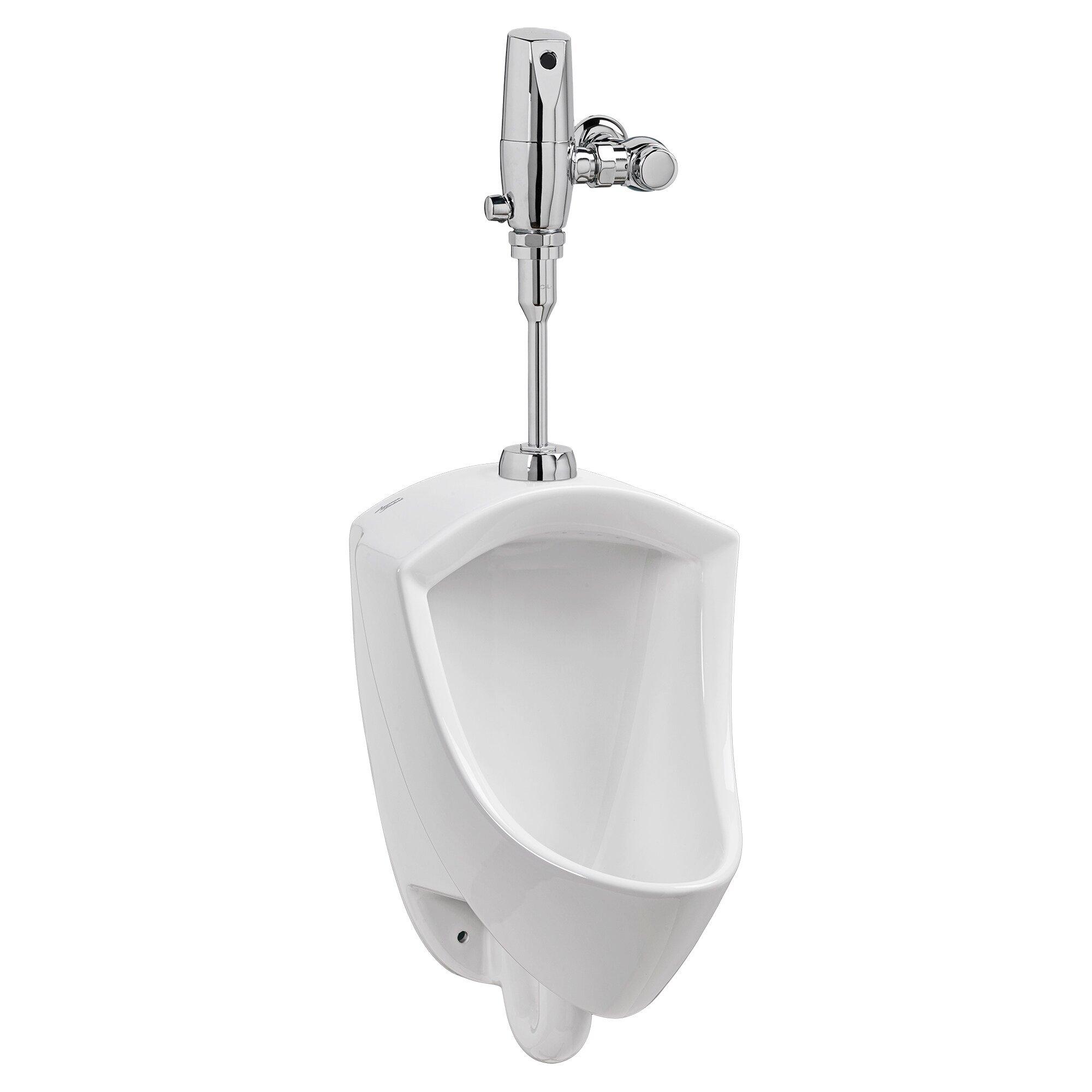

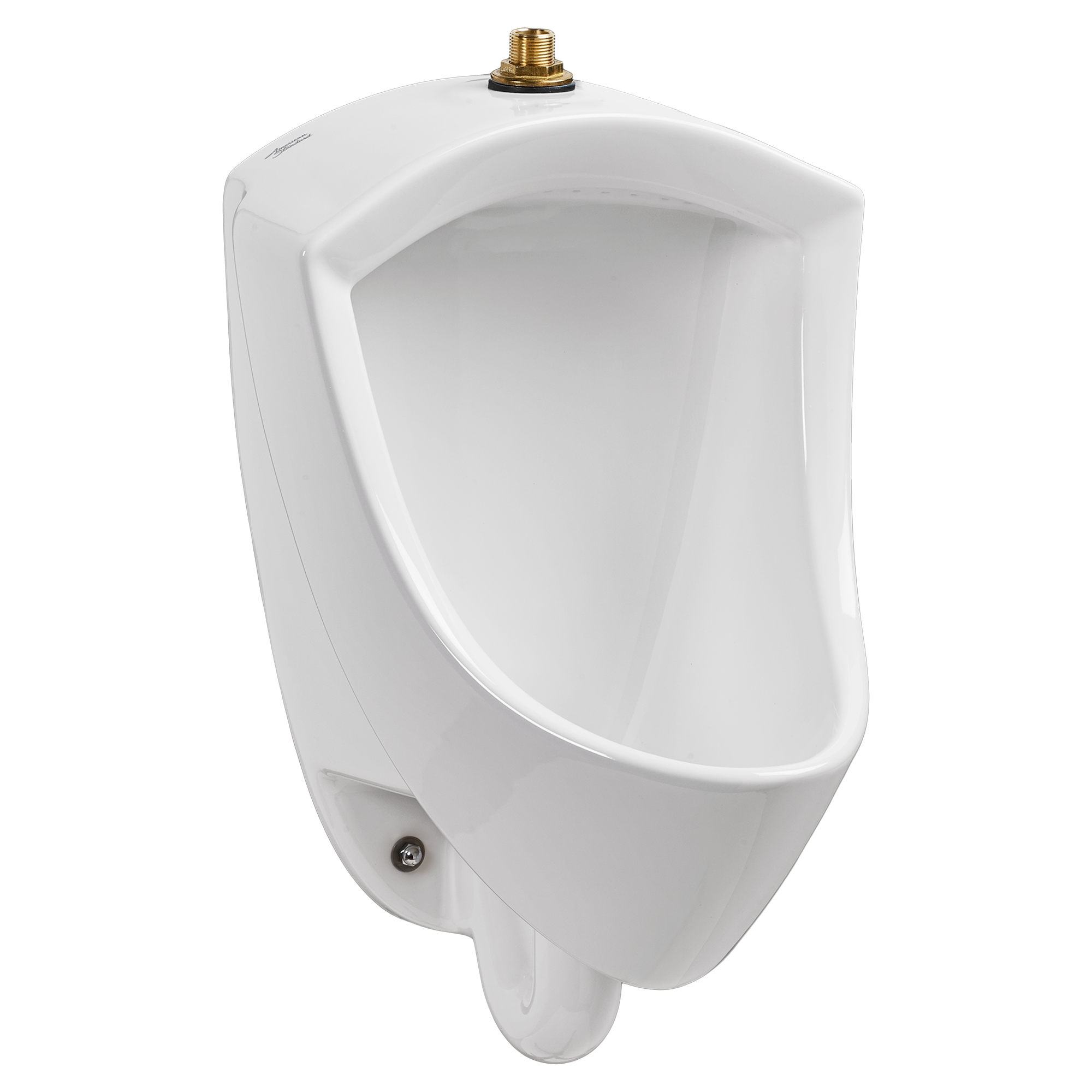

Pintbrook™ Washdown Urinal with Top Spud in White
Package Quantity Info:
Each: 1 Pallet: 15Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Pintbrook™
Washdown Urinal with Top Spud in White
6002001.020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Vitreous china
- Powerful wash-down action
- Optimized chinaware contours provide superior splash protection
- Includes wall hangers included for easy installation
- High efficiency operates in the range of 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf)
- Inlet top spud: 3/4"
- Outlet connection threaded 2" NPT
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
Depth
14-7/16 in
End Connection 1
FNPT
End Connections
FNPT
Flow Rate
0.125 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
22-5/8 in
Inlet Spud Size
3/4 in
Length
14-15/16 in
Number of Pieces
1 Piece
Width
14-5/16 in
Characteristics & Features
Collection
Pintbrook™
Color Finish Category
Whites
Color Finish Name
White
Dual Flush
No
Flush Type
Washdown
Inlet Spud Location
Top
Material
Vitreous China
Outlet Spud Location
Rear
Urinal Installation
Wall Mount
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A112.19.2, ANSI A117.1
ASME
ASME A112.19.2 2008
BAA Compliant
No
CARB OTC LEED Compliant
No
CEC Compliant
For Sale in CA
CSA Certified
CSA B45.1 2008
GSA Approved
No
IAPMO Listed
Yes
NSF Certified
No
UL Listed
No
WaterSense Labeled
Yes
UPC
791556091016
