1.0 gpf Piston Sensor Urinal Flush Valve
American Standard

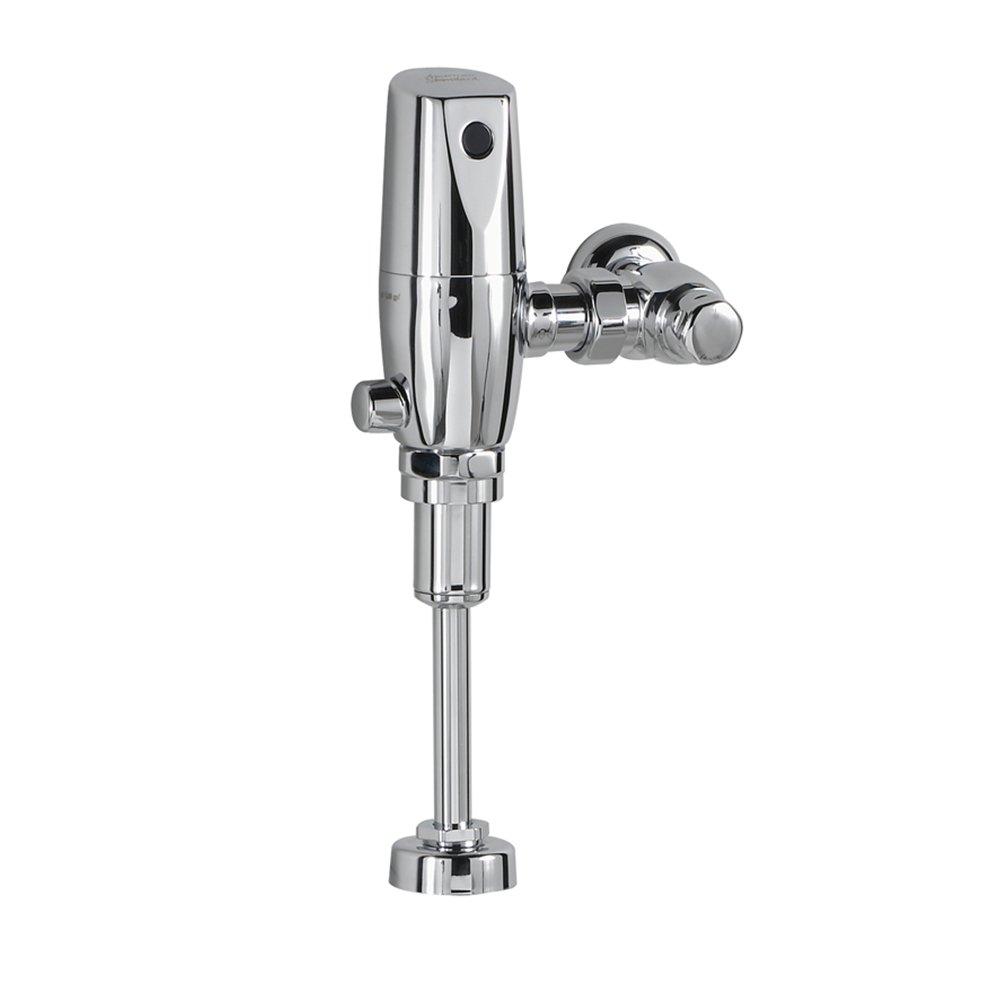

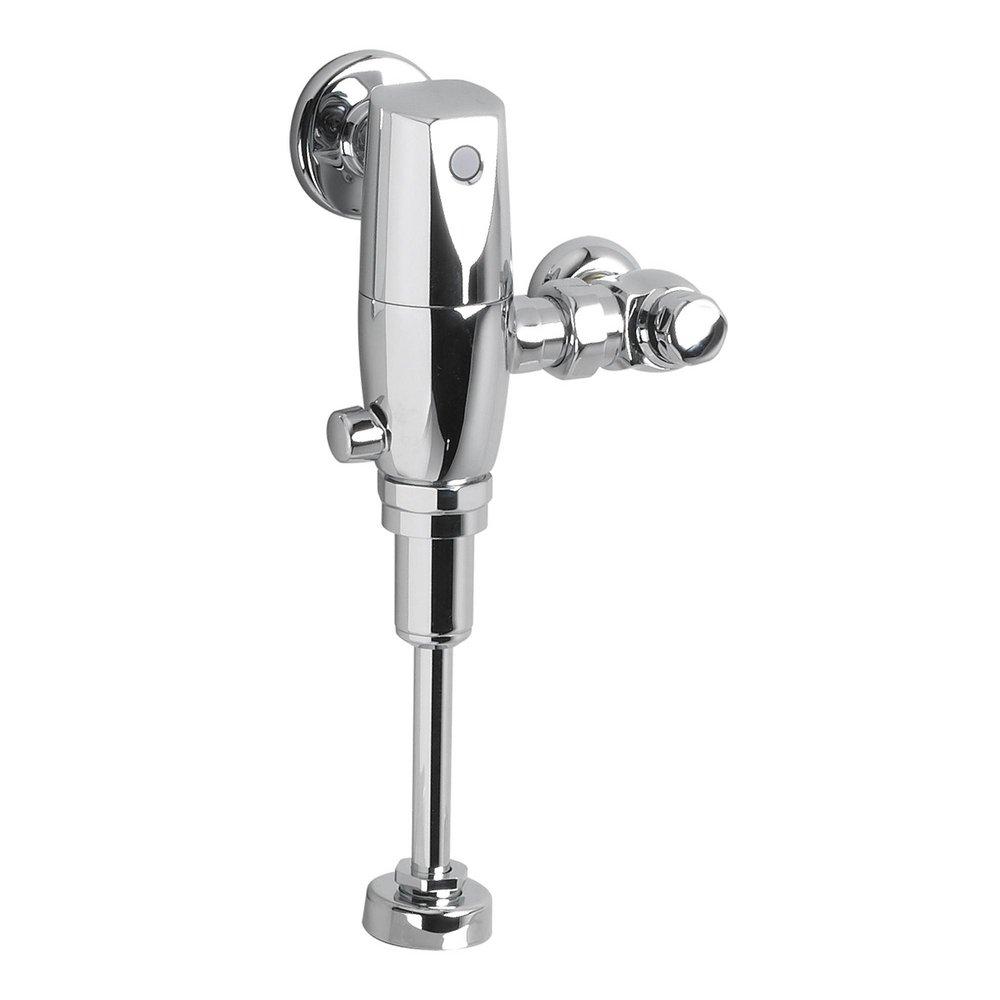

Selectronic® 1.0 gpf Piston Sensor Urinal Flush Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 3 Pallet: 81Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Selectronic®
1.0 gpf Piston Sensor Urinal Flush Valve
6063101.002
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Factory-Installed CR-P2 Lithium Battery
- Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
- Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance
- Selectronic® Proximity System with universal sensor provides hygienic, in hands free in operation
- State-of-the-Art Electronics prevent ghost flushing
- Dezincification Resistant semi-red brass alloy
- Chemical Resistant EPDM Seals for extended life
- No external volume adjustment
- Exposed, sensor-operated selectronic® urinal flush valve
- 11-1/2 in rough-in
Product Information
-
ADA Compliant
Dimensions & Measurements
Depth
4-1/2 in
End Connection 1
FNPT
End Connections
FNPT
Fitting Size 1
3/4 in
Fitting Sizes
3/4 in
Flow Rate
1.0 gpf
Flow Rate Range
.25 gpf - 1.0 gpf
Height
16 in
Length
4-1/2 in
Pressure - Maximum
80 psi
Spud Size
3/4 in
Valve Size
3/4 in
Characteristics & Features
Battery Type
Lithium
Collection
Selectronic®
Color Finish Category
Chromes
Color Finish Name
Polished Chrome
Dual Flush
No
Flush Type
Sensor
Material
Brass
Spud Location
Top
Toilet Installation
Wall Mount
Valve Body Material
Semi-red Brass
Electrical & Operational Information
Power Source
Battery
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A117.1, ANSI A112.19.2
ASME
ASME A112.19.2
Flush Valve Application
Urinal
IAPMO Listed
No
NSF Certified
Yes
UPC
012611426100
