Washout Urinal with Top Spud in White
American Standard

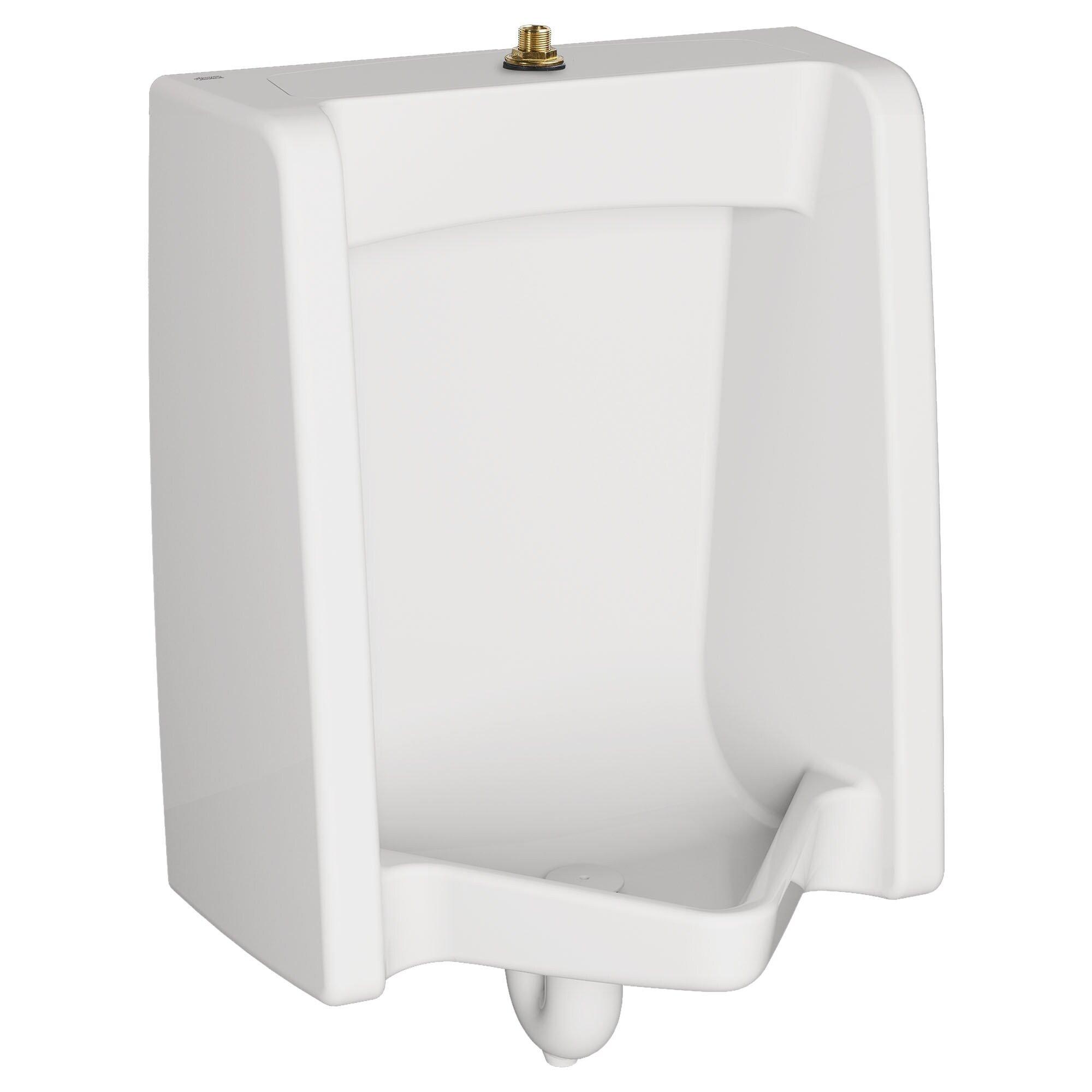

Washbrook® Washout Urinal with Top Spud in White
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 12Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Standard
Washbrook®
Washout Urinal with Top Spud in White
6590001.020
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Fixture only
- Washout flush action
- Includes strainer
- Flushing rim
- Includes 2 wall hangers
- Extended sides for privacy
- Inlet spud: 3/4"
- Outlet connection threaded 2" inside
- 2 wall hangers
Product Information
-
ADA Compliant
-
Green
Dimensions & Measurements
Depth
14-1/8 in
End Connection 1
NPT
End Connections
NPT
Flow Rate
0.125 gpf
Flow Rate Range
0.125 gpf - 1.0 gpf
Height
26-1/8 in
Inlet Spud Size
3/4 in
Length
14-1/4 in
Width
18-7/8 in
Characteristics & Features
Collection
Washbrook®
Color Finish Category
Whites
Color Finish Name
White
Flush Type
Washdown
Inlet Spud Location
Top
Material
Vitreous China
Outlet Spud Location
Bottom
Urinal Installation
Wall Mount
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A117.1
ASME
ASME A112.19.2
BAA Compliant
No
CARB OTC LEED Compliant
No
CEC Compliant
For Sale in CA
CSA Certified
CSA B45.1
GSA Approved
No
IAPMO Listed
No
NSF Certified
Yes
UL Listed
No
WaterSense Labeled
Yes
UPC
033056852941
