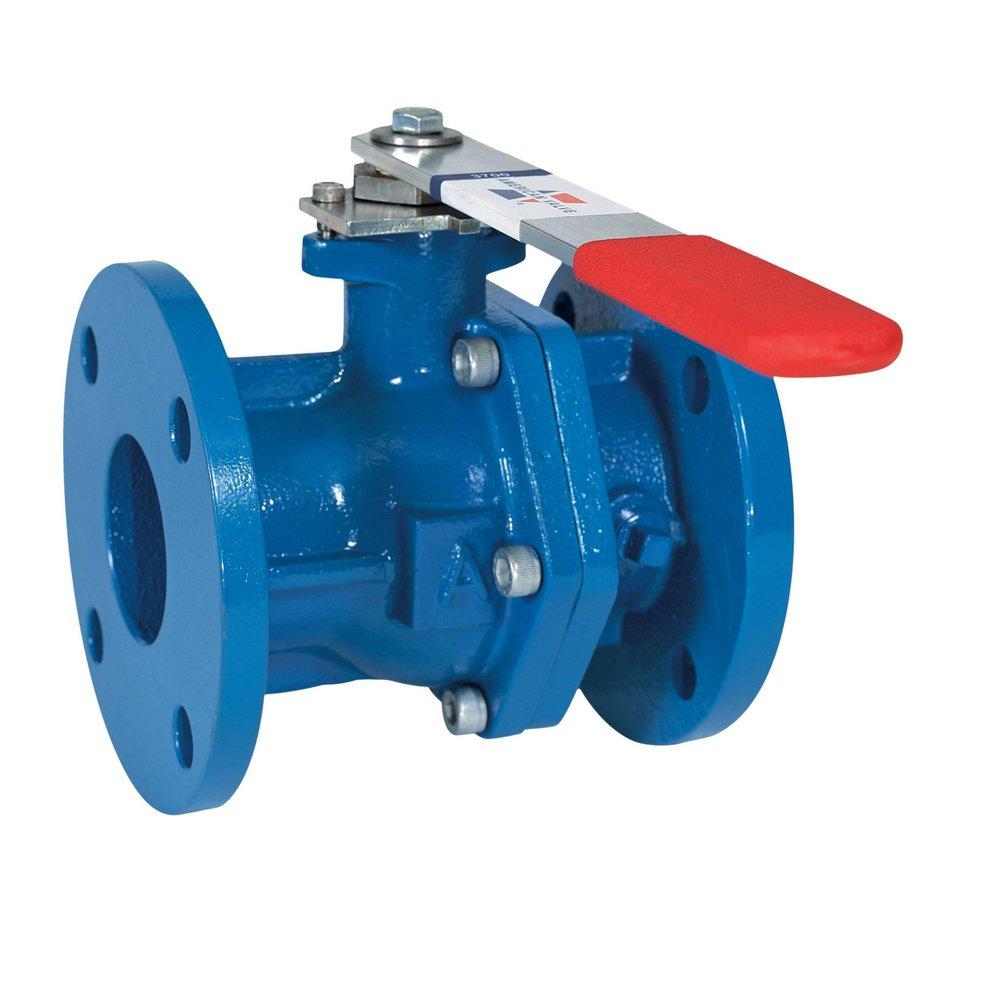

6 in. Cast Iron Full Port Flanged 125# Ball Valve
American Valve
3700 Series 6 in. Cast Iron Full Port Flanged 125# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 20Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
American Valve
3700 Series
6 in. Cast Iron Full Port Flanged 125# Ball Valve
3700 6
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Same end-to-end as any flanged gate or plug valve
- Tapped and plugged boss allows for venting downstream, or test port for backflow preventer
- Class VI positive shutoff
- Low torque
- Ideal for liquid, air, and back-flow applications
- Epoxy coated
- Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
- PFA*- fused solid ball
- 2" through 8" - full port
- 100% lead-free
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
10-1/2 in
Pressure Class
125#, 200#
Valve Size
6 in
Weight
118 lb
Width
11 in
Characteristics & Features
Collection
3700 Series
Handle Material
Steel
Material
Cast Iron
Material Type
A126
Valve Body Material
Cast Iron
Valve Body Style
Ball
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Virgin PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Temperature Range
0 to 200 Deg F (-17 to 93 Deg C)
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI B16.10
ASME
ASME B16.1
ASTM
ASTM A-126 Class B, ASTM A-48 Class 35
AWWA
No
MSS
MSS SP-70
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Air
UL Listed
Yes
UPC
611918016191
