This product requires certification to purchase.

6 in 304 Stainless Steel Grooved Reduced Pressure Detector Assembly with Shutoff Valves, Water Meter and Test Cocks

Ames Fire & Waterworks

Deringer 50X/50GX 6 in 304 Stainless Steel Grooved Reduced Pressure Detector Assembly with Shutoff Valves, Water Meter and Test Cocks

  • Fast #
  • Part #AD6050XCFM
  • Item #8455364
  • Manufacturer Part #D-6050X-CFM
5 out of 5 Customer Rating
Brand image

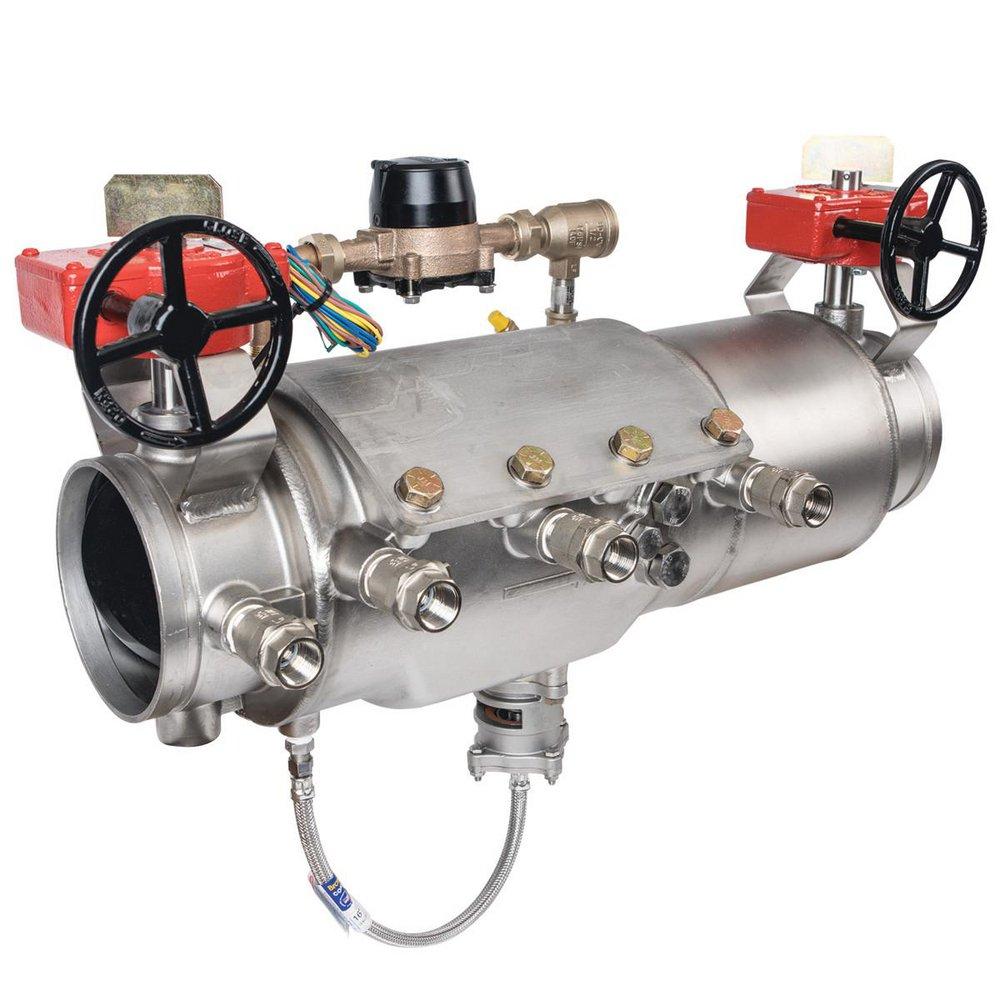

Ames Fire & Waterworks Stainless Steel Grooved Backflow Preventer
Ames Fire & Waterworks Stainless Steel Grooved Backflow Preventer
null
null
Ames Fire & Waterworks

Deringer 50X/50GX 6 in 304 Stainless Steel Grooved Reduced Pressure Detector Assembly with Shutoff Valves, Water Meter and Test Cocks

  • Fast #
  • Part #AD6050XCFM
  • Item #8455364
  • Manufacturer Part #D-6050X-CFM
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
Looking for compatible parts?

Product Details

Product Description
  • Integral shutoffs for shorter lay length and lightweight construction
  • Dual-action check module for low-and high-flow performance
  • Prewired supervisory switches
  • Tamper-resistant test cocks
  • Requires Certification
Dimensions & Measurements
End Connection 1
Grooved
End Connection 2
Grooved
End Connections
Grooved
Height
18 in
Length
28-2/5 in
Pressure - Maximum
175 psi
Valve Size
6 in
Weight
146 lb
Width
36 in
Included Components
Included
Shutoff Valve(s), Water Meter, Test Cock(s)
Characteristics & Features
Coating
Polymer
Collection
Deringer 50X/50GX
Installation Type
Horizontal
Material
Bronze, Plastic, Rubber, Stainless Steel
Material Type
17-7, 18-8, 302, 304, Buna-N, PTFE
Number of Handles
Two Handle
Proposition 65
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
304 Stainless Steel
Valve Body Style
Inline
Valve Disc Material
Silicone
Valve Operator
Actuator Ready
Valve Port Opening
Full Port
Valve Seat Material
Noryl, Polymer
Valve Stem
Outside
Valve Type
Reduced Pressure Detector Assembly
Electrical & Operational Information
Maximum Temperature
140
Minimum Temperature
33
Pressure - Low
10
Warranty & Product Information
ANSI
ANSI 372, ANSI B16.1 Class 125
ASSE Standards
ASSE 1013
AWWA
AWWA C-509, AWWA C-511 2007, AWWA C-606
FM Approved
Yes
IAPMO Listed
No
Lead Law Compliance Level
Applicable to Lead Leaching, Not Compliant
NSF
NSF 372
NSF Certified
Yes
Recommended Valve Application
Commercial, Fire Protection, Irrigation, Plumbing, Waterworks
UL Listed
Yes
UPC
737733033561
