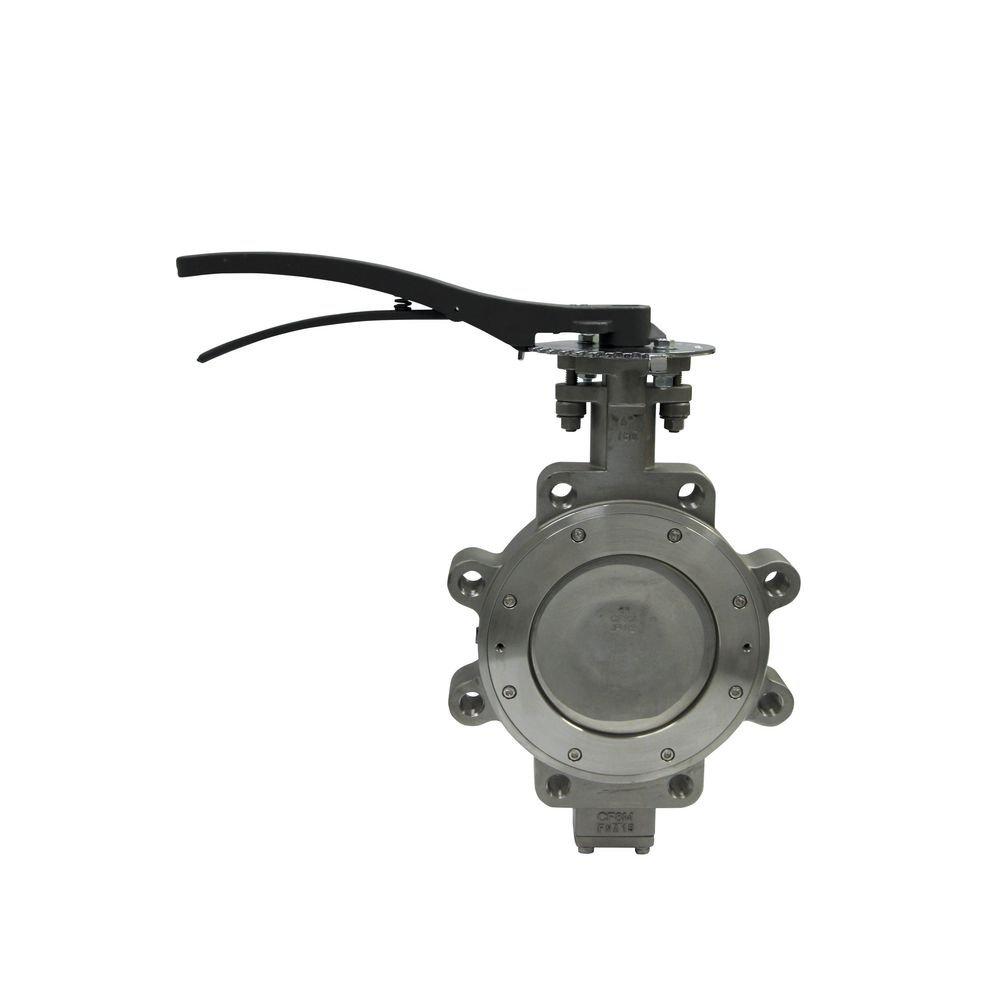

2 in. High Pressure Lugged Butterfly Valve
Apollo Valves
230L Series 2 in. High Pressure Lugged Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Apollo Valves
230L Series
2 in. High Pressure Lugged Butterfly Valve
230L02SSP8TA0A1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Apollo International™ 215 and 230 Series double offset high performance butterfly valves are available in wafer or lug body design.
- Stainless steel models are certified lead-free with stainless steel disc and 17-4PH stainless steel stem.
- 230 Series Class 300# Carbon Steel, 316 SS - 2" to 24"ISO 5211 mounting flange allows choice of Apollo actuators and manual operators
- Multi-bolt retainer holds and supports the seat
- Suitable for bi-directional dead-end service at full pressure-temperature rating
- Vacuum Service to 29" Hg
- Soft Seats made from TFM 1700
-
Lead Law Compliant
Documents
Specifications
- ANSI:
- ANSI Class 250/300 (lug)
- ASTM:
- ASTM A216 WCB
- Clean Bagged:
- No
- Collection:
- 230L Series
- End Connection 1:
- Lug
- End Connection 2:
- Lug
- End Connections:
- Lug
- Height:
- 8-449/500 in
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 1-693/1000 in
- Material:
- Stainless Steel
- Material Type:
- A351, CF8M
- Maximum Temperature:
- 600
- Minimum Temperature:
- 0
- NSF:
- NSF 61
- Origin:
- Global
- Pressure Class:
- 300 psi
- Recommended Valve Application:
- Air, Gas
- Type:
- A230L02SSP8TA0A1
- UL Listed:
- No
- UPC:
- 191988111571
- Valve Body Style:
- Lug
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Bare Stem
- Valve Seat Material:
- TFM, PTFE
- Valve Size:
- 2 in
- Valve Stem:
- Standard
- Valve Type:
- Butterfly Valve
