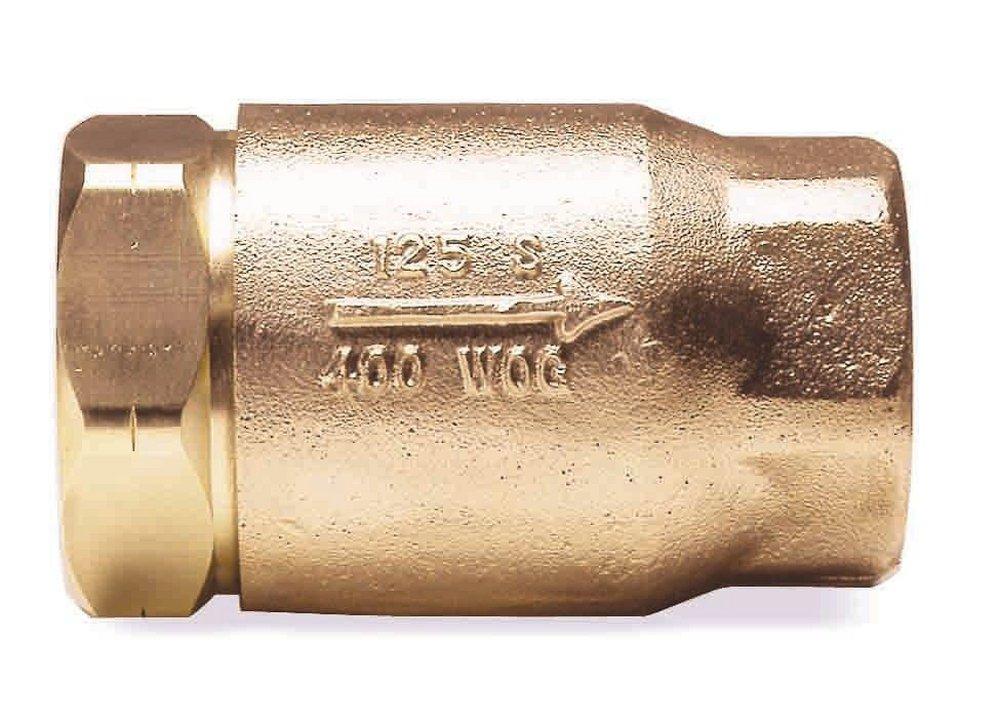

1 in. Cast Bronze FNPT Check Valve
61-100 Series 1 in. Cast Bronze FNPT Check Valve
Frequently Purchased Together
Product Details
- High quality, all brass check valves you can depend on for commercial and light industrial applications for water, oil, gas and steam
- For horizontal mounting only
- Non-shock
- Valves are tested in accordance w/MSS-SP-82
- 180° F working temperature
- Threaded ends comply with ANSI B2.1 3/8" - 4"
- Swing type
- 200 psi WOG
Specifications
- ASTM:
- ASTM B-16, ASTM B-584 C84400
- Application:
- Cooling, General Purpose, Heating, Steam Working Pressure
- Collection:
- 61-100 Series
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- No
- Flow Rate:
- 6 gpm
- IAPMO Listed -:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 3-1/2 in
- Material:
- Bronze, Plastic
- Material Type:
- C84400, RPTFE
- Maximum Temperature:
- 406
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 125
- Pressure Class:
- 125#, 400#
- Recommended Valve Application:
- Steam, Water
- UL Listed:
- No
- Valve Body Material:
- Bronze
- Valve Body Style:
- Inline
- Valve Disc Material:
- Reinforced PTFE
- Valve Operator:
- Spring Actuated
- Valve Seat Material:
- RPTFE
- Valve Size:
- 1 in
- Valve Type:
- Spring Check Valve
- Weight:
- 1.45 lb
- Width:
- 1-93/100 in
