2-1/2 in. Cast Iron Full Port Flanged 125# Ball Valve

You last purchased this on

Apollo Valves

6PLF Series 2-1/2 in. Cast Iron Full Port Flanged 125# Ball Valve

  • Fast #
  • Part #A6PLF20901
  • Item #4778409
  • Manufacturer Part #6PLF20901
3.6 out of 5 Customer Rating
Brand image

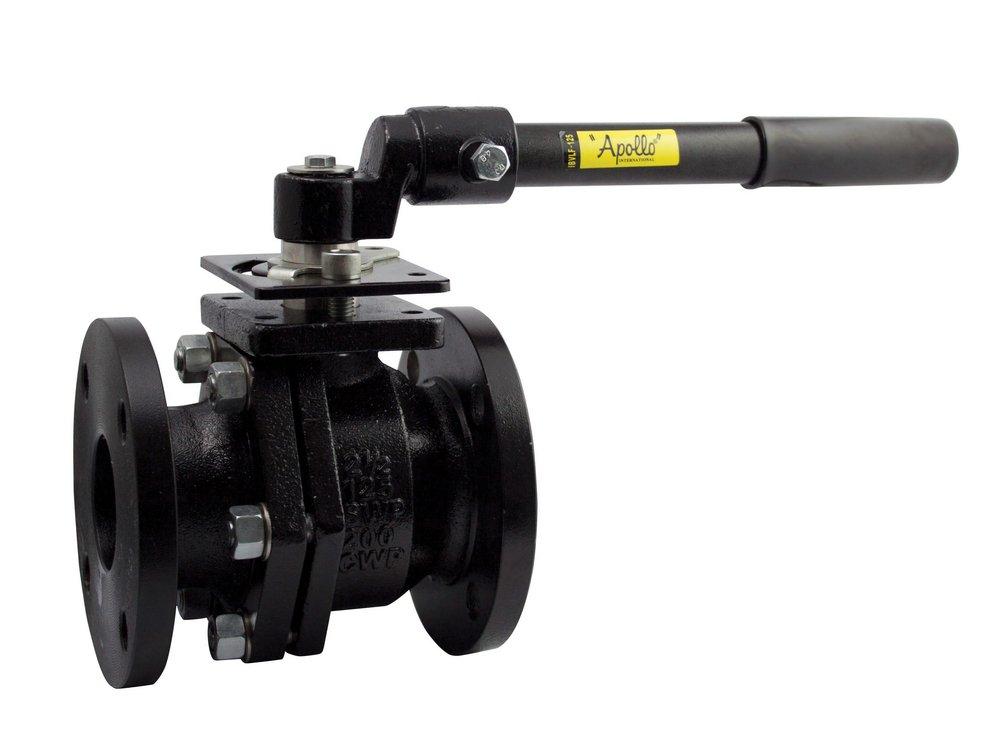

Apollo Valves Black Cast Iron Full Port Flanged 125# Ball Valve
You last purchased this on

Apollo Valves

6PLF Series 2-1/2 in. Cast Iron Full Port Flanged 125# Ball Valve

  • Fast #
  • Part #A6PLF20901
  • Item #4778409
  • Manufacturer Part #6PLF20901
3.6 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • A126 Class B Cast lron Body with FDA FoodGrade Epoxy Powder Coat
  • Stainless Steel Ball & Stem
  • PTFE Seats
  • ISO 5211 Mounting Pad for Easy Actuation
  • Removable Handles to Fit Into Areas of Limited Space
  • Full Port Through 6 in
  • Lockable in Open or Closed Position
  • Lever Handles are Standard 2 in – 6 in
  • Gear Operators are Standard 8 in & 10 in
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61-8, ANSI B16.10
ASME:
ASME B16.1
ASTM:
ASTM 126 Class B
AWWA:
AWWA C-507-99
BAA Compliant:
No
CSA Certified:
No
Clean Bagged:
No
Collection:
6PLF Series
Color Finish Name:
Black
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
Handle Length (in):
16-1/2 in
Handle Material:
Ductile Iron
Handle Type:
Lever
Height:
8-17/100 in
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
7-1/2 in
MSS:
MSS SP-72
Material:
Cast Iron
Maximum Temperature:
353
Minimum Temperature:
-22
NSF:
NSF 372, NSF 61-8
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Global
Pressure - High:
200
Pressure Class:
125#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Potable Water, HVAC, Vacuum
Temperature Range:
-22 to 353 Deg F
Temperature Rating:
353
UL Listed:
No
Valve Body Material:
Cast Iron
Valve Body Style:
Ball
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
2-1/2 in
Valve Stem:
Standard
Valve Type:
Ball Valve
Weight:
38.58 lb
