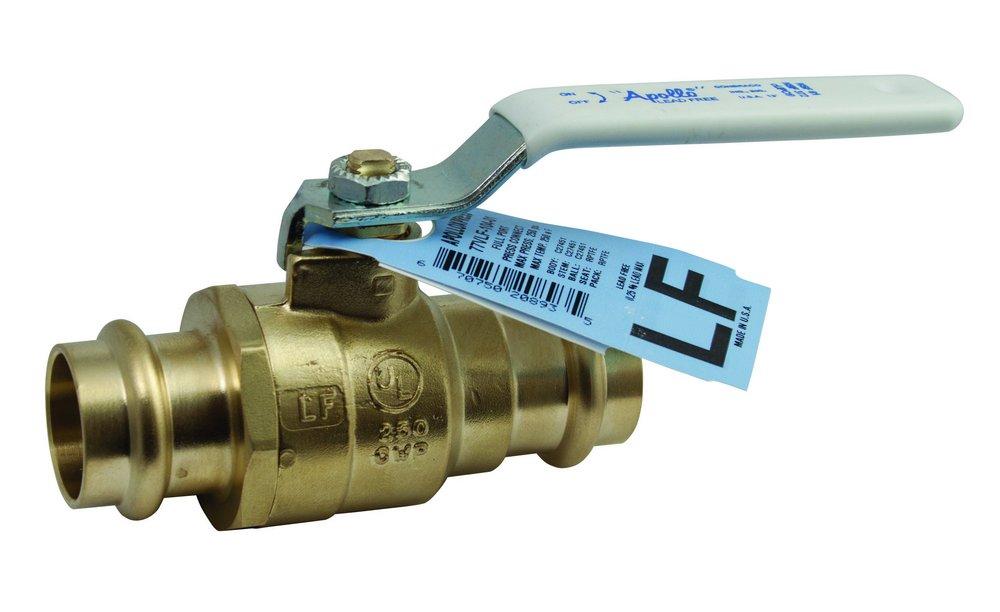

1 in. Forged Brass Full Port Press Ball Valve
Apollo Valves
77V-LF Series 1 in. Forged Brass Full Port Press Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 6 Case: 48 Pallet: 1296Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Apollo Valves
77V-LF Series
1 in. Forged Brass Full Port Press Ball Valve
77VLF10501
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Heavy pattern forged design
- Adjustable stem packing nut
- Leak Before Press® technology
- Compatible with the Rigid® XLC 2-1/2" – 4" press tool
- Made in the USA
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
4-7/100 in
Pressure - Maximum
300 psi
Valve Size
1 in
Weight
1.2 lb
Characteristics & Features
Clean Bagged
No
Collection
77V-LF Series
Handle Material
Plated Steel
Material
Forged Brass
Material Type
C27451
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Minimum Temperature
0
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASTM
ASTM A-276 Type 316, ASTM B-16, ASTM C-27451, ASTM C-36000
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
670750208942
