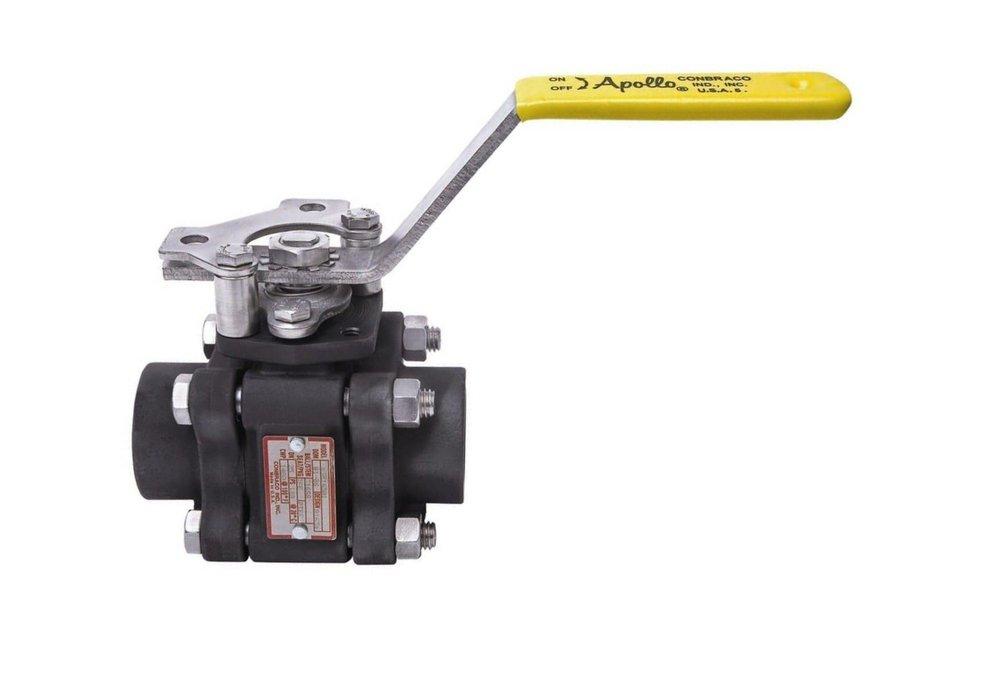

1-1/2 in. Carbon Steel Full Port NPT 1500# Ball Valve
Apollo Valves
83A-140 Series 1-1/2 in. Carbon Steel Full Port NPT 1500# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 169Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Apollo Valves
83A-140 Series
1-1/2 in. Carbon Steel Full Port NPT 1500# Ball Valve
83A14701
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Stainless steel trim and hardware
- Swing-out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking
- Adjustable multi-piece PTFE "V" style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum services to 29" of Hg
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Length
4-49/50 in
Pressure Class
1500#
Valve Size
1-1/2 in
Weight
14.4 lb
Width
3-21/25 in
Characteristics & Features
Clean Bagged
No
Collection
83A-140 Series
Handle Material
Stainless Steel
Material
Carbon Steel
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
3 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Multi-Seal
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Warranty & Product Information
ASME
ASME B1.20.1
ASTM
ASTM A-216 Grade WCB, ASTM A-276
FM Approved
No
IAPMO Listed
No
ISO
ISO 5211
MSS
MSP SP-110, MSS SP-25
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Steam, HVAC, Compressed Air
UL Listed
No
UPC
670750060892
