10 in. Cast Iron EPDM Gear Operator Handle Butterfly Valve

Apollo Valves

LC149 Series 10 in. Cast Iron EPDM Gear Operator Handle Butterfly Valve

  • Fast #
  • Part #ALC149102
  • Item #7297898
  • Manufacturer Part #LC149102
5 out of 5 Customer Rating
Brand image

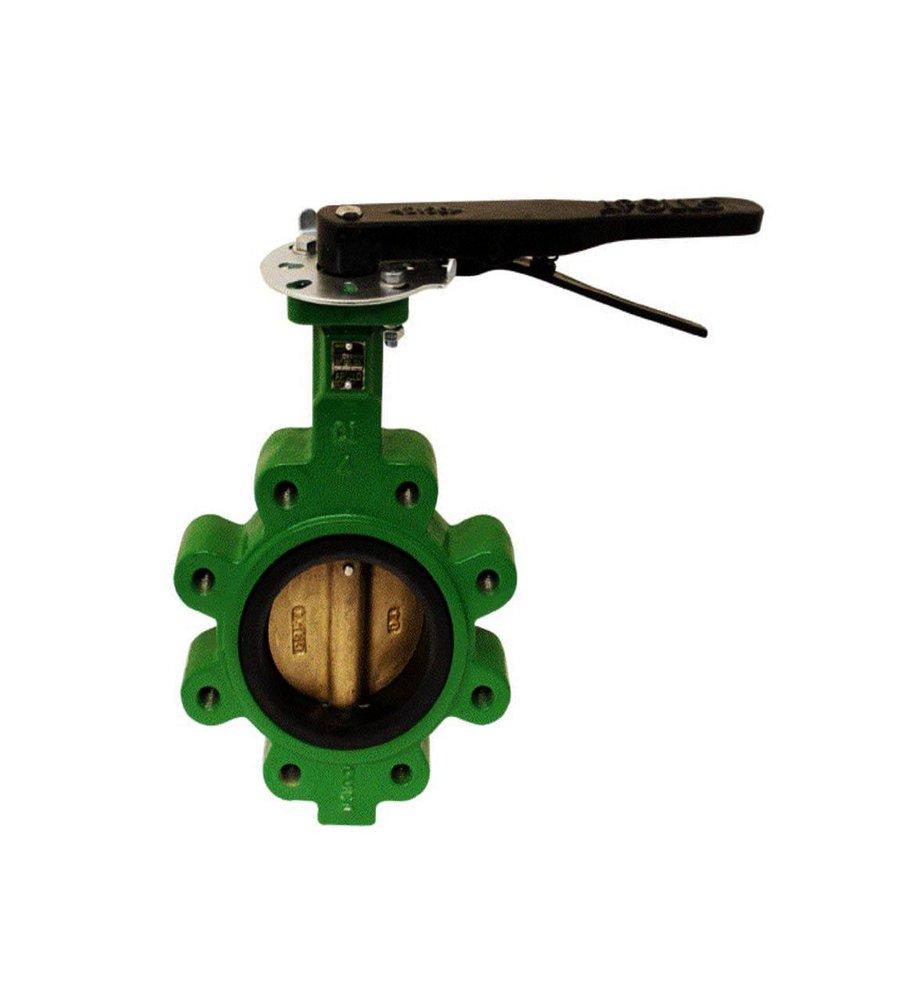

Apollo Valves Cast Iron EPDM Gear Operator Handle Butterfly Valve
Apollo Valves Cast Iron EPDM Gear Operator Handle Butterfly Valve
Apollo Valves

LC149 Series 10 in. Cast Iron EPDM Gear Operator Handle Butterfly Valve

  • Fast #
  • Part #ALC149102
  • Item #7297898
  • Manufacturer Part #LC149102
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
    Pick Up  Not Available
    Not available in VA
  • Shipping Available
    Available for immediate shipment
    Shipping Not Available
    Not available in VA

Product Details

Product Details

  • The Apollo International® LC149 Series Cast Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications.
  • The LC149 Series is a lug style valve designed to be economical yet have high pressure capabilities.
  • Available in sizes 2” - 12”.
  • Compatible with ASNI 125# & 150# Flanges
  • ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Manual Operators
  • Double-D Stem Design
  • Conforms to MSS SP-67 & API 609
  • Extended Neck for up to 2" of Insulation
  • Suitable for bi-directional dead-end service to full rated pressure
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61
ASTM:
ASTM A126 Class B
Clean Bagged:
No
Collection:
LC149 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
IAPMO Listed:
No
ISO:
ISO 5211
MSS:
MSS SP-67
Material:
Cast Iron
Maximum Temperature:
225
Minimum Temperature:
-30
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Global
Pressure - Maximum:
200 psi
Pressure Class:
200#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
HVAC, Potable Water
UL Listed:
No
UPC:
670750606151
Valve Body Material:
Cast Iron
Valve Disc Material:
Aluminum Bronze
Valve Operator:
Gear Operator
Valve Seat Material:
EPDM
Valve Size:
10 in
Valve Type:
Butterfly Valve
