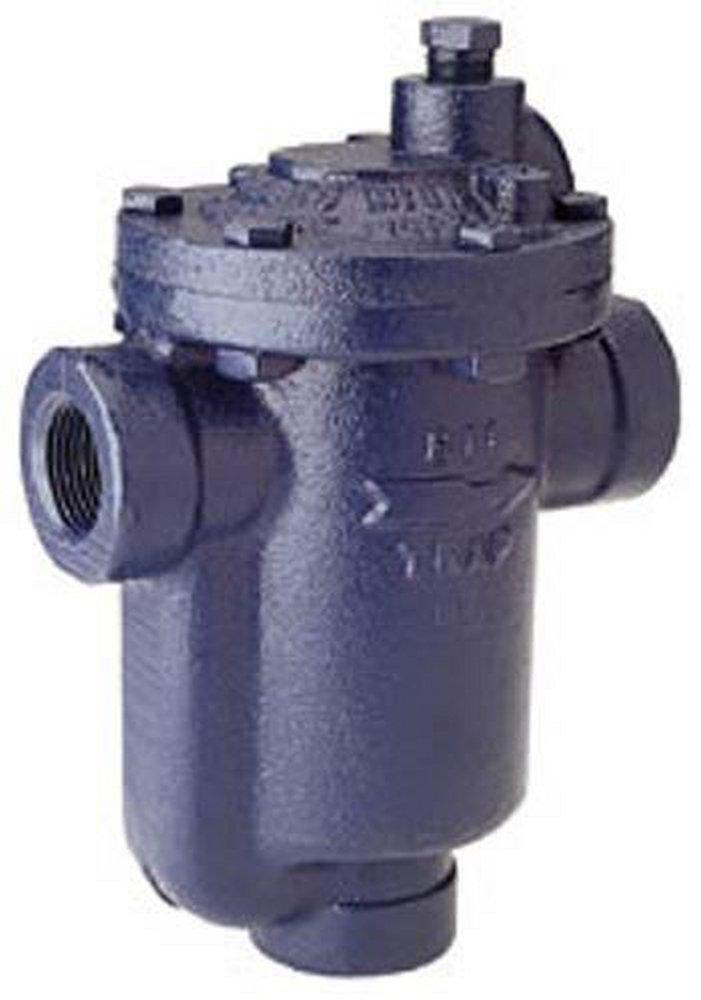

3/4 in. 450F 250 psi Steam Trap
Armstrong International
800-813 Series 3/4 in. 450F 250 psi Steam Trap
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12 Pallet: 492
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Armstrong International
800-813 Series
3/4 in. 450F 250 psi Steam Trap
C5297-8
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Cast Iron for horizontal installation
- For pressures to 250 psi (17 bar)
- Capacities to 760 lb/hr (345 kg/hr)
- The inverted bucket provides efficient condensate drainage of virtually all types of steam-using equipment
- The most reliable steam trap known-the inverted bucket-provides efficient condensate drainage of virtually all types of steam-using equipment
- Put the inverted bucket to work in a tough cast iron package, and you have the best of both worlds
- Because they operate efficiently for longer periods of time, Armstrong cast iron inverted buckets add solid energy savings to lower replacement/labor costs
- All Armstrong cast iron inverted bucket steam traps are repairable for even bigger maintenance savings
- A unique leverage system multiplies the force provided by the bucket to open the valve against system pressure
- The mechanism is free-floating, and has no fixed pivots to create wear or friction
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Height
5-7/16 in
Pressure Class
125#
Pressure - Maximum
250 psig
Valve Size
3/4 in
Width
5 in
Characteristics & Features
Collection
800-813 Series
Valve Body Material
Cast Iron
Valve Disc Material
Stainless Steel
Valve Seat Material
Hardened Steel
Electrical & Operational Information
Maximum Temperature
450
Warranty & Product Information
ASTM
ASTM A-48 Class 30
UL Listed
No
