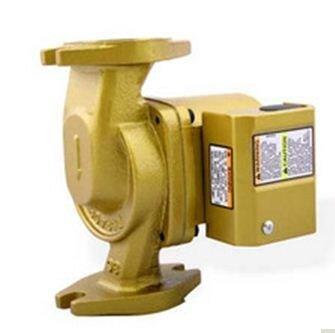

1/25 HP 115V Bronze Circulator Pump
Bell & Gossett
1/25 HP 115V Bronze Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Bell & Gossett
1/25 HP 115V Bronze Circulator Pump
103252LF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Designed specifically for quiet operation
- Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
- Self-cleaning particle shield protects the shaft and bearings from system start-up debris
- One-piece, high-nickel stainless steel stator can isolate the stator from system fluid and maintains precision bearing alignment for longer bearing life
- Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
Product Information
-
Lead Law Compliant
Dimensions & Measurements
Connection Size
3/4
Depth
5-9/16 in
Flow Rate
22 gpm
Height
6-1/8 in
Maximum Feet of Head
15
Weight
10 lb
Width
4-7/8 in
Characteristics & Features
Connection Type
Flanged
Pump Body Material
Bronze
Electrical & Operational Information
AMP
0.8
Horsepower
1/25 hp
Phase
Single Phase
RPM
2940
Volts
115V
Watts
92 W
Warranty & Product Information
Energy Star Compliant
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF Certified
No
Product Type
Circulator Pump
UL Listed
Yes
UPC
683328221755
