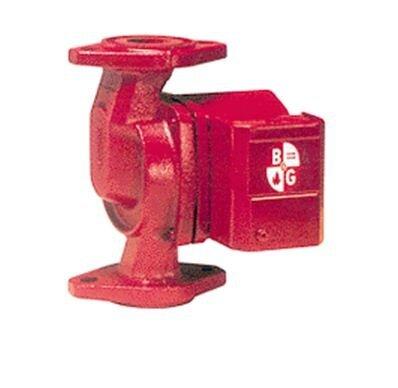

1/25 HP 115V Circulating Booster Pump
Bell & Gossett
NRF Series 1/25 HP 115V Circulating Booster Pump
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Bell & Gossett
NRF Series
1/25 HP 115V Circulating Booster Pump
103251
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
- Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
- Self-cleaning particle shield protects the shaft and bearings from system start-up debris
- One-piece, high-nickel stainless steel stator can isolate the stator from system fluid and maintains precision bearing alignment for longer bearing life
- Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
Dimensions & Measurements
Connection Size
1-1/2
Flow Rate
22 gpm
Height
6-3/8 in
Length
6-3/16 in
Maximum Feet of Head
15
Width
5-1/8 in
Characteristics & Features
Collection
NRF Series
Connection Type
Flanged
Pump Body Material
Cast Iron
Pump Mounting
Free Standing
Pump Phase
1
Electrical & Operational Information
AMP
0.8
Horsepower
1/25 hp
Maximum Temperature
240
Power Source
Electric
RPM
2940
Volts
115V
Warranty & Product Information
Application
Residential
NSF Certified
No
Pump Application
Hydronic Heating
UL Listed
No
UPC
683328032511
