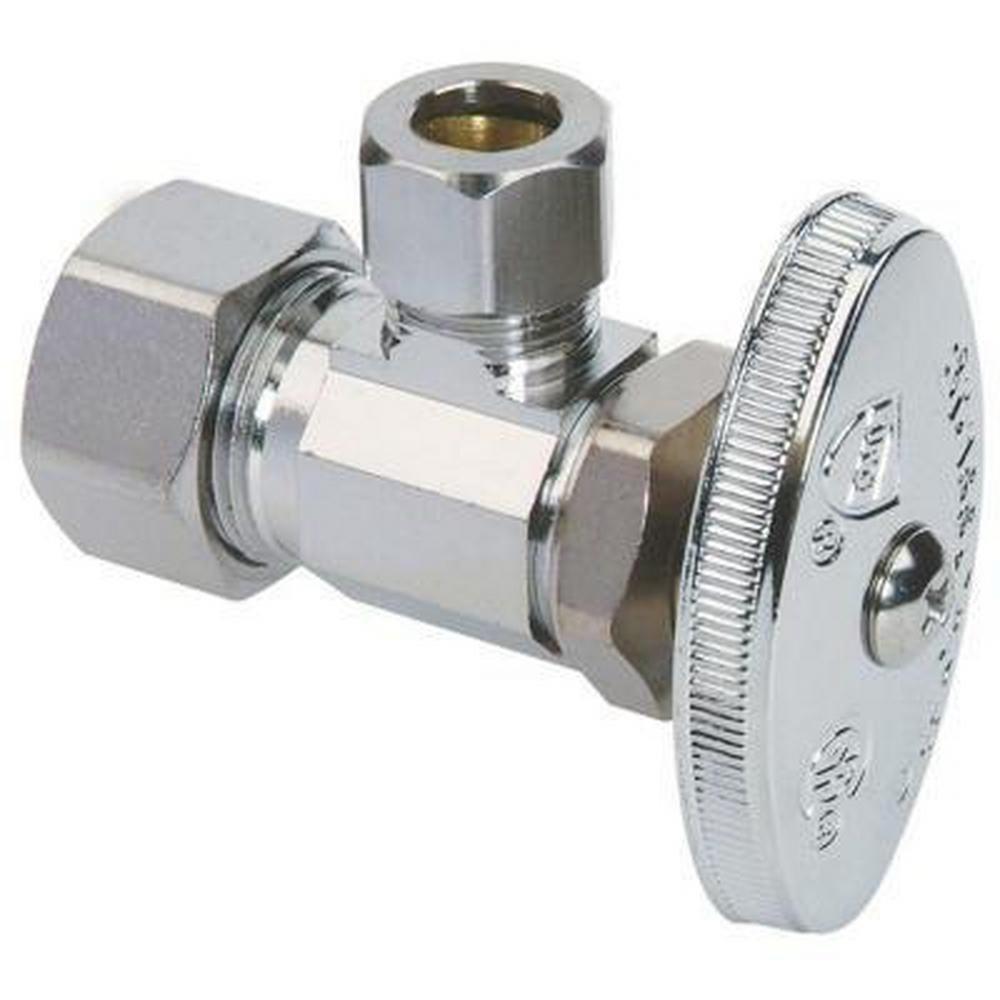

1/2 x 1/4 in. Compression x OD Compression Knurled Angle Supply Stop Valve in Chrome
BrassCraft
1/2 x 1/4 in. Compression x OD Compression Knurled Angle Supply Stop Valve in Chrome
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 60Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
BrassCraft
1/2 x 1/4 in. Compression x OD Compression Knurled Angle Supply Stop Valve in Chrome
OCR09X C
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Machined, one-piece body construction for strength, durability and long-lasting performance
- 1/2 in. nom comp x 1/4 in. OD comp
- Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops
- Multi-turn operation means water flow control with only a few turns of the handle
- Oval-knurled handle provides a secure grip for on/off operation
- Easy-to-remove handle protects against accidental operation during rough-ins
- One-piece shut-off mechanism provides smooth on-off operation
- Chrome finish
- Contractor pack includes 5 individually tray valves
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Length
2-3/4 in
Pressure - Maximum
125 psi
Valve Size
1/2 in x 1/4 in
Weight
0.2200 lb
Characteristics & Features
Color Finish Category
Chromes
Color Finish Name
Chrome
Handle Material
Polycarbonate
Handle Type
Knurled
Material
Brass, Plastic
Material Type
Polycarbonate
Number of Handles
Single Handle
Valve Body Material
Brass
Valve Body Style
1 piece
Valve Operator
Oval Knurled Handle
Valve Type
Angle Supply Stop Valve
Electrical & Operational Information
Maximum Temperature
140
Minimum Temperature
40
Temperature Range
40 to 160 Deg F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASME
ASME A112.18.1
ASTM
ASTM F-876, ASTM F-877
CSA Certified
CSA B125.1
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
026613135274
