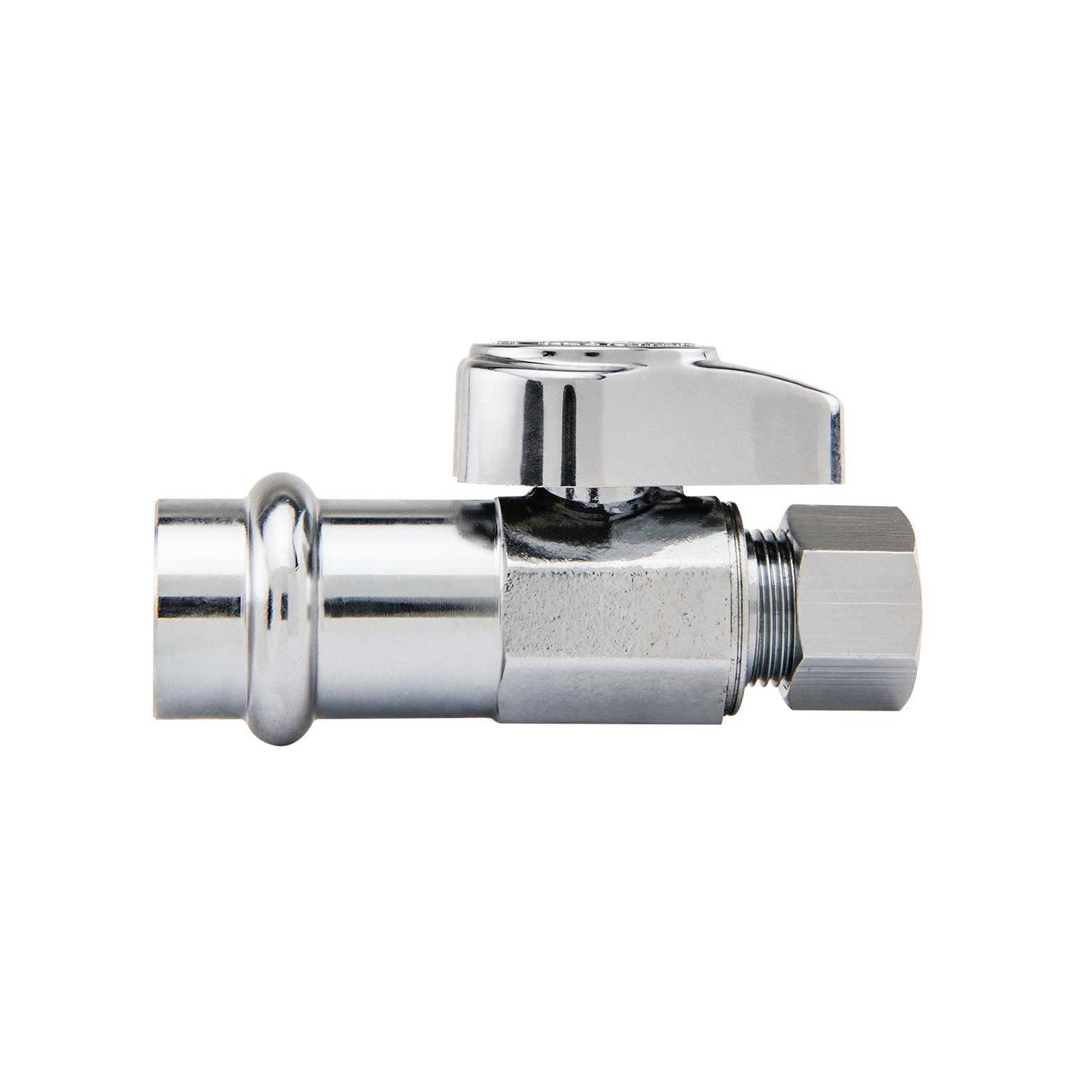

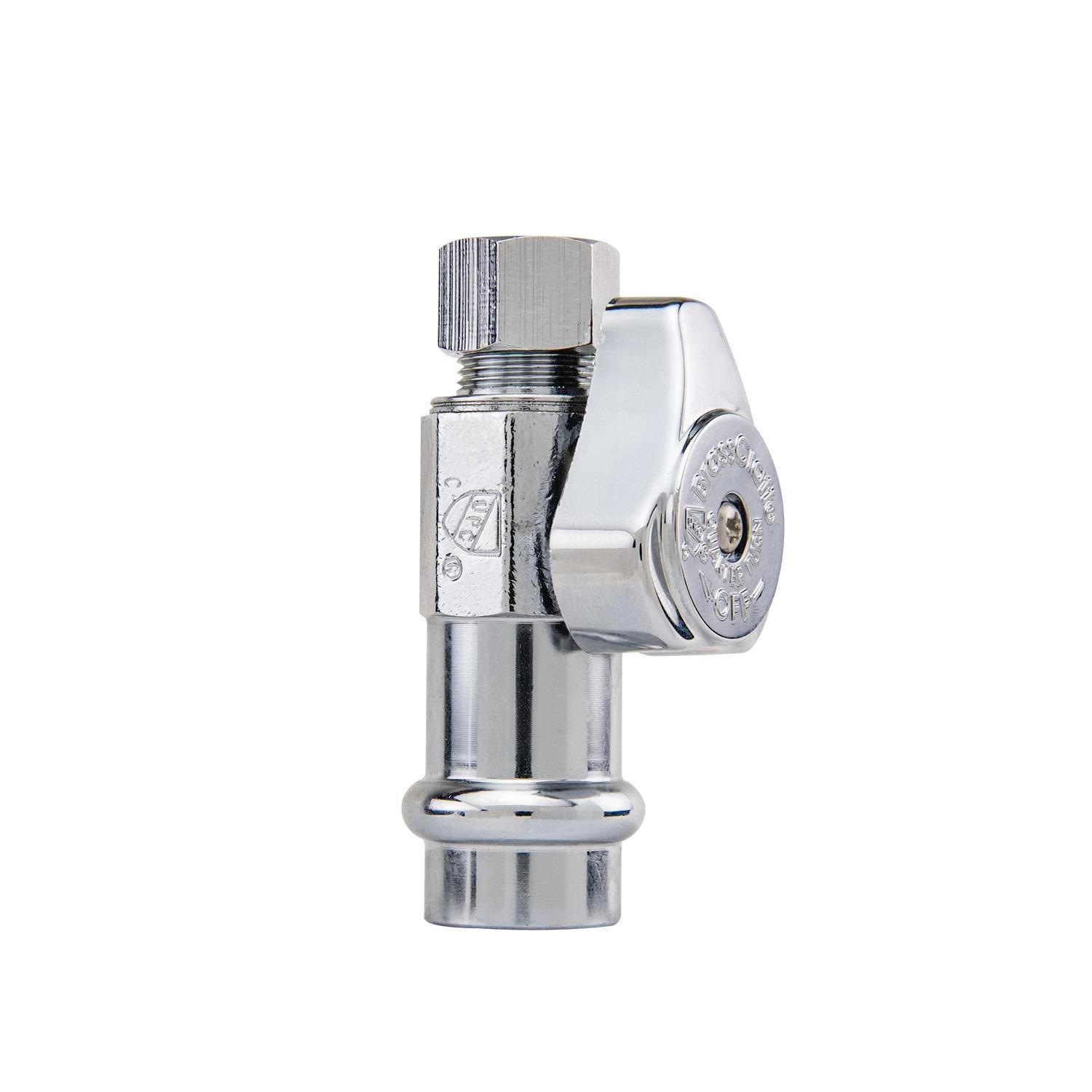

1/2 x 3/8 in. Press x Compression Straight Supply Stop Valve in Chrome
BrassCraft
1/2 x 3/8 in. Press x Compression Straight Supply Stop Valve in Chrome
Package Quantity Info:
Each: 1 Case: 20Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
BrassCraft
1/2 x 3/8 in. Press x Compression Straight Supply Stop Valve in Chrome
G2CPN14X C1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- One-piece brass body for strength and durability
- Compatible with copper pipe (ASTM B88 tubing)
- Safe installation without the need for heat or flame
- 1/4 handle provides easy on/off flow control with a 90 degree turn of the handle
- Chrome plated brass ball provides corrosion resistance and smooth operation
- Easy-to-remove handle protects against accidental operation during rough-ins
- Connections can be made on both wet and dry systems
- Chrome plated
- Pressure rating: 125 psi maximum
- Product certified by IAPMO to ASME A112.18.1/CSA B125.1 – Plumbing supply fittings including NSF61 & NSF372
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Compression
End Connections
Press x Compression
Height
1-3/16 in
Length
2-3/4 in
Valve Size
1/2 in x 3/8 in
Weight
.22 lb
Width
2-1/4 in
Characteristics & Features
Color Finish Category
Chromes
Color Finish Name
Chrome
Handle Material
ABS
Material
Brass
Valve Body Material
Brass
Valve Body Style
1 piece
Valve Operator
Quarter Turn Handle
Valve Seat Material
PTFE
Valve Type
Straight Supply Stop Valve
Electrical & Operational Information
Maximum Temperature
160
Minimum Temperature
40
Pressure - High
125
Temperature Range
40 to 160 Deg F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASME
ASME A112.18.1
ASTM
ASTM B-88
CSA Certified
CSA B125.1
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Global
Recommended Valve Application
Potable Water
UL Listed
No
UPC
026613183701
