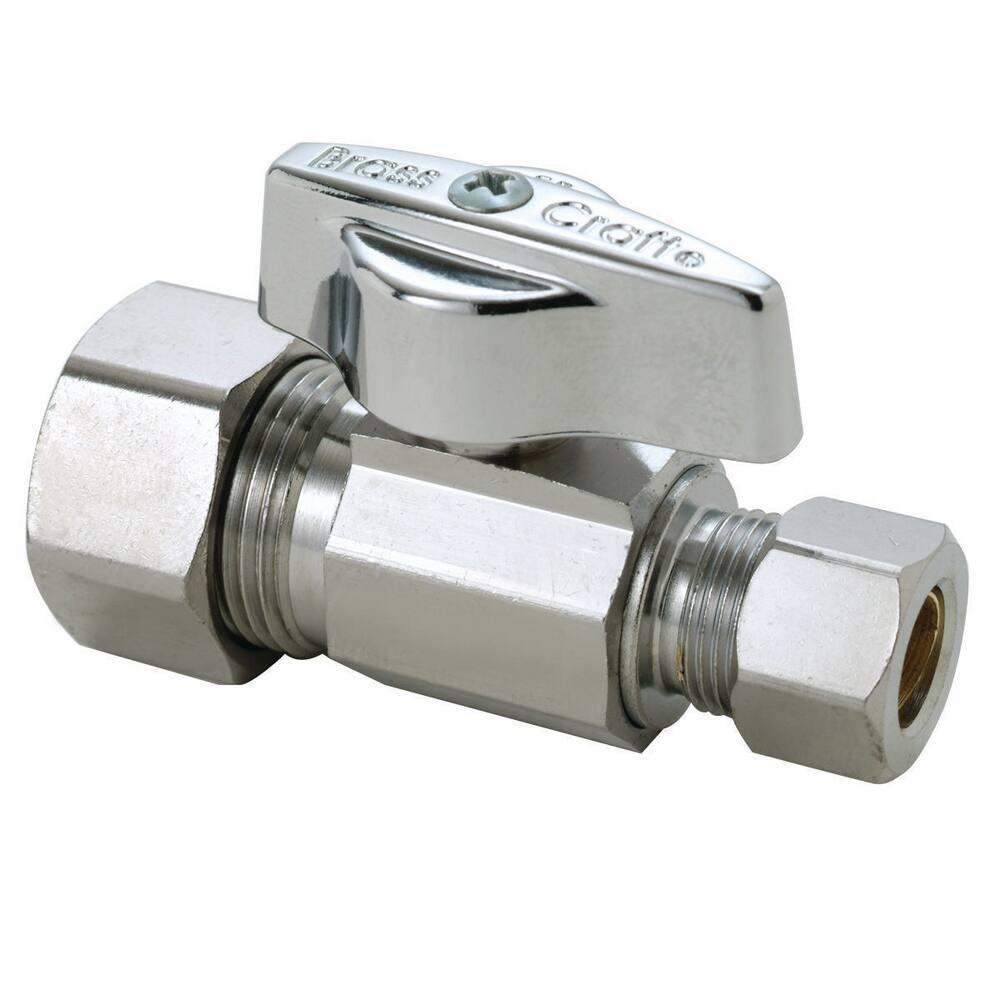

1/2 x 3/8 in. Compression x OD Compression Straight Supply Stop Valve in Chrome

BrassCraft

KTCR14 Series 1/2 x 3/8 in. Compression x OD Compression Straight Supply Stop Valve in Chrome

  • Fast #
  • Part #BKTCR14XC
  • Item #3869364
  • Manufacturer Part #KTCR14X C
3.6 out of 5 Customer Rating
Brand image
BrassCraft Chrome Compression Straight Supply Stop Valve in Chrome
BrassCraft Chrome Compression Straight Supply Stop Valve in Chrome
BrassCraft

KTCR14 Series 1/2 x 3/8 in. Compression x OD Compression Straight Supply Stop Valve in Chrome

  • Fast #
  • Part #BKTCR14XC
  • Item #3869364
  • Manufacturer Part #KTCR14X C
3.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 60
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • 1/2 in. nom comp inlet x 3/8 in. OD comp outlet 1/4-turn straight ball stop
  • Compatible with copper pipe
  • For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115° F
  • Precision-machined brass ball to provide smoother operation without freeze ups even after long periods of non-use
  • Blow-out proof, plated stem is assembled from the inside with double O-rings to help ensure safe, reliable performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Positive 1/4 turn shut-off
  • Chrome finish
  • 100% leak tested to ensure reliable, leak-free performance
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Length
2-8/25 in
Pressure - Maximum
125 psi
Valve Size
1/2 in x 3/8 in
Weight
0.23919 lb
Characteristics & Features
Collection
KTCR14 Series
Color Finish Category
Chromes
Color Finish Name
Chrome
Handle Material
Die Cast Zinc
Material
Brass, Die Cast Zinc, Plastic
Material Type
PTFE
Number of Handles
Single Handle
Valve Body Material
Brass
Valve Body Style
1 piece
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Straight Supply Stop Valve
Electrical & Operational Information
Maximum Temperature
180
Minimum Temperature
40
Temperature Range
40 to 160 Deg F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASME
ASME A112.18.1
CSA Certified
CSA B125.1
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
026613138626
