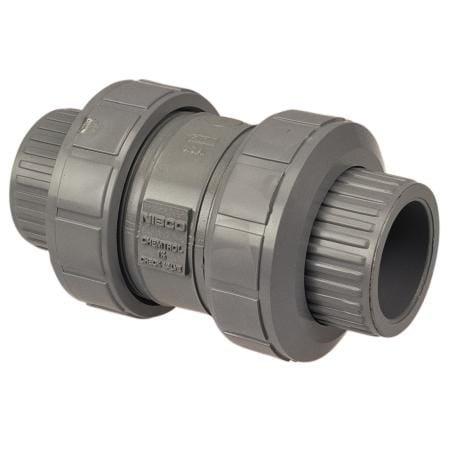

1 in. Socket x Threaded CPVC Ball Check Valve
Chemtrol
1 in. Socket x Threaded CPVC Ball Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 600
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Chemtrol
1 in. Socket x Threaded CPVC Ball Check Valve
MB817UA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Do not use or test with compressed air or other gases
- Includes both socket and female NPT thread end connections
- EPDM O-rings
- True Union design
- Maximum service temperature 210°F
- Valve pressure rating 150 psi at 73°F water non-shock
Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
Threaded
End Connections
Socket Weld x Threaded
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
1 in
Characteristics & Features
Valve Body Material
CPVC
Valve Body Style
Ball-check
Valve Disc Material
CPVC
Valve Seat Material
EPDM
Valve Type
Check Valve
Electrical & Operational Information
Maximum Temperature
210
Warranty & Product Information
ANSI
ANSI 14, ANSI 61 Annex G
NSF
NSF 14, NSF 61 Annex G
NSF Certified
Yes
UL Listed
No
UPC
039923743824
