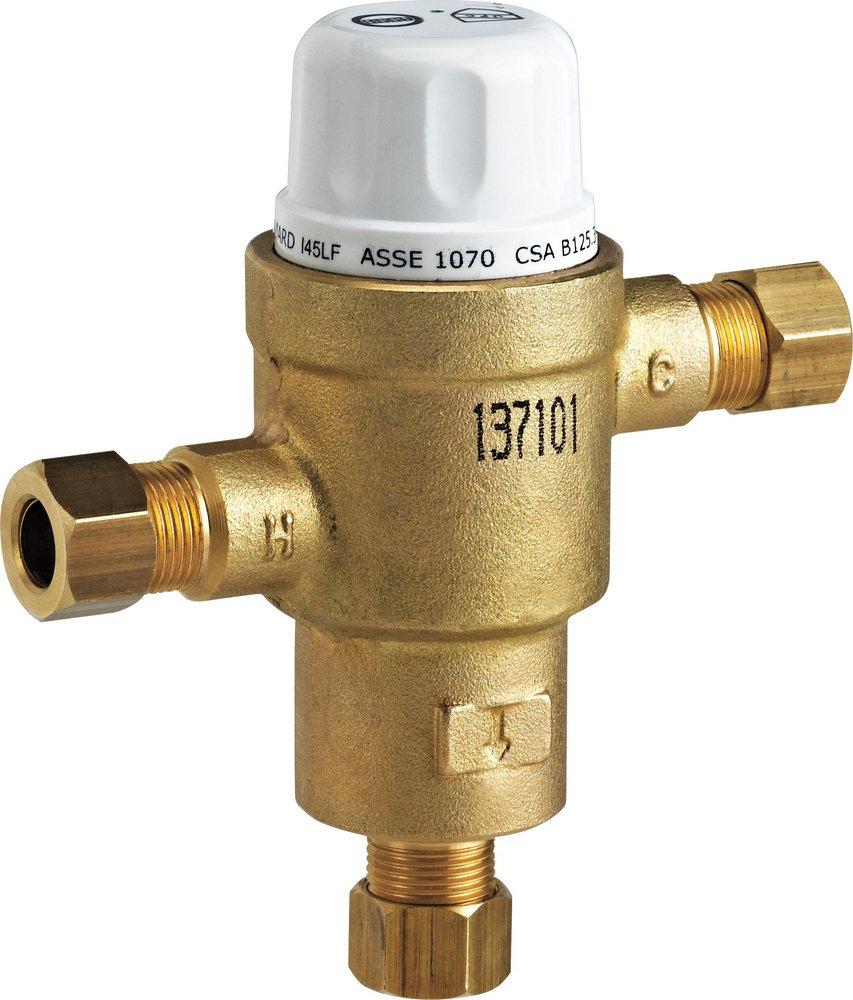

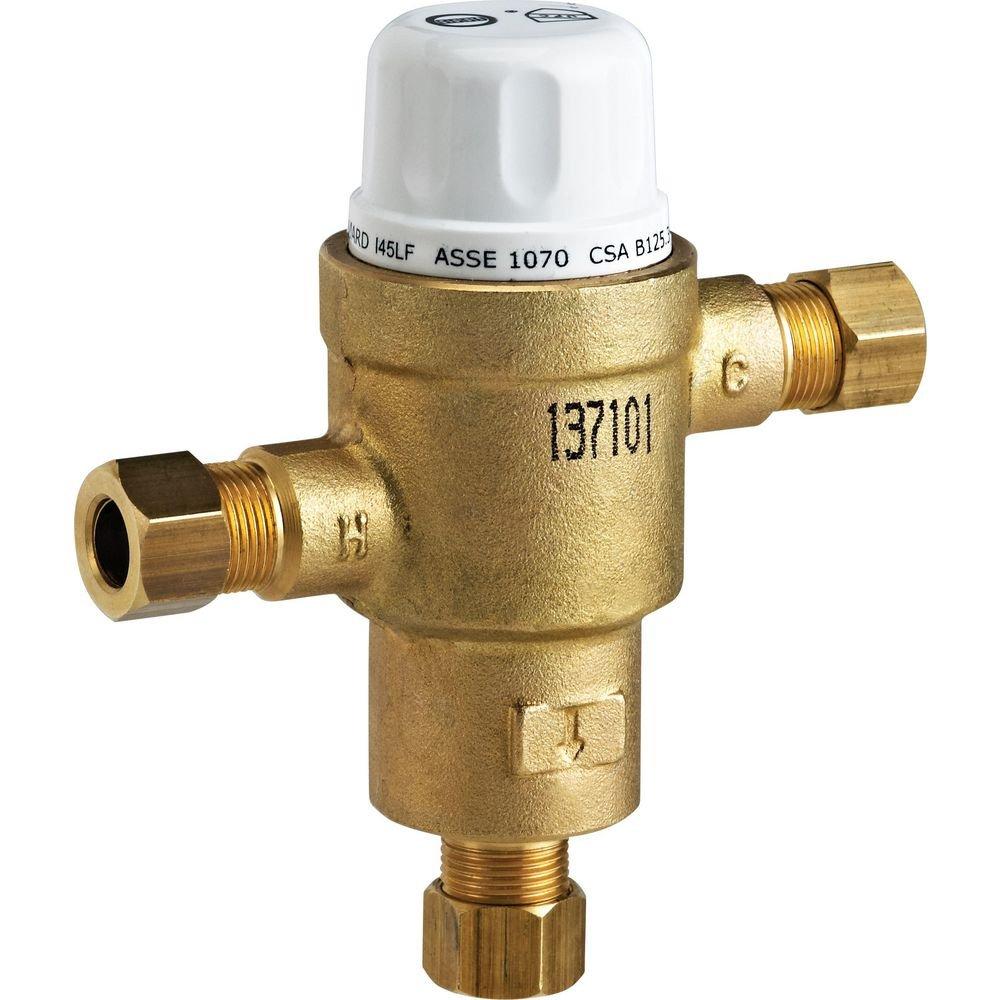

3/8 in. Compression Mixing Valve
Delta Faucet
3/8 in. Compression Mixing Valve
Package Quantity Info:
Each: 1 Pallet: 720Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Delta Faucet
3/8 in. Compression Mixing Valve
R3070-MIXLF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Thermostatic mixing valve
- IAPMO listed to ASSE 1070
- 3/8" compression inlets/outlets
- Check valves on inlets
- Min. 0.35 gpm, 1.3 L/min flow rate
- Max. flow of 5.8 gpm, 22 L/min @ 45 psi pressure loss
- Snap-on cover over a spindle mechanism that requires a special tool to adjust temperature, this special tool is provided with each valve
- Regulating piston made from engineered polymer
- Outlet flow reduced to a trickle in the event of cold water supply failure
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Compression
End Connection 2
Compression
End Connections
Compression
Flow Rate
5.8 gpm
Height
3-3/4 in
Pressure - Maximum
230 psi
Valve Size
3/8 in
Characteristics & Features
Cartridge Type
Thermostatic
Faucet Mount
Wall Mount
Material
Brass
Proposition 65
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Seat Material
Metal
Valve Type
Thermostat Mixing Valve
Warranty & Product Information
ADA Compliant
No
Application
Commercial
ASME
ASME A112.1070
ASSE Standards
ASSE 1070
CSA Certified
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61-9
NSF Certified
Yes
UPC
055870381124
