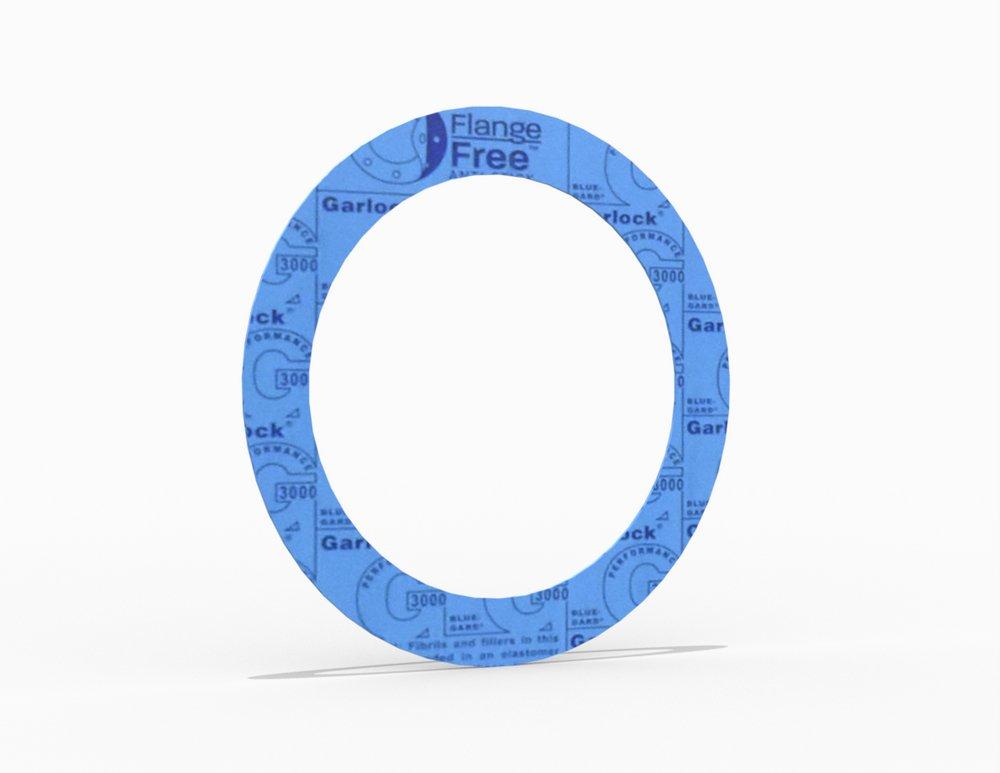

Ring Gasket, Aramid Fiber with Nitrile Binder(NBR) Nitrile(NBR), 4 in. ASME B16.5 Class 150, 0.125 in. Thick
You last purchased this on
Draco Mechanical Supply
BLUE-GARD® Style 3000 Ring Gasket, Aramid Fiber with Nitrile Binder(NBR) Nitrile(NBR), 4 in. ASME B16.5 Class 150, 0.125 in. Thick
Package Quantity Info:
Each: 1 Inner Pack: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
-
Pick Up: Not available
-
Shipping: Available for immediate shipment
All Sizes
Purchase history
Draco Mechanical Supply
BLUE-GARD® Style 3000
Ring Gasket, Aramid Fiber with Nitrile Binder(NBR) Nitrile(NBR), 4 in. ASME B16.5 Class 150, 0.125 in. Thick
37706-1104
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Excellent seal ability
- Unique blend of aramid fibers
- Fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels
- Cuts operational costs through reduced: Waste, maintenance, stocked inventory, fluid loss, and energy consumption
- Media: Water, aliphatic hydrocarbons, oils, and gasoline
- High strength cast iron body and bonnet conform to ASTM A 126, Class B material
- Include hand wheels
- 3" valves and larger have bosses cast into the bodies and bonnets class 125
- Comply with MSS SP-70, ANSI B16.10, class 125 for face-to-face dimensions, and ANSI B16.1, class 125 for end flanges
Specifications
- ASME:
- ASME B16.5
- ASTM:
- ASTM F-36, ASTM F-38, ASTM F-152, ASTM F-1315, ASTM F-433, ASTM D-149 , ASTM F-586, ASTM F-104
- Collection:
- BLUE-GARD® Style 3000
- Color Finish Category:
- Blues
- Color Finish Name:
- Blue
- Diameter - Inside 1:
- 4-1/2 in
- Diameter - Outside:
- 4 in
- Fits Pipe Size:
- 4 in
- Fitting Type:
- Ring, Gasket
- Material Type:
- Aramid Fiber with Nitrile Binder(NBR)
- Maximum Temperature:
- 700
- Minimum Temperature:
- -100
- NSF Certified:
- No
- Origin:
- Global
- Pressure - Maximum:
- 1000 psi
- Pressure Class:
- 150#
- Thickness:
- 1/8 in
