24,000 BTU - Multi-Position Air Handler - Single Zone - 115/208/230V - R-454B
Durastar
24,000 BTU - Multi-Position Air Handler - Single Zone - 115/208/230V - R-454B
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Durastar
24,000 BTU - Multi-Position Air Handler - Single Zone - 115/208/230V - R-454B
DRUM1824S2A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.

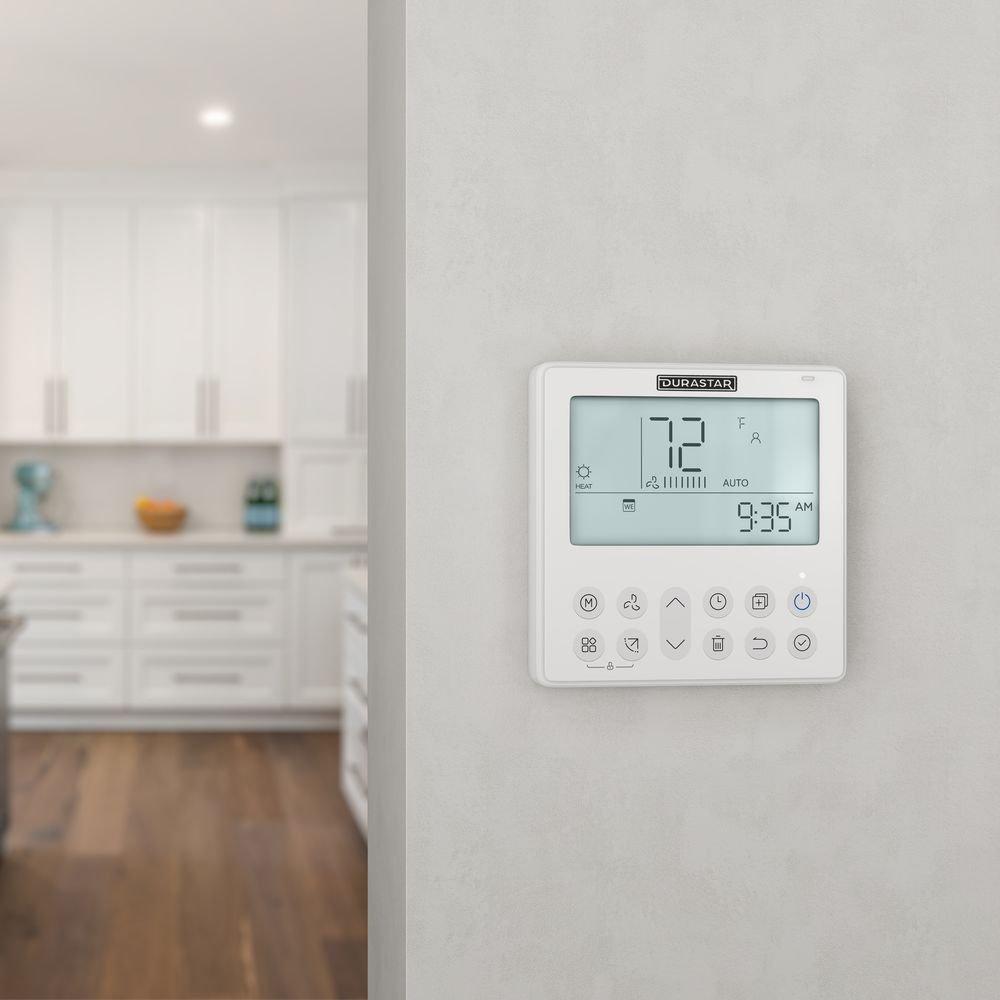

- Communicating when using 7-Day Programmable Thermostat Included
- 24V Thermostat Compatible
- Multi-positional Configuration
- Constant Volume Variable Speed Motor
- Filter Rack Included
- All-aluminum Coil with Anti-corrosion Fin Coating
- Field Convertible to 115V Operation
- Designed for Sustainability with Low GWP and Refrigerant Detection System
Product Information
-
A2L Compatible
Dimensions & Measurements
Height
45 in
Liquid Line (OD)
3/8 in
Suction Line (OD)
3/4 in
Tonnage
1.5 - 2 Ton
Tonnage
1.5 - 2 Ton
Weight
106 lb
Width
17-1/2 in
Characteristics & Features
A2L Compatible
Yes
Coil Type
Spine Fin
Communicating
Communicating
EER2
13.5
EER2 Range
11.7 - 23.0
HSPF2 Range
7.5 - 25.0
Line Set Connection Type
Flared
Material
Steel
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Refrigerant
R-454B
Refrigeration Control Type
EEV
SEER2 Range
15.2 - 40.0
Electrical & Operational Information
BTU
24000
BTU Cooling Rating
24000 Btu/h
BTU Heat Rating
24000 Btu/h
Maximum Overcurrent Protection (MOP)
15
MBH
24
Minimum Circuit Ampacity (MCA)
4
Phase
Single Phase
Power Source
Electric
Stages
Single
Volts
115/208/230V
Warranty & Product Information
ETL Listed
Yes
Type
DRUM1824S2A
UPC
781889999240
