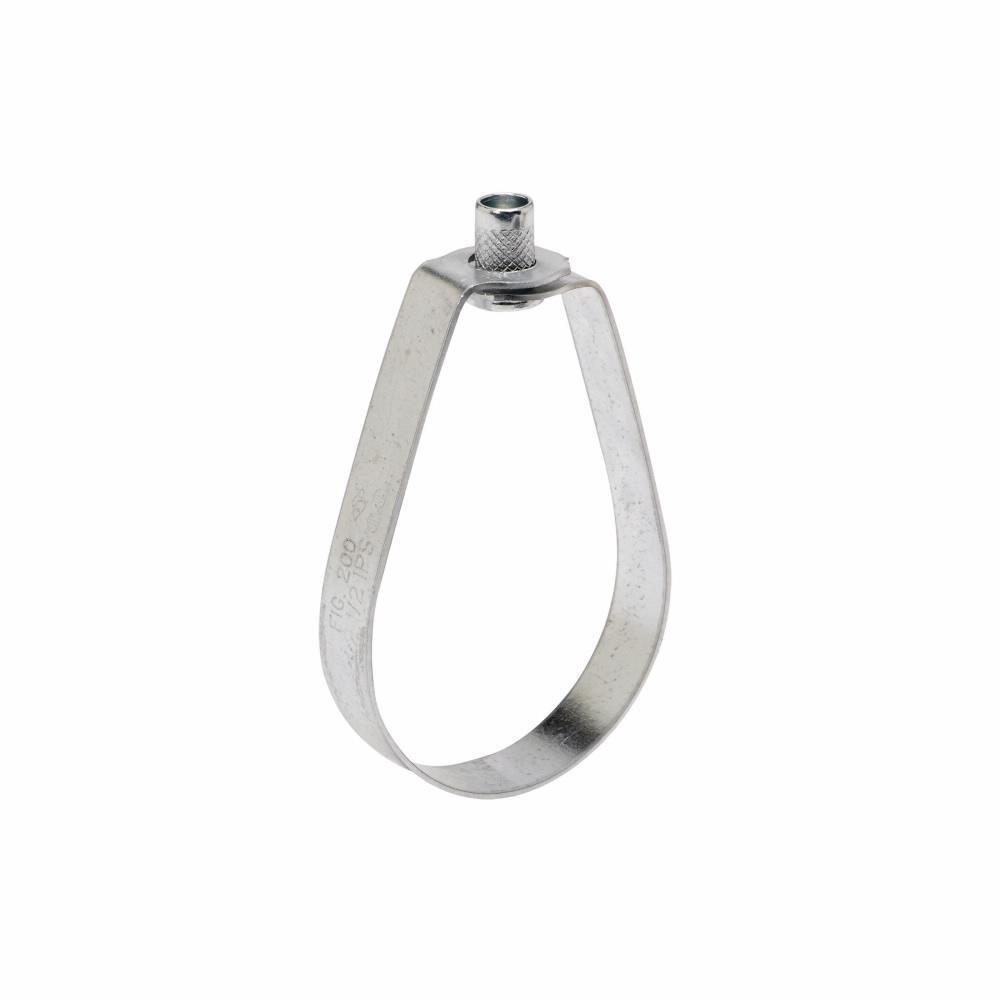

4 in. Galvanized NFPA Adjustable Swivel Ring Hanger
Eaton B-Line Series
4 in. Galvanized NFPA Adjustable Swivel Ring Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 50 Pallet: 1800Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Eaton B-Line Series
4 in. Galvanized NFPA Adjustable Swivel Ring Hanger
Y065040
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- For fire sprinkler and other general piping purposes. Knurled swivel nut design permits hanger adjustment after installation
- 2 in (65 mm) thru 8 in (200 mm)) spring tension on nut holds it securely in hanger before installation. Knurled nut is easily removed
- MSS SP-69 & SP-58, type 10
- For additional information, view the TOLCO fire protection solutions catalog. Please note, items are subject to change without notification
- Eaton B-Line series TOLCO trimline adjustable band hanger
- 0.9970" H x 6.8090" L x 4.7420" W
- Steel
- Pre-galvanized
- 650 temp
- 4" pipe size
Dimensions & Measurements
Fits Pipe Size
4 in
Height
7-3/8 in
Length
6-4/5 in
Rod Size (in)
3/8 in
Width
4-37/50 in
Characteristics & Features
Coating
Pre-Galvanized
Material
Steel
Work Load Limit
1000 lb
Warranty & Product Information
ANSI
ANSI SP-58, ANSI SP-69
Application
Fire Protection
FM Approved
Yes
MSS
MSS SP-58, MSS SP-69
Product Type
Adjustable Band Hanger
UL Listed
Yes
UPC
782051706888
