3/4 in. Cast Iron 200# Threaded Lube Plug Valve

Flowserve Nordstrom

Figure 142 3/4 in. Cast Iron 200# Threaded Lube Plug Valve

  • Fast #
  • Part #N142ILSF
  • Item #1785003
  • Manufacturer Part #142ILS 3/4
3.1 out of 5 Customer Rating
Brand image

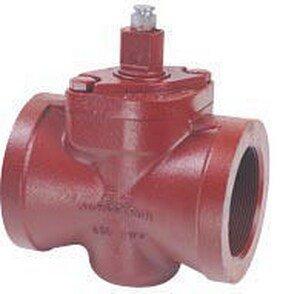

Flowserve Nordstrom Cast Iron 400 psig Threaded Wrench Plug Valve
Flowserve Nordstrom Cast Iron 400 psig Threaded Wrench Plug Valve
Flowserve Nordstrom

Figure 142 3/4 in. Cast Iron 200# Threaded Lube Plug Valve

  • Fast #
  • Part #N142ILSF
  • Item #1785003
  • Manufacturer Part #142ILS 3/4
3.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • 200 CWP (13.8 bar)
  • 400 psig (27.6 bar) test
  • Figure 142 - Threaded, wrench-operated, sizes 1/2 to 4
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
Threaded
End Connection 2
Threaded
End Connections
Threaded
Length
4-1/2 in
Pressure Class
200#
Pressure - Maximum
400 psig
Valve Size
3/4 in
Width
2-3/5 in
Characteristics & Features
Collection
Figure 142
Material
Cast Iron, Metal
Valve Body Material
Cast Iron
Valve Body Style
Threaded
Valve Bonnet Type
Bolted
Valve Operator
Wrench
Valve Port Opening
Full Port
Valve Seat Material
Metal
Valve Stem
Non-Rising
Valve Type
Plug Valve
Warranty & Product Information
ANSI
ANSI B1.20.1, ANSI B16.1, ANSI B16.10, ANSI Class 125
ASME
ASME B1.20.1, ASME B16.1, ASME B16.10, ASME Class 125
ASTM
ASTM A-126 Class B
MSS
MSS SP-78
