1/2 in. Stainless Steel Full Port FPT Locking Lever 1000# Ball Valve
FNW®

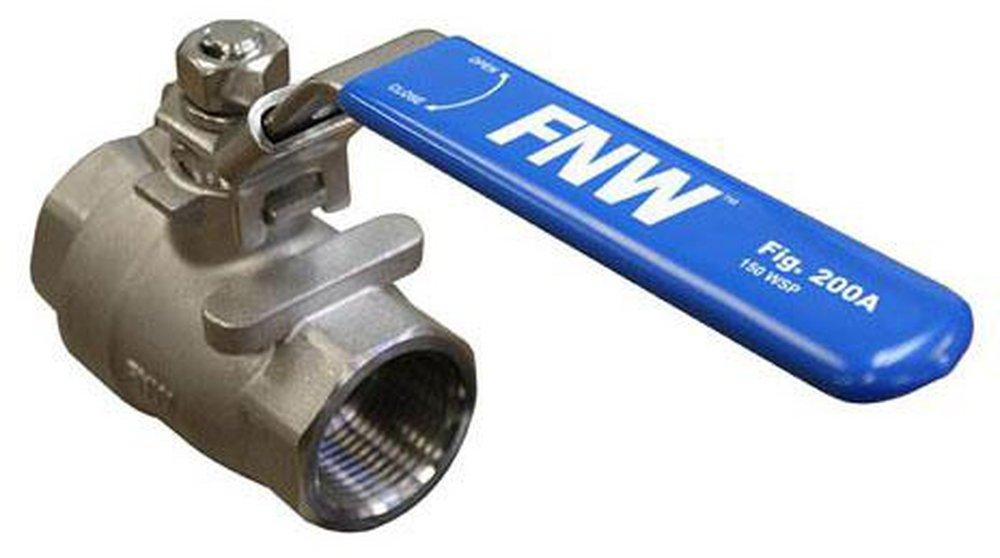

Figure 200A 1/2 in. Stainless Steel Full Port FPT Locking Lever 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 60 Pallet: 2400Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 200A
1/2 in. Stainless Steel Full Port FPT Locking Lever 1000# Ball Valve
200AD
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1/2 in. stainless steel ball valve
- End Connections: Threaded
- Valve Length: 2.44 in.
- Valve Pressure Class: 1000#
- Recommended Application: Steam, water
- Saturated steam 150 psi
- Adjustable packing
- Investment cast body
- Manufactured silicone-free
- Vented ball
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-11/20 in
Pressure Class
1000#
Pressure - Maximum
1000 psi
Valve Size
1/2 in
Weight
1.15 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure 200A
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Stainless Steel
Valve Body Style
2 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
1000
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B1.20.1, ASME B16.34
ASTM
ASTM A-194 Grade 8, ASTM A-351 Grade CF8
FM Approved
No
IAPMO Listed
Yes
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Steam, Potable Water
UL Listed
No
UPC
781889219232
