2 x 10-1/2 in. Stainless Steel IPS Flexible Connector
FNW®

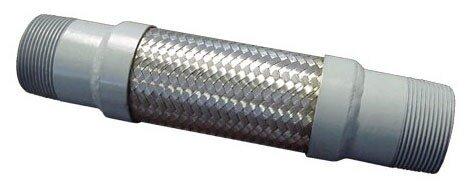

Figure 30T 2 x 10-1/2 in. Stainless Steel IPS Flexible Connector
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 20 Pallet: 1100Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
FNW®
Figure 30T
2 x 10-1/2 in. Stainless Steel IPS Flexible Connector
SDHS-CSP2X105
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 450 psi working pressure
- Longer service life
- Increased pressure capacity
- Greater fatigue resistance due to flex
- Increased temperature capacity of media
- Greater protection of annular hose
- Acceptance of thermal expansion
- Threaded end metal braided flexible connector
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
NPT
End Connections
NPT
Fitting Size 1
2 in
Fitting Size 2
2 in
Fitting Sizes
2 in
Length
10-1/2 in
Pressure - Maximum
675 psi
Characteristics & Features
Clean Bagged
No
Collection
Figure 30T
Fitting Type
Connector
Material
Carbon Steel, Stainless Steel
Material Type
304, 321
Warranty & Product Information
ASTM
ASTM A-53
FM Approved
No
IAPMO Listed
No
NSF Certified
No
UL Listed
No
UPC
781889080474
