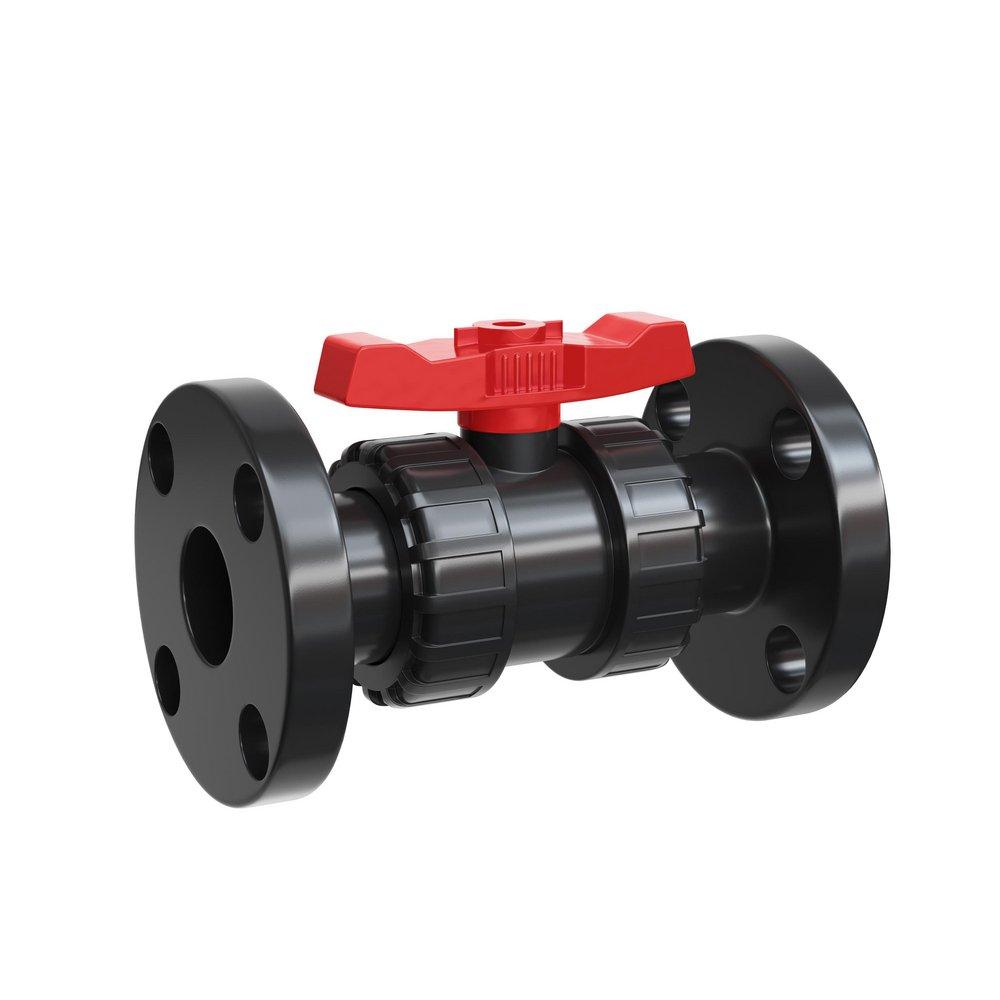

4 in. Plastic PVC Full Port Flanged 150# Ball Valve
FNW®
Figure 340NAF 4 in. Plastic PVC Full Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 2
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FNW®
Figure 340NAF
4 in. Plastic PVC Full Port Flanged 150# Ball Valve
FNW340NAFEP
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 4 in. pvc ball valve
- End Connections: Flanged
- Valve Length: 12.91 in.
- Maximum Temperature: 122 degrees (F)
- Valve Pressure Class: 150#
- Recommended Application: Water
- NSF 14, NSF 372, NSF 61, NSF 61 Annex G
- ANSI 14, ANSI 372, ANSI 61, ANSI 61 Annex G
- Full port design
- O-ring energized seats
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
15-1/5 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
4 in
Weight
17.73 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure 340NAF
Handle Material
ABS
Material
Plastic
Material Type
PVC
Valve Body Material
PVC
Valve Body Style
1 piece
Valve Bonnet Type
Union
Valve Disc Material
EPDM
Valve Operator
T-handle
Valve Port Opening
Full Port
Valve Seat Material
Teflon
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
122
Minimum Temperature
41
Pressure - High
150
Temperature Range
41 to 122 Deg F
Warranty & Product Information
ANSI
ANSI 14, ANSI 372, ANSI 61, ANSI 61 Annex G
ASME
ASME B16.5 Class 150
ASTM
ASTM D-1784
CSA Certified
CSA 61
FM Approved
No
IAPMO Listed
No
MA Approved
Yes
NSF
NSF 14, NSF 372, NSF 61, NSF 61 Annex G
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
No
UPC
781889370803
