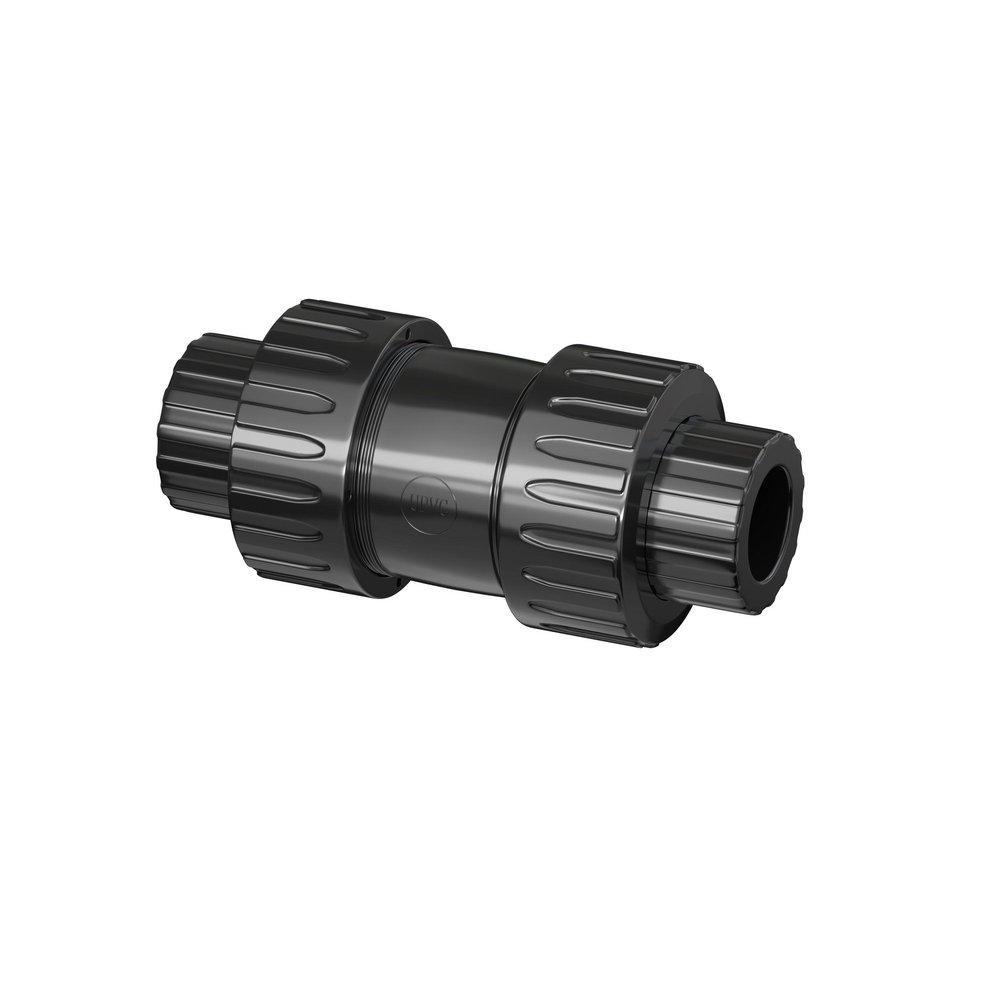

1-1/2 in. PVC NPT x Socket Weld True Union Ball Check Valve
FNW®
Figure 345A 1-1/2 in. PVC NPT x Socket Weld True Union Ball Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 12Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 345A
1-1/2 in. PVC NPT x Socket Weld True Union Ball Check Valve
FNW345AEJ
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1-1/2 in. pvc ball check valve
- End Connections: Threaded x SWT
- Valve Length: 6.937 in.
- Maximum Temperature: 122 degrees (F)
- Valve Pressure Class: 150#
- Recommended Application: Gas
- ANSI B1.20.1
- 5 PSI minimum shutoff
- For vertical and horizontal installation
- With flow direction arrow
Dimensions & Measurements
End Connection 1
NPT
End Connection 2
Socket Weld
End Connections
NPT x Socket Weld
Length
6-47/50 in
Pressure Class
150#
Valve Size
1-1/2 in
Weight
2.25 lb
Width
3-21/25 in
Characteristics & Features
Collection
Figure 345A
Material
Plastic
Material Type
PVC
Valve Body Material
PVC
Valve Body Style
Ball
Valve Bonnet Type
Union
Valve Seat Material
EPDM
Valve Type
Check Valve
Warranty & Product Information
ANSI
ANSI B1.20.1
ASTM
ASTM D-1498, ASTM D-1784, ASTM D-2464, ASTM D-2467, ASTM F-1498, ASTM F-439
IAPMO Listed
Yes
NSF
NSF 14-2016
NSF Certified
Yes
UL Listed
No
UPC
781889370285
