1 in. Stainless Steel Full Port Socket Weld 1000# Ball Valve
FNW®

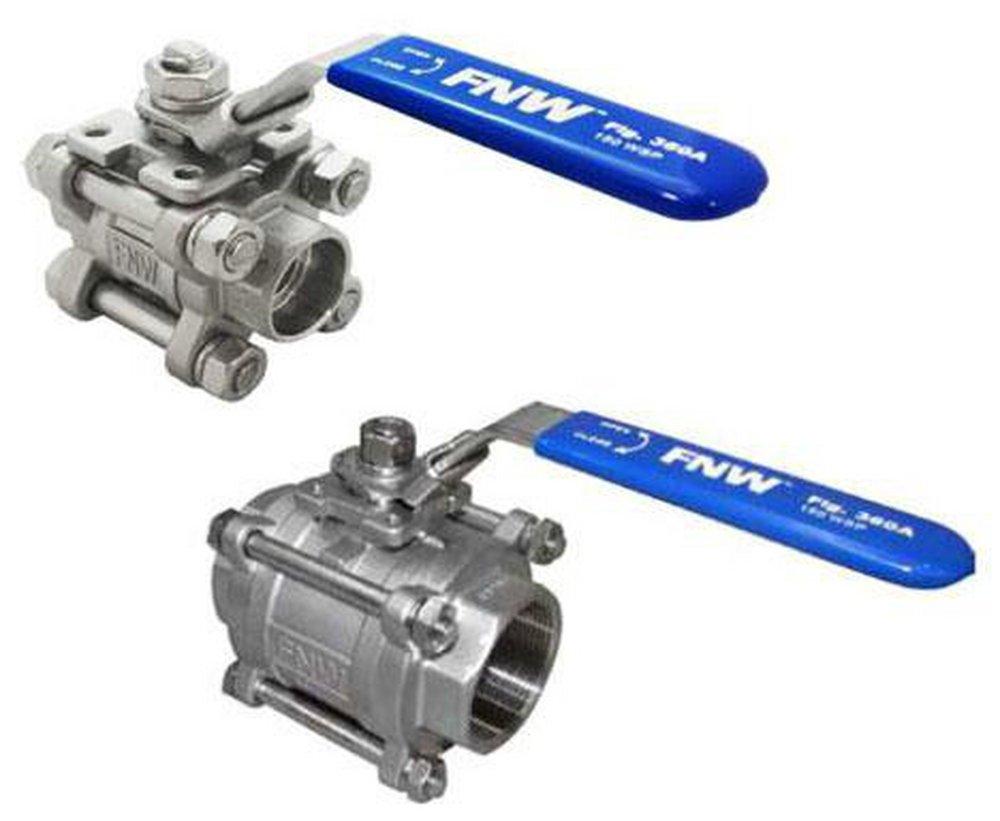

Figure 360A 1 in. Stainless Steel Full Port Socket Weld 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 20 Pallet: 720Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 360A
1 in. Stainless Steel Full Port Socket Weld 1000# Ball Valve
FNW360ASWG
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1 in. stainless steel ball valve
- End Connections: Socket Weld
- Valve Length: 3.35 in.
- Maximum Temperature: 392 degrees (F)
- Valve Pressure Class: 1000#
- Recommended Application: Water, oil, gas
- Saturated steam 150 psi
- Blowoutproof stem design
- Investment cast body
- Manufactured silicone-free
Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
Socket Weld
End Connections
Socket Weld
Length
3-7/20 in
Pressure Class
1000#
Pressure - Maximum
1000 psi
Valve Size
1 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 360A
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Valve Body Material
Stainless Steel
Valve Body Style
3 piece
Valve Operator
Locking Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
392
Minimum Temperature
-4
Pressure - High
1000
Temperature Range
-4 to 392 Deg F
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
ASME
ASME B1.20.1, ASME B16.34
ASTM
ASTM A-351
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
MSS
MSS SP-110
NSF Certified
No
Recommended Valve Application
Gas, Oil, Steam, Potable Water
UL Listed
No
UPC
781889283943
