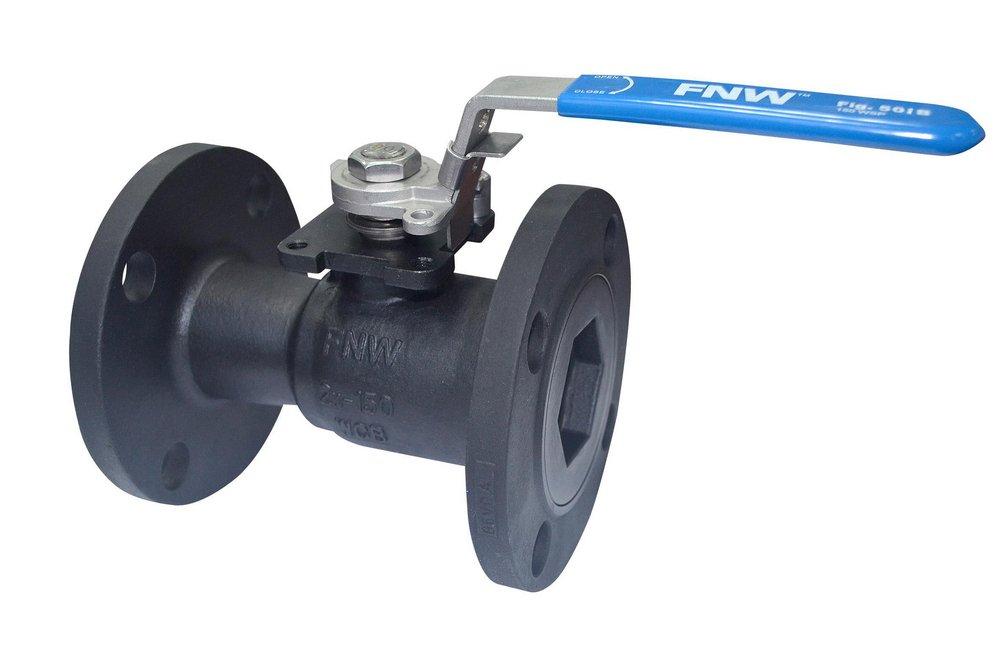

6 in. Carbon Steel Standard Port Flanged 150# Ball Valve
FNW®
Figure 501C 6 in. Carbon Steel Standard Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 8Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 501C
6 in. Carbon Steel Standard Port Flanged 150# Ball Valve
FNW501CFU
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 6 in. carbon steel ball valve
- End Connections: Flanged
- Valve Length: 10.5 in.
- Valve Pressure Class: 150#
- Actuator mounting pad
- Adjustable packing
- Anti-static design
- Blowoutproof stem design
- Investment cast body
- Manufactured silicone-free
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
10-1/2 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
6 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 501C
Handle Material
Stainless Steel
Material
Carbon Steel
Valve Body Material
Carbon Steel
Valve Body Style
1 piece
Valve Operator
Lever Handle
Valve Port Opening
Standard Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150
Warranty & Product Information
ANSI
ANSI Z1157-2014e1
API
API 598, API 607
ASME
ASME B16.34, ASME B16.5
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
NSF Certified
No
UL Listed
No
UPC
781889340677
