3 in. Cast Iron Flanged Gate Valve
FNW®

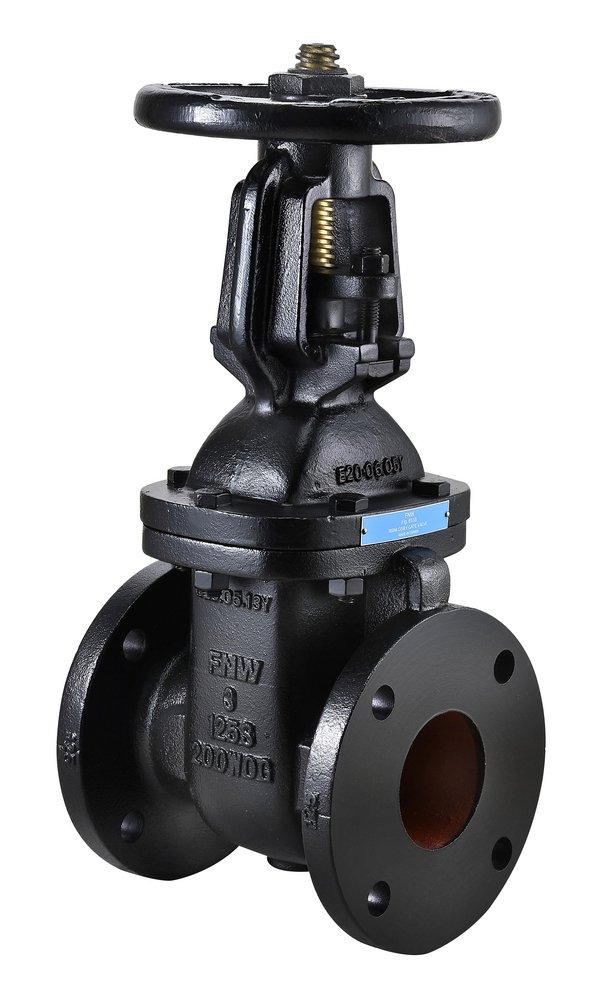

Figure 651B 3 in. Cast Iron Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 25Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 651B
3 in. Cast Iron Flanged Gate Valve
FNW651BM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 200 PSI WOG Non-Shock (-20° F to 150° F)
- 125 PSI WSP (Saturated Steam to 353° F)
- Flat Faced Flanges
- Rising Stem OS&Y
- Tapered Solid Wedge
- Body Guide Ribs
- Back Seat Stop
- Class 125 Flanges: ANSI B16.1
- Pressure/Temperature Rating: ANSI B16.1
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
8 in
Pressure Class
125#
Pressure - Maximum
200 psi
Valve Size
3 in
Weight
60 lb
Characteristics & Features
Collection
Figure 651B
Material
Cast Iron
Valve Body Material
Cast Iron
Valve Operator
Handwheel
Valve Seat Material
Bronze
Valve Stem
Rising
Electrical & Operational Information
Pressure - High
125
Warranty & Product Information
ANSI
ANSI B16.1, ANSI B16.10
ASTM
ASTM A126 Class B
FM Approved
No
MSS
MSS SP-70
Recommended Valve Application
Gas, Oil, Steam, Water
UL Listed
No
UPC
781889394281
