4 in. Stainless Steel Full Port Flanged 150# Ball Valve
FNW®

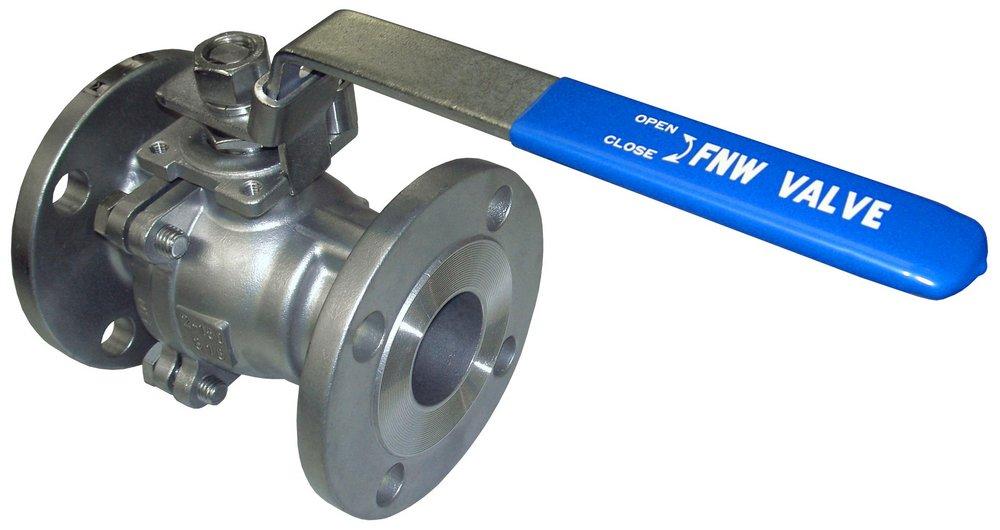

Figure 660A 4 in. Stainless Steel Full Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 96
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 660A
4 in. Stainless Steel Full Port Flanged 150# Ball Valve
FNW660AP
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 4 in. stainless steel ball valve
- End Connections: Flanged
- Valve Length: 9 in.
- Valve Pressure Class: 150#
- ANSI B16.10
- Adjustable packing
- Anti-static design
- Blowoutproof stem design
- Economy ball valve
- Manufactured silicone-free
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
9 in
Pressure Class
150#
Pressure - Maximum
150 psi
Valve Size
4 in
Characteristics & Features
Clean Bagged
No
Collection
Figure 660A
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Valve Body Material
Stainless Steel
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150
Warranty & Product Information
ANSI
ANSI B16.10, ANSI Z1157-2014e1
API
API 598
ASME
ASME B16.5
ASTM
ASTM A-351
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 5211
NSF Certified
No
UL Listed
No
UPC
781889291740
