3/8 in. Electrogalvanized Top Mount Beam Clamp
FNW®

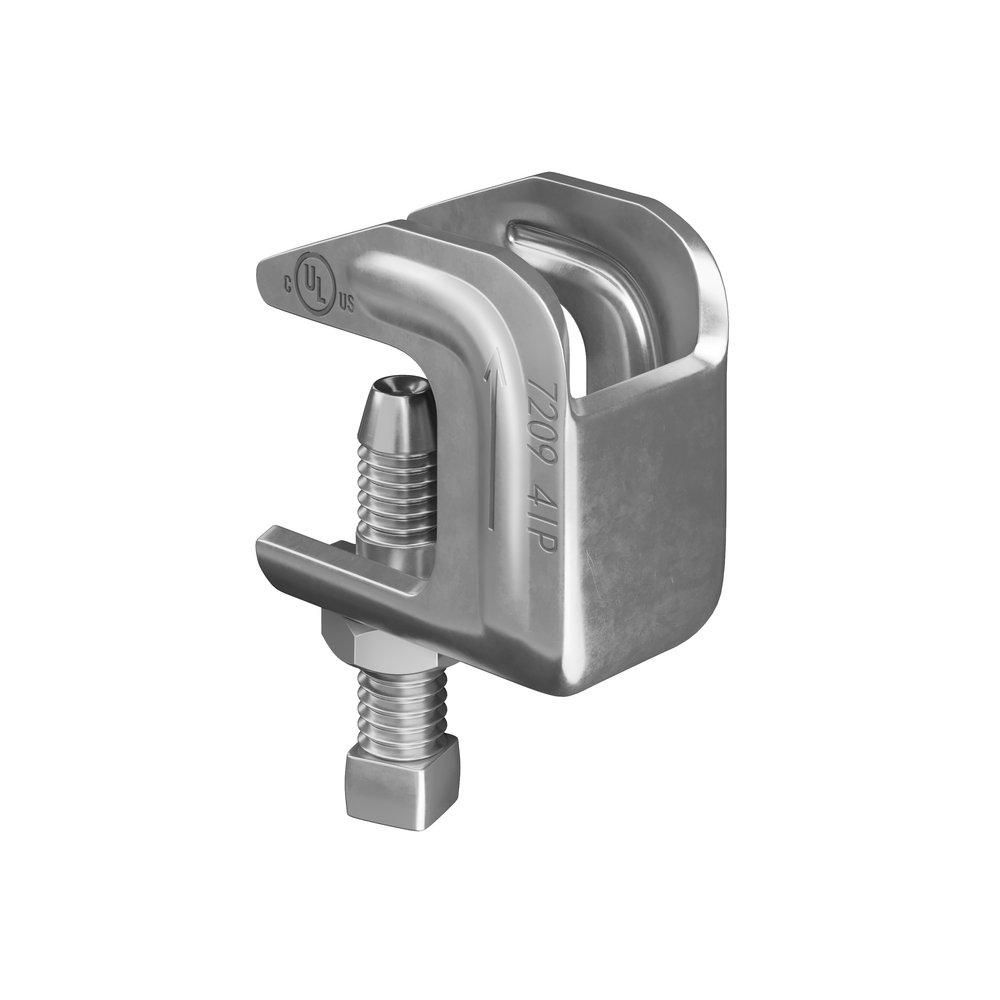

Figure 7209 3/8 in. Electrogalvanized Top Mount Beam Clamp
Package Quantity Info:
Each: 1 Case: 100 Pallet: 6500Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure 7209
3/8 in. Electrogalvanized Top Mount Beam Clamp
FNW7209GC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Pre-galvanized finish
- MSS SP-58, type 19
- Carbon Steel
- Hanger rod not included
- The clamp may be attached to the upper or lower flange but must be in the top orientation
- 3/8" Rod size
- Domestic
Dimensions & Measurements
Fits Pipe Size
4 in
Height
1-9/16 in
Rod Size (in)
3/8 in
Width
1-1/2 in
Characteristics & Features
Coating
Pre-Galvanized
Collection
Figure 7209
Material
Carbon Steel
Work Load Limit
610 lb
Warranty & Product Information
ANSI
ANSI SP-58 Type 19, ANSI SP-69
Application
Commercial
FM Approved
Yes
MSS
MSS SP-58 Type 19
Product Type
Beam Clamp
Type
FNW7209GC
UL Listed
Yes
UPC
781889967966
