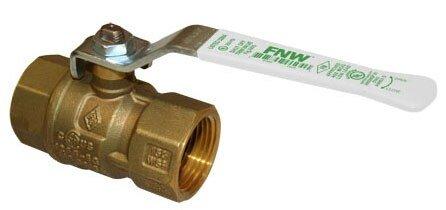

3/4 in. Brass Full Port FPT 600# Ball Valve

FNW®

Figure X415 3/4 in. Brass Full Port FPT 600# Ball Valve

  • Fast #
  • Part #FNWX415F
  • Item #4481008
  • Manufacturer Part #FNWX415F
4.2 out of 5 Customer Rating
Brand image
FNW® Brass Full Port NPT 600# Ball Valve
FNW® Brass Full Port NPT 600# Ball Valve
FNW®

Figure X415 3/4 in. Brass Full Port FPT 600# Ball Valve

  • Fast #
  • Part #FNWX415F
  • Item #4481008
  • Manufacturer Part #FNWX415F
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 25 Case: 50 Pallet: 3200
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available
    26  in  Hilliard, OH
    Available in 7 stores nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • 3/4 in. brass ball valve
  • End Connections: Threaded
  • Valve Length: 2.46 in.
  • Maximum Temperature: 149 degrees (F)
  • Valve Pressure Class: 600#
  • FM & CSA Approved (1/2 in.~2 in.)
  • NSF 372, NSF 61G
  • ANSI B1.20.1
  • 2 Piece valve body with full port opening
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-23/50 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
3/4 in
Weight
0.70 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X415
Handle Material
Steel
Material
Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
149
Minimum Temperature
-40
Pressure - High
400
Temperature Range
-40 to 149 Deg F
Warranty & Product Information
ANSI
ANSI B1.20.1, ANSI Z21.15, ANSI 61, ANSI 372
ASME
ASME B16.33, ASME B16.44
CSA Certified
CSA 9.1;CSA Class 3371-08;CSA Class 3371-90;CSA Class 3371-92;CSA Class 3371-08;CSA Class 3371-10;CSA Class 3371-12
FM Approved
Yes
IAPMO Listed
No
ISO
ISO 9002
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61, NSF 61-G
NSF Certified
Yes
Recommended Valve Application
Potable Water, Oil, Gas
UL Listed
UL 125
UPC
781889244272
