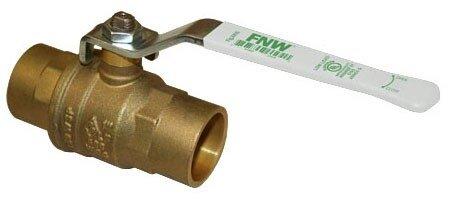

3/4 in. Brass Full Port Sweat 600# Ball Valve
FNW®
Figure X416 3/4 in. Brass Full Port Sweat 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 30 Case: 60 Pallet: 2100Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure X416
3/4 in. Brass Full Port Sweat 600# Ball Valve
FNWX416F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3/4 in. brass ball valve
- End Connections: SWT
- Valve Length: 2.78 in.
- Valve Pressure Class: 600#
- Recommended Application: Water, steam, gas, oil
- NSF 372, NSF 61G
- ANSI B16.18
- Full port valve opening
- 100% Electronically Tested in Open & Closed Position at 80 PSI
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Sweat
End Connection 2
Sweat
End Connections
Sweat
Length
2-7/9 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
3/4 in
Weight
0.63 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X416
Handle Material
Steel
Material
Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
600
Warranty & Product Information
ANSI
ANSI B16.18, ANSI 61, ANSI 372
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 61G, NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Gas, Oil, Steam, Potable Water
UL Listed
Yes
UPC
781889244364
