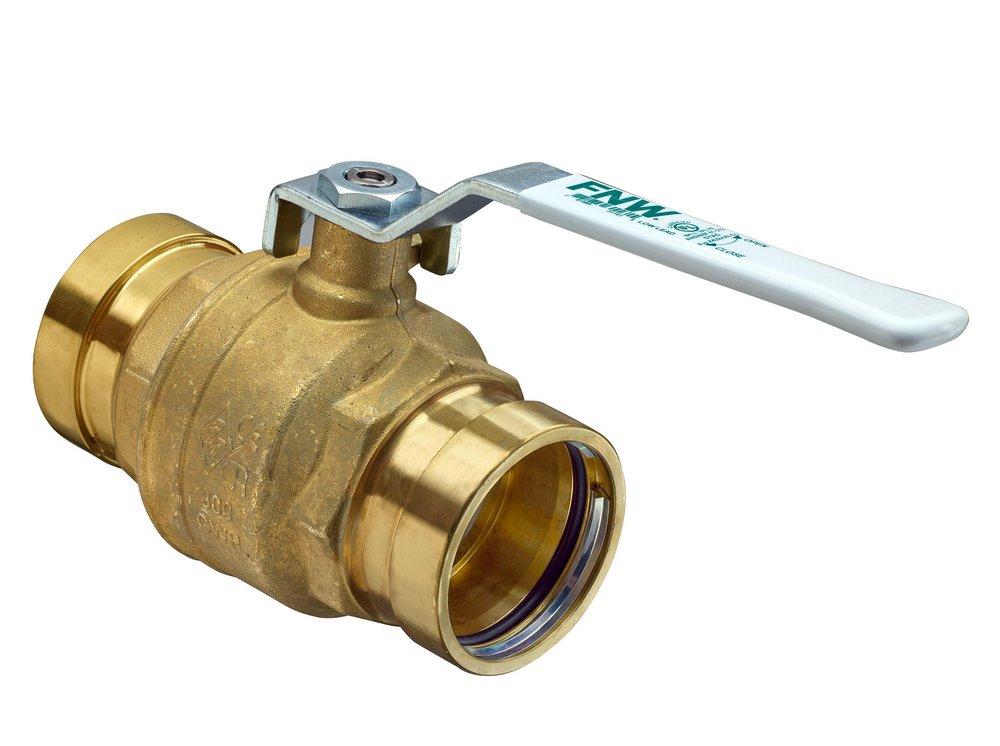

2-1/2 in. Brass Full Port Press Ball Valve
FNW®
Figure X432 2-1/2 in. Brass Full Port Press Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 4 Pallet: 140Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure X432
2-1/2 in. Brass Full Port Press Ball Valve
FNWX432AXLCL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 2-1/2 in. brass ball valve
- End Connections: PXP
- Valve Length: 7.05 in.
- Maximum Temperature: 250 degrees (F)
- Valve Pressure Class: 200#
- Recommended Application: Water
- NSF 372, NSF 61G
- ANSI 61 Annex G
- Full port valve opening
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
7 in
Pressure Class
200#
Pressure - Maximum
200 psi
Valve Size
2-1/2 in
Weight
7.16 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X432
Handle Material
Steel
Material
Forged Brass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
200
Warranty & Product Information
ANSI
ANSI 61 Annex G, ANSI 61, ANSI 372
ASTM
ASTM B-88
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 61G, NSF 372
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
Yes
UPC
781889311615
