3/4 in. Forged Bronze Full Port Sweat 600# Ball Valve
FNW®

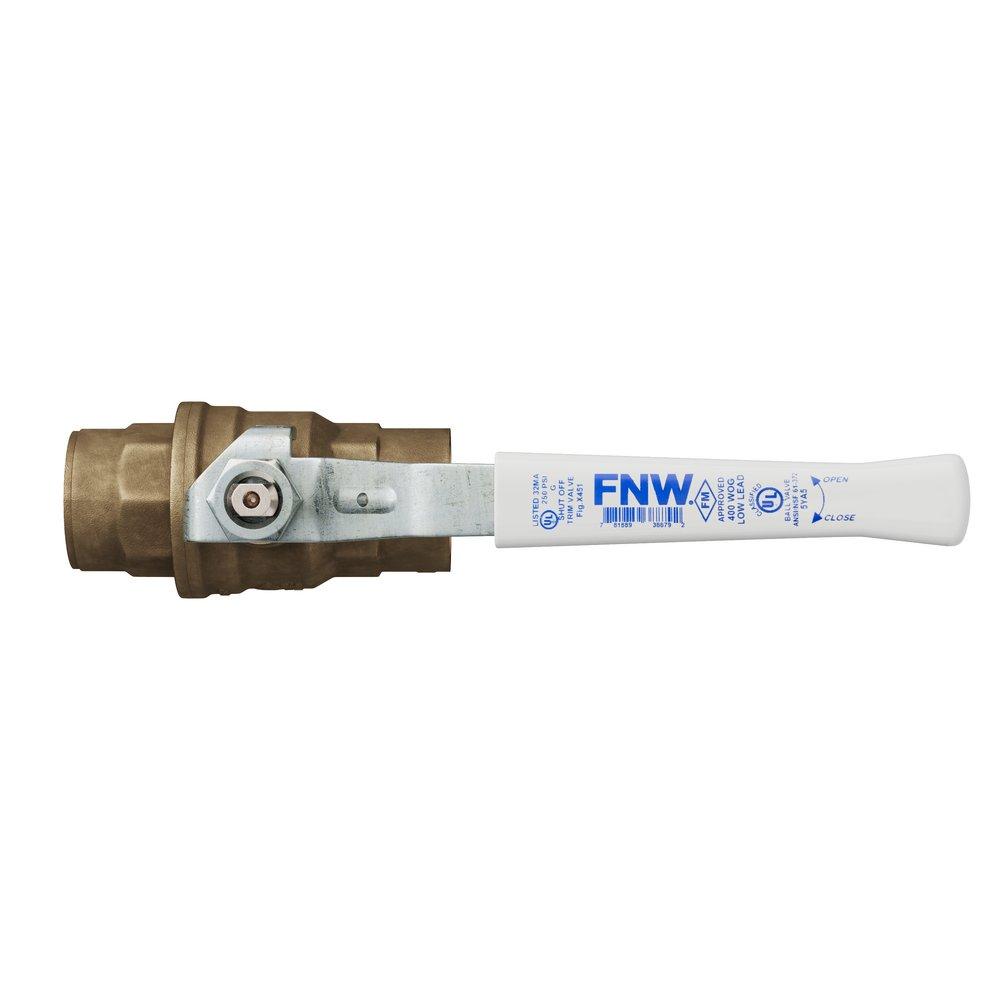

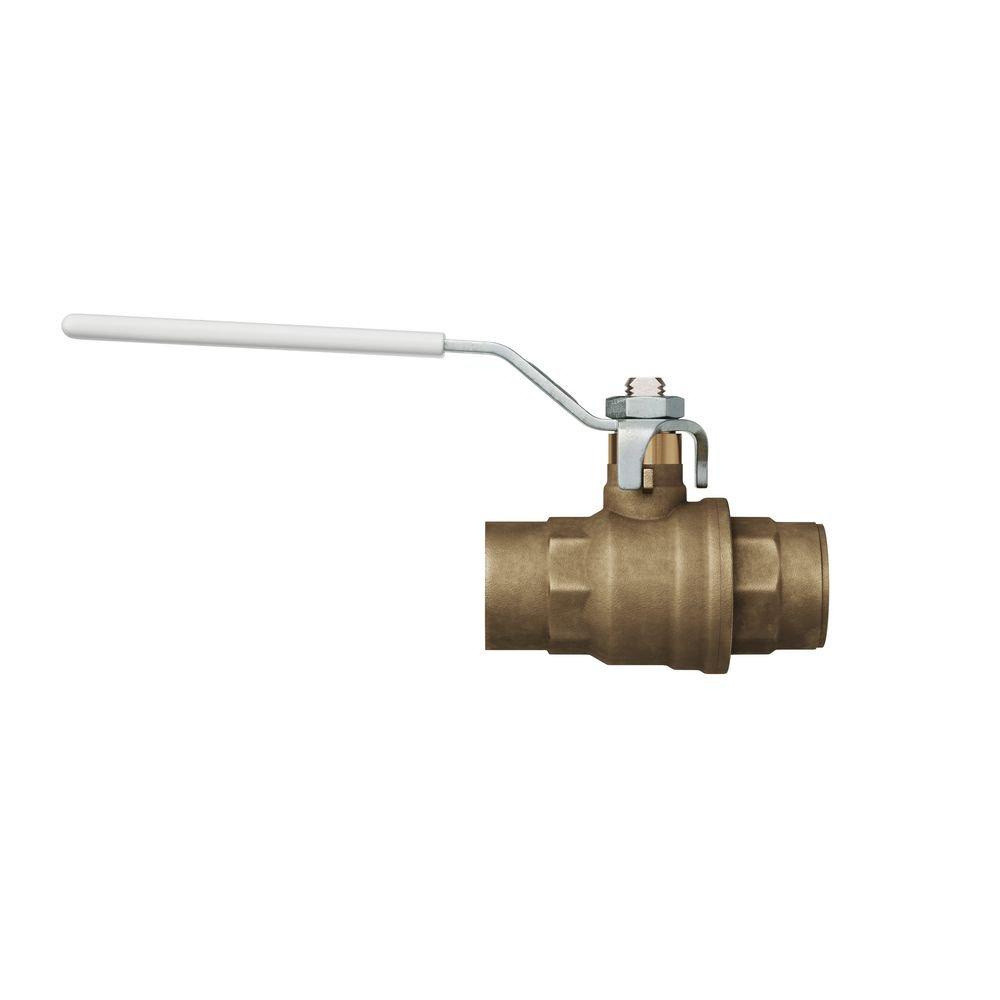

Figure X451 3/4 in. Forged Bronze Full Port Sweat 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 30 Case: 60 Pallet: 2100Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure X451
3/4 in. Forged Bronze Full Port Sweat 600# Ball Valve
FNWX451F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 3/4 in. bronze ball valve
- End Connections: SWT
- Valve Length: 2.78 in.
- Valve Pressure Class: 600#
- Recommended Application: Water, oil, gas
- NSF 372, NSF 61
- ANSI B16.18
- 100% Electronically Tested in Open & Closed Position at 80 PSI
- Meets MSS SP-110 Standards
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Sweat
End Connection 2
Sweat
End Connections
Sweat
Length
2-39/50 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
3/4 in
Weight
0.63 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X451
Handle Material
Steel
Material
Forged Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
600
Warranty & Product Information
ANSI
ANSI B16.18
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Potable Water, Oil, Gas
UL Listed
UL 125
UPC
781889388747
