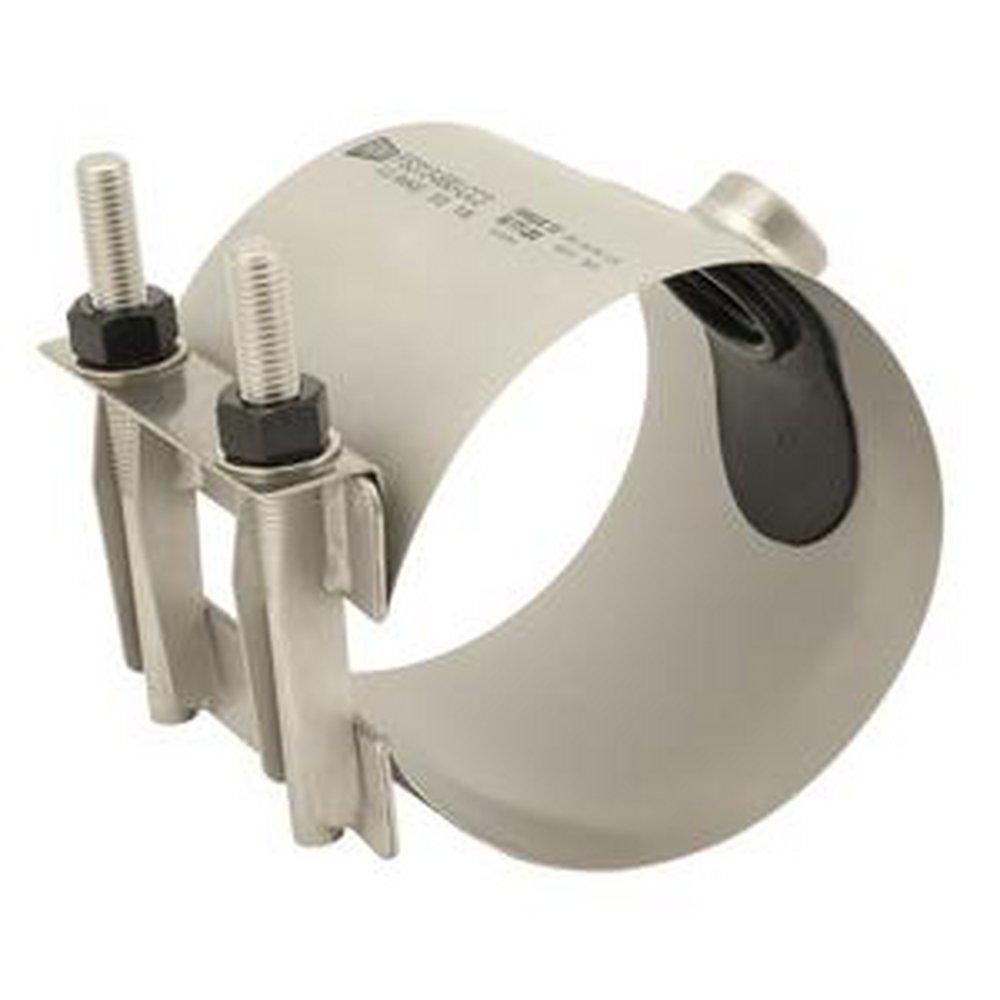

6 x 3/4 in. CC Stainless Steel Single Band Saddle
Ford Meter Box
6 x 3/4 in. CC Stainless Steel Single Band Saddle
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Ford Meter Box
6 x 3/4 in. CC Stainless Steel Single Band Saddle
FS313-690-CC3-U100
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- All components are made of type 304 stainless steel
- All welds are fully passivated for corrosion resistance
- Approved for use on HDPE. If Belleville washers are required, use the prefix FSP313
- Saddles 4" and larger have coined body for gasket retention
- NBR (Buna-N) rubber pad gasket per ASTM D2000 with raised compression seal
- Rated for working pressure equal to the lesser of pipe pressure rating or 250 psi
- Certified to ANSI/NSF 61
- 100% manufactured in the United States of America
Dimensions & Measurements
End Connection 1
CC
End Connections
CC
Fits Pipe Size
6 in
Pressure Class
250#
Range (in)
6.63 in - 6.90 in
Tap Size
3/4 in
Characteristics & Features
Fitting Type
Saddle, Single Band
Material
Rubber, Stainless Steel
Material Type
304, Buna-N
Warranty & Product Information
ANSI
ANSI 61
NSF Certified
Yes
Origin
Domestic
