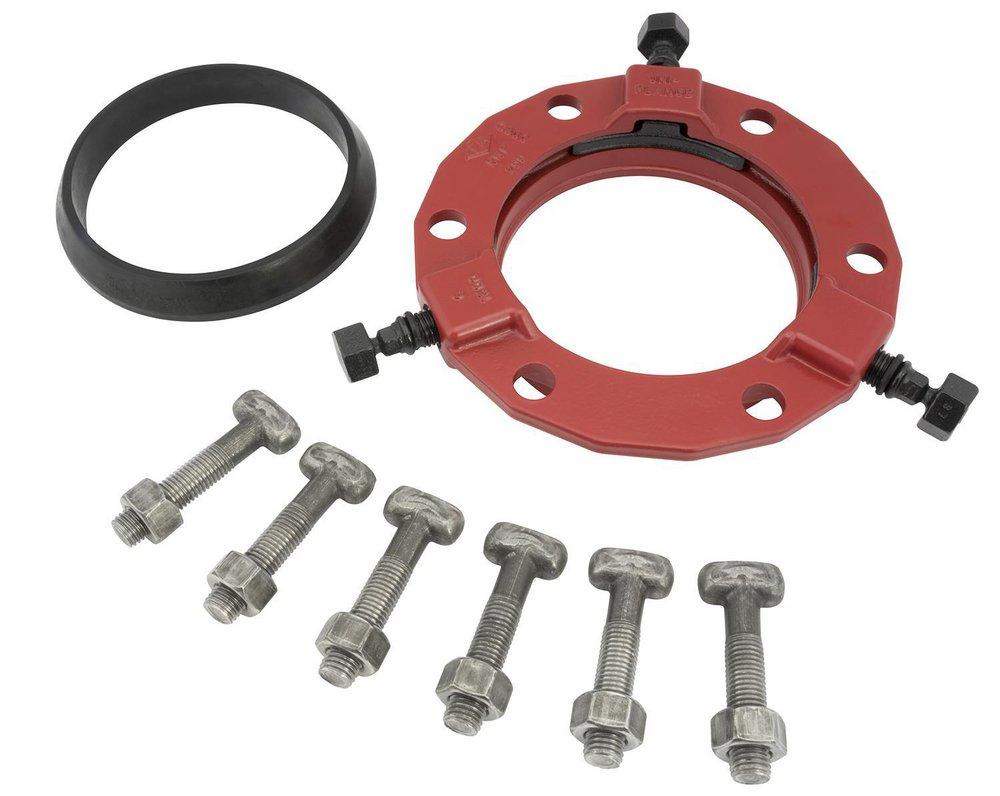

6 in. Ductile Iron Mechanical Joint Retainer
Ford Meter Box
Uni-Flange® 6 in. Ductile Iron Mechanical Joint Retainer
Purchase history
Ford Meter Box
Uni-Flange®
6 in. Ductile Iron Mechanical Joint Retainer
UFR1500R-CA-6-U
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Fits C900, C909 and HDPE
- Auto-Turk actuating screws with heads specially designed to twist off at the correct installation torque, leaving a hex head for future system maintenance if removal is required
- Restraining segments are mechanically retained in pockets
- Series 1500 eliminates the need to pour expensive and time consuming concrete thrust blocks
- UL listed and FM approved for use on listed and approved C900 PVC pipe
- Gland, screws and segments are black epoxy coated using the e-coat process
- Gland colored red for identification purposes
Dimensions & Measurements
End Connection 1
Wedge
End Connections
Wedge
Fits Pipe Size
6 in
Height
15-13/100 in
Weight
18 lb
Characteristics & Features
Coating
E-Coat Epoxy, Blue Fluorocarbon
Collection
Uni-Flange®
Material
Ductile Iron
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Warranty & Product Information
ANSI
ANSI A21.11, ANSI C111
Application
HDPE Pipe, Mechanical Joint, PVC Pipe
ASTM
ASTM A-536 Grade 65-45-12
AWWA
AWWA A-21.11, AWWA C-111
FM Approved
Yes
NSF Certified
No
Origin
Domestic
Product Type
Joint Restraint
UL Listed
Yes
