6 in. Mechanical Joint Ductile Iron Retainer Gland
Ford Meter Box

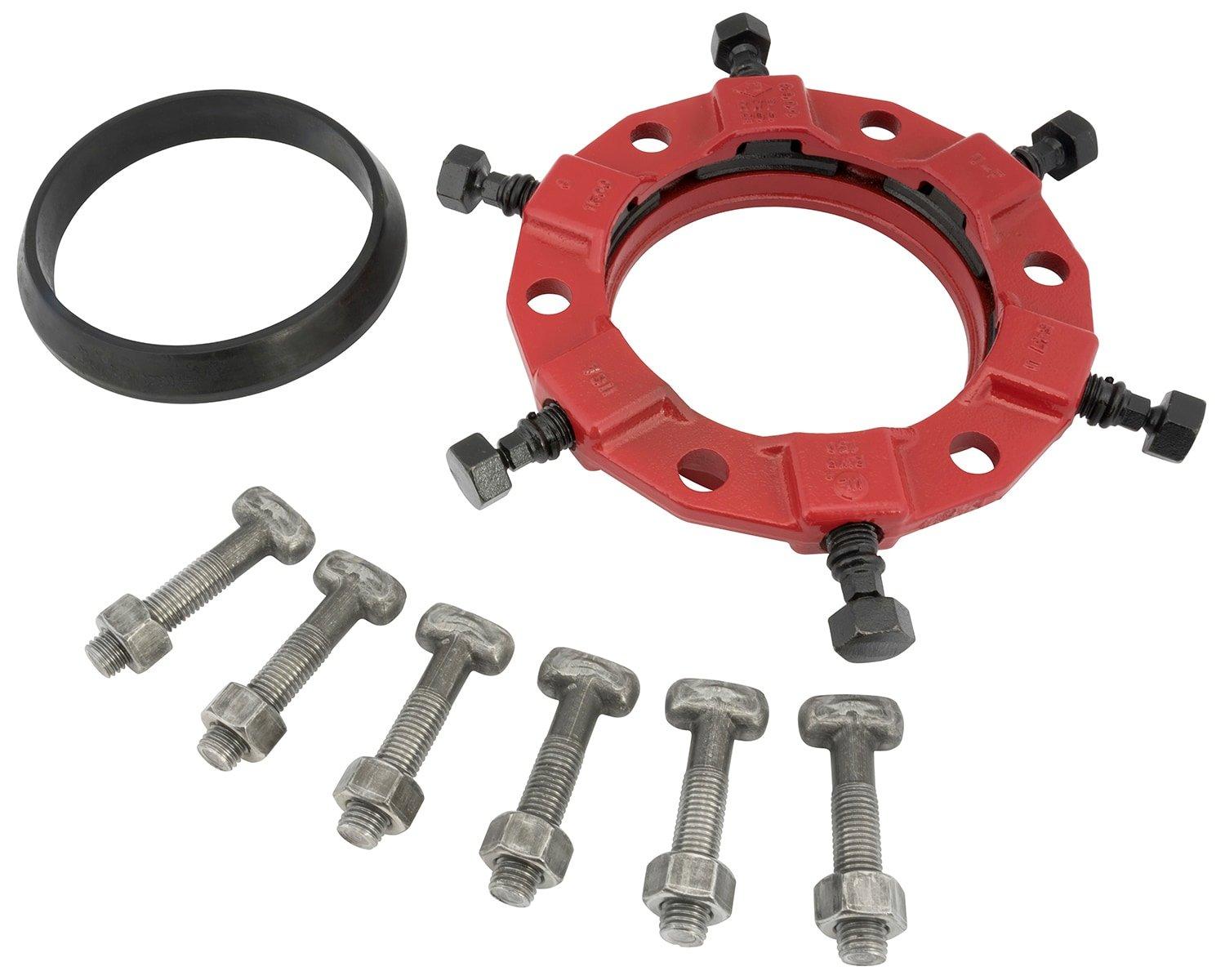

Uni-Flange® 6 in. Mechanical Joint Ductile Iron Retainer Gland
Purchase history
Ford Meter Box
Uni-Flange®
6 in. Mechanical Joint Ductile Iron Retainer Gland
UFR1500-CA-6-U
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Full circle contact and support of the pipe wall
- Auto-torque actuating screws with heads specially designed to twist off at the correct installation torque, leaving a hex head in case future system maintenance or removal is required
- Series 1500 eliminates the need to pour expensive and time consuming concrete thrust blocks
- Restraining segments are mechanically retained in pockets
- Gland, screws and segments are protected with black armorguard e-coat
- Gland colored red for identification purposes
- 6-segment
Dimensions & Measurements
End Connection 1
Mechanical Joint
End Connections
Mechanical Joint
Fits Pipe Size
6 in
Weight
20.1 lb
Characteristics & Features
Coating
Armorguard E-Coat
Collection
Uni-Flange®
Material
Ductile Iron
Proposition 65
WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
Warranty & Product Information
ANSI
ANSI A21.11, ANSI C111
Application
Waterworks, PVC Pipe, HDPE Pipe
ASTM
ASTM A-536 Grade 65-45-12, ASTM A-2241, ASTM F-1674
AWWA
AWWA A-21.11, AWWA C-111
FM Approved
Yes
NSF Certified
No
Origin
Domestic
UL Listed
Yes
