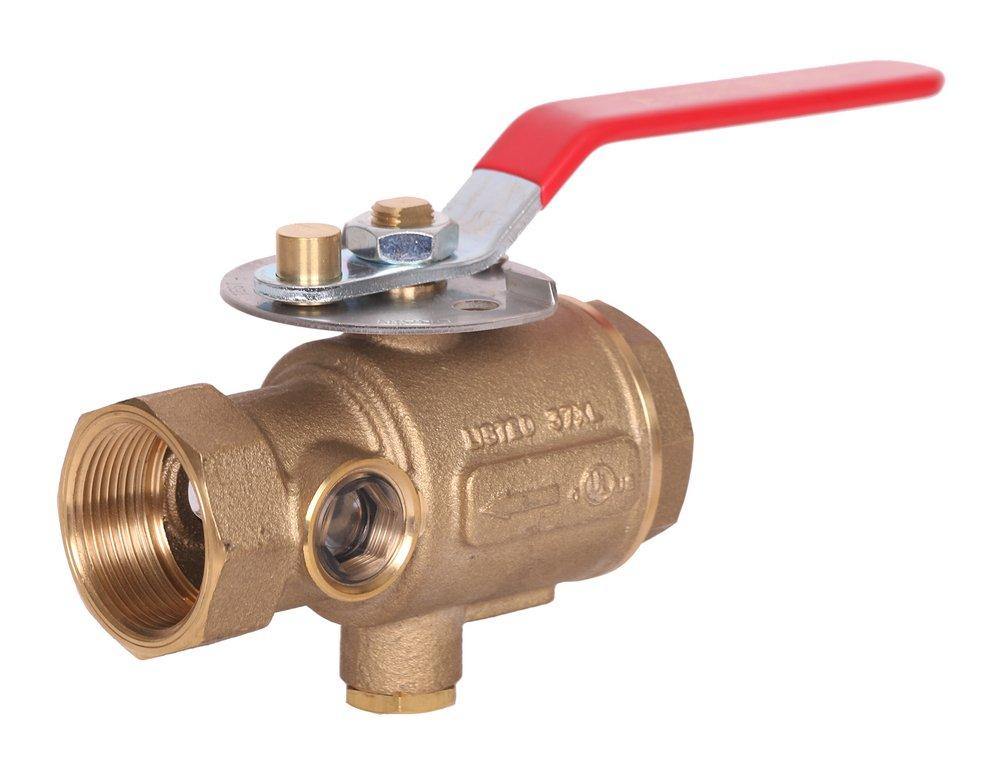

1 in. FNPT Bronze Test and Drain Valve
FPPI®
TrimFit® 1 in. FNPT Bronze Test and Drain Valve
Package Quantity Info:
Each: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
FPPI®
TrimFit®
1 in. FNPT Bronze Test and Drain Valve
4324000506
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Positive positioning of handle for off, test, or drain
- Two threaded or grooved connections
- Large, integral sight glass on both sides allow for maximum visibility when operated
- 1/2" (nominal) test orifice
- UL/ULC listed
- FM approved
- Can be installed in both horizontal and vertical orientations in a small amount of space
- Heavy duty brass construction for extended service life
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Documents
Dimensions & Measurements
End Connection 1
FNPT
End Connection 2
FNPT
End Connections
FNPT x FNPT
Length
8-31/100 in
Pressure Class
175#
Valve Size
1 in
Weight
2.064 lb
Characteristics & Features
Brand Model Compatibility
06-850
Coating
Zinc Plated
Collection
TrimFit®
Installation Type
Horizontal Mount, Vertical Mount
Material
Brass, Carbon Steel, Glass, Plastic, Rubber, Steel
Material Type
Buna-N, PTFE
Valve Body Material
Bronze
Valve Operator
Lever Handle
Valve Seat Material
RTRFE
Valve Type
Test & Drain Valve
Warranty & Product Information
Application
Fire Protection
ASTM
ASTM B-16, ASTM B-584 C84400
FM Approved
Yes
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
Recommended Valve Application
Fire Protection
UL Listed
UL 4074
UPC
879898008272
