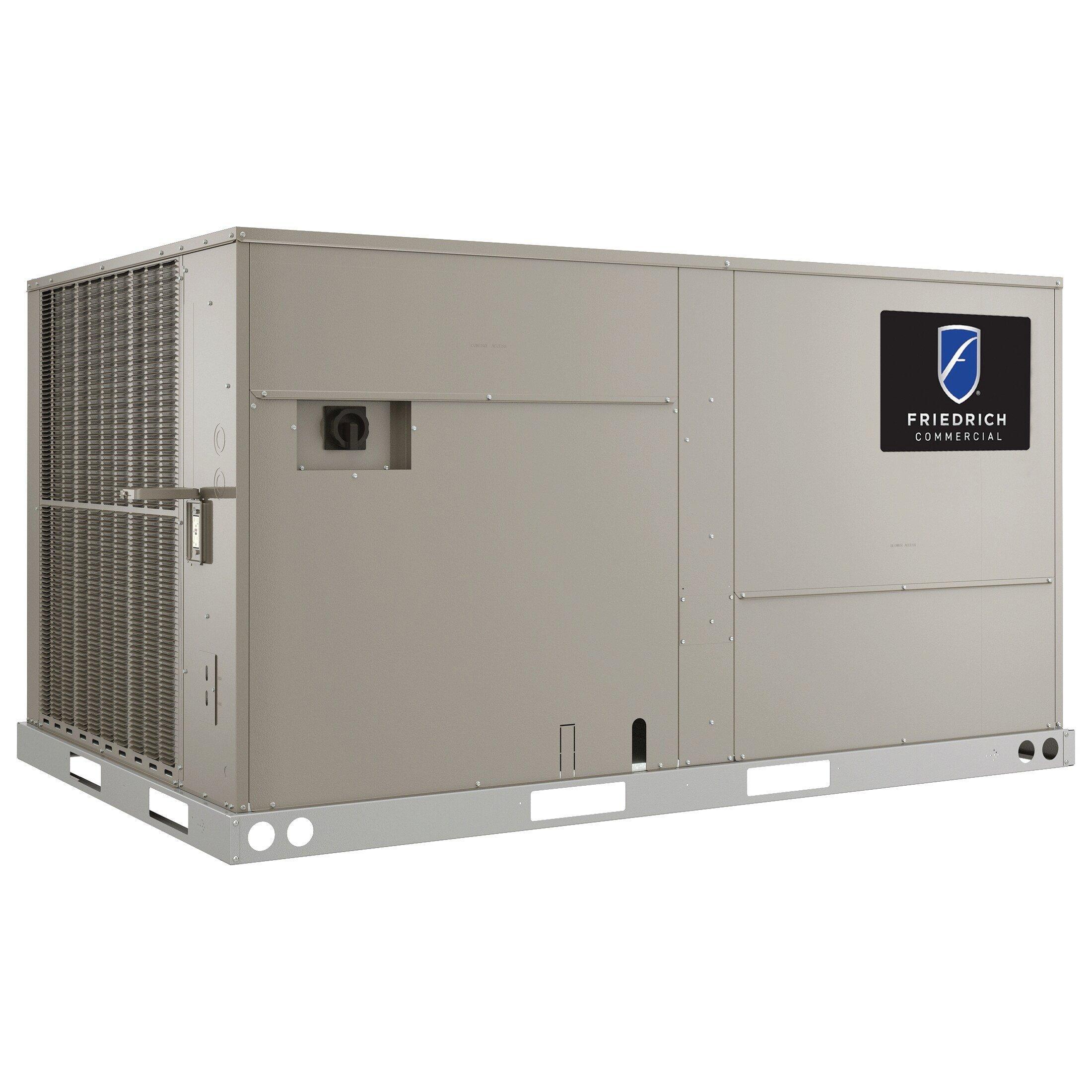

10 Ton - Commercial Packaged Air Conditioner - 208/230V - 3 Phase - R-410A
Friedrich Air Conditioning
RACDZT Series 10 Ton - Commercial Packaged Air Conditioner - 208/230V - 3 Phase - R-410A
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Friedrich Air Conditioning
RACDZT Series
10 Ton - Commercial Packaged Air Conditioner - 208/230V - 3 Phase - R-410A
RACDZT120ACG000AA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Factory charged with R-410A HFC refrigerant
- Wired and run tested
- Scroll compressor with internal line break overload and high-pressure protection
- Convertible airflow - vertical down flow or horizontal side flow
- Forkable base rails for easy handling and lifting
- Cooling operation up to 125 Deg F ambient
- Microchannel evaporator and condenser coil
- PlusOne® ServiceSmart package includes quick-change flex-fit
- Model RACDZT have two stage compressor
Dimensions & Measurements
CFM
8500 ft3/min
Depth
59-1/2 in
Height
50 in
Max CFM
8500 cfm
Tonnage
10 Ton
Weight
791 lb
Width
90-1/8 in
Characteristics & Features
A2L Compatible
No
Blower Type
Direct Drive
Coil Type
Micro-channel
Collection
RACDZT Series
Compressor Type
Scroll
Factory Std. Refrigerant Charge
136 oz
IEER Range
14.0 - 99.9
Material
Galvanized Steel
Number of Condenser Fan Motors
2
Refrigerant
R-410A
Refrigeration Control Type
TXV
Electrical & Operational Information
BTU
118000
BTU Cooling Rating
118000 Btu/h
Compressor Stages
Two Stage
Decibel Rating (dB)
88 dB
EER
11.2
Horsepower
0.33 hp
IEER
14.8
Phase
Three Phase
RPM
1725
Volts
208/230V
Watts
10.49 kW
Warranty & Product Information
Application
Commercial
CEC Compliant
For Sale in CA
Type
FRACDZT120ACG000AA
