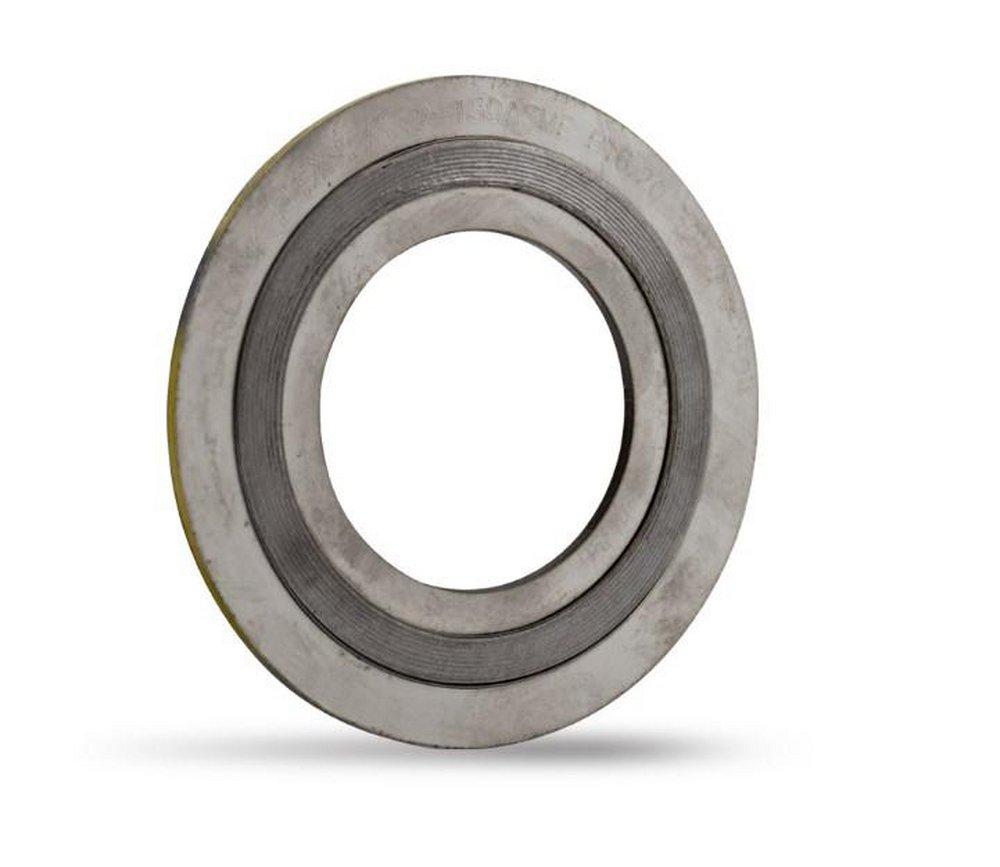

Spiral Wound Gasket for 1 1/2 in. ASME B16.5 Class 9-1500 Flange, 304/304L Stainless Steel Winding, Flexible Graphite Filler, Carbon Steel Outer Ring, 304/304L Stainless Steel Inner Ring, Import
Garlock
FLEXSEAL®RWI Spiral Wound Gasket for 1 1/2 in. ASME B16.5 Class 9-1500 Flange, 304/304L Stainless Steel Winding, Flexible Graphite Filler, Carbon Steel Outer Ring, 304/304L Stainless Steel Inner Ring, Import
Unavailable
All Sizes
Purchase history
Garlock
FLEXSEAL®RWI
Spiral Wound Gasket for 1 1/2 in. ASME B16.5 Class 9-1500 Flange, 304/304L Stainless Steel Winding, Flexible Graphite Filler, Carbon Steel Outer Ring, 304/304L Stainless Steel Inner Ring, Import
P0000051001515
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The FLEXSEAL® RWI features an inner ring, spiral winding, filler material, and a centering ring for use in higher pressure applications
- Durable, easy installation and removal
- Seals pressures to flange ratings, in accordance to ASME B16.5 and 16.47
- Suited to temperatures from cryogenic to 2000°F / 1093°C depending on metal and filler material
- Guide ring simplifies centering of sealing element on the flange face
- Suitable for raised face flanges up to class 2500# flanges
- Inner rings are provided standard for ASME B16.20 unless otherwise specified by the customer
- Inner ring can help shield sealing elements from erosion caused by abrasive media
Documents
Dimensions & Measurements
Fits Pipe Size
1-1/2 in
Pressure Class
9-1500
Thickness
0.175 in
Characteristics & Features
Collection
FLEXSEAL®RWI
Color Finish Category
Silver Tones
Color Finish Name
Silver with Grey Stripe
Fitting Type
Spiral Wound Gasket
Material Type
304/304L, Flexible Graphite, CS
Electrical & Operational Information
Maximum Temperature
850
Minimum Temperature
-40
Warranty & Product Information
ASME
ASME B16.20, ASME B16.5
NSF Certified
No
Origin
Global
