Concealed Dual Flush Toilet Carrier System 1.6/0.8 GPF
This product has been replaced by
Geberit DuoFix In-Wall Closet Carrier with Sigma Concealed Tank for 2X6 Construction
Manufacturer Part #G111335007
Manufacturer Part #G111335007
Geberit
Sigma Concealed Dual Flush Toilet Carrier System 1.6/0.8 GPF
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 18Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Geberit
Sigma
Concealed Dual Flush Toilet Carrier System 1.6/0.8 GPF
111.335.00.5
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Requires compatible wall-hung toilet bowl to complete installation. See our Clean Design brochure for a list of compatible bowls.
- Design freedom – choose a toilet bowl from any leading ceramic manufacturer; pair with stylish Sigma series flush actuators or compatible flush buttons
- Easy cleaning – clean the entire floor with a damp mop, no bending or kneeling
- Improved accessibility – requires less space than a standard toilet, enhancing safety and comfort; adjustable bowl height meets personal preference or ADA guidelines
- Water savings – built-in dual-flush, 1.6 / 0.8 GPF or 1.28 / 0.8 GPF saves thousands of gallons every year
- Superior function – engineered Geberit fill and flush valves eliminate problematic chains and flappers that corrode and fail

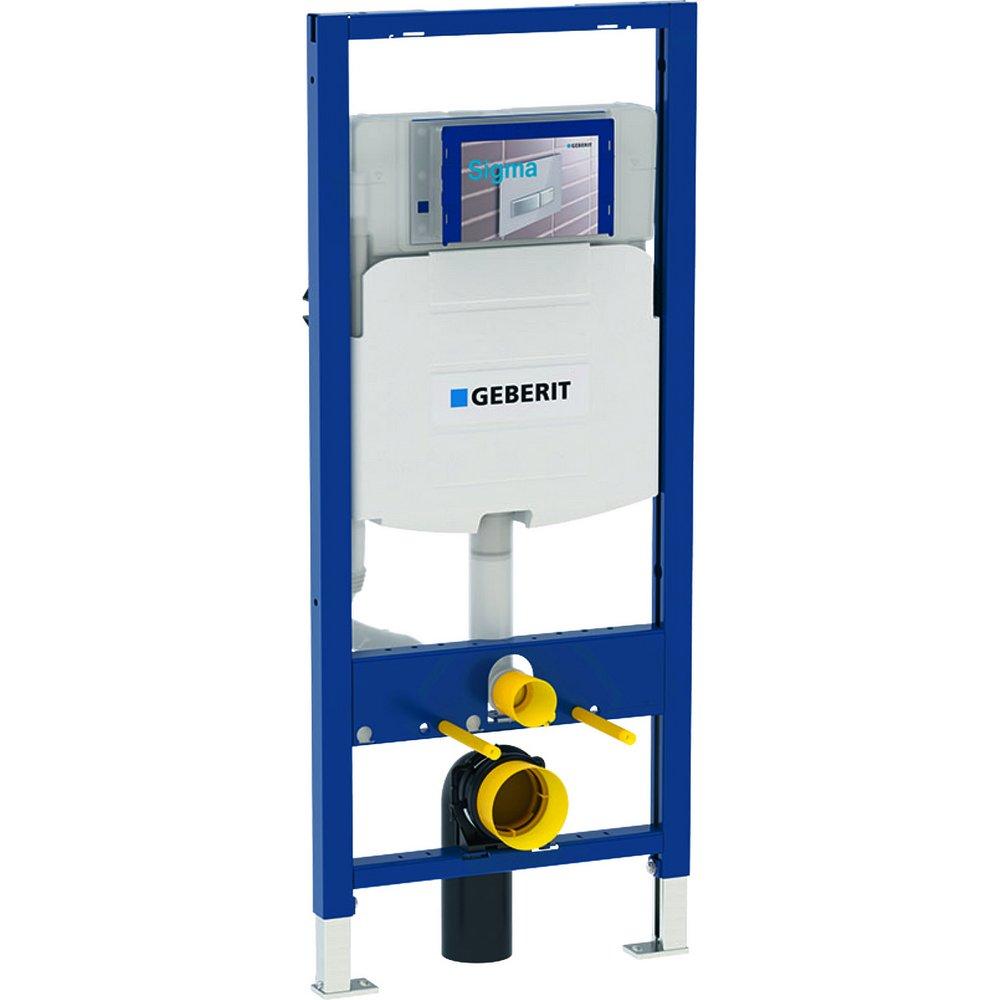

- Includes Geberit Duofix carrier frame with Sigma concealed tank, water supply stop, drainage elbow, fill and flush valves pre-installed; mounting hardware
- Pair with stylish Sigma series flush actuators or compatible flush buttons (order separately)
- See our Clean Design brochure or use the EPA WaterSense Product Search to find water saving EPA WaterSense combinations with Geberit
- For installation in wood or steel stud walls, minimum 5-1/2 in depth
Product Information
-
ADA Compliant
Dimensions & Measurements
Depth
5-1/2 in
Flow Rate
1.6 gpf
Length
47-1/4 in
Width
19-3/4 in
Characteristics & Features
Adjustable
Yes
Brand Model Compatibility
Geberit Sigma flush plates
Collection
Sigma
Installation Type
Wall Mount
Material
Stainless Steel, Plastic
Material Type
316 SS, HDPE
Number of Handles
No Handle
Electrical & Operational Information
Automatic Shut-Off
Yes
Maximum Temperature
65
Warranty & Product Information
ADA Compliant
Yes
ANSI
ANSI A117.1
Application
Residential, Commercial
ASME
ASME A112.19.2, ASME A112.19.5, ASME A112.19.14, ASME A112.6.2
BAA Compliant
No
CSA Certified
CSA B45.5, CSA B125.3, CSA B45.15
Product Type
Carrier Frame
UL Listed
No
WaterSense Labeled
Yes
UPC
020535449976
