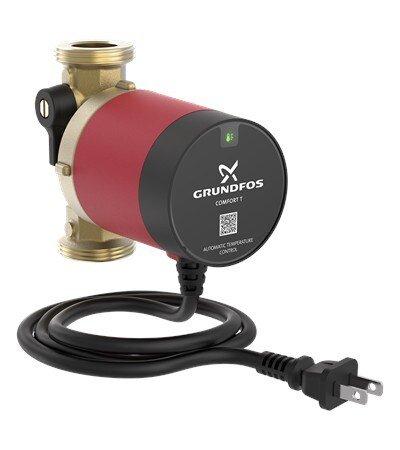

10-16 T BU/LC 115/230V Brass Circulator Pump
Grundfos
10-16 T BU/LC 115/230V Brass Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 120Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Grundfos
10-16 T BU/LC 115/230V Brass Circulator Pump
92957794
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Robust design of spherical rotor with single-bearing system
- Easy installation with included isolating valve, check valve and line cord for electrical connection
- Multiple control modes available: temperature, timer and AUTOADAPT
- Low power consumption and silent operation
- Due to low operating flow, pump is compliant with pipe manufacturers flow velocity limits - recommendations, for 1/2 in and 3/4 in copper or PEX pipes
- Drinking-water approved and meets unlimited water hardness requirement
- Easy to clean from lime and foreign deposits by removing pump head
- Dry-running protection to prevent failure if system runs out of water
- Pump head designed to fit all brass pump housings of the same design from different brands (LAING, GOULDS, Bell & Gossett)
- Multiple installation positions allowed, even pump head pointing downwards
Documents
Dimensions & Measurements
Flow Rate
1.45 gpm
Height
3-47/50 in
Length
7-87/100 in
Maximum Feet of Head
5.25
Pressure - Maximum
145.04 psi
Weight
3.4 lb
Characteristics & Features
Connection Type
NPSM
Pump Body Material
Brass
Pump Phase
1
Electrical & Operational Information
AMP
0.1
Maximum Temperature
180
Minimum Temperature
36
Volts
115/230V
Watts
6 W
Warranty & Product Information
Origin
Domestic
Product Type
Circulator Pump
Type
G92957794
UL Listed
Yes
